9635010
Official DistributorBy Rittal
SKU
RIT9635010
Weight
1.377 kg
Series Board RiLine Compact
SV Board, 125 A, 690 V (AC). 600 V (DC), 3-pole, WHD: 405x160x45,1 mm
Supply includes
Including integrated busbars

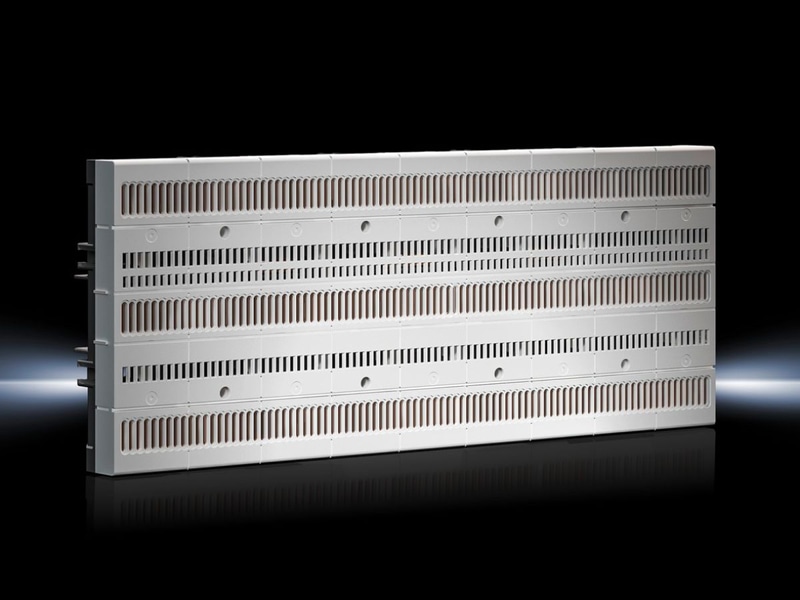

Board RiLine Compact
Board with integrated busbars.
Technical Specifications
Dimensions
| Width | 405 mm |
| Height | 160 mm |
| Depth | 45.1 mm |
| Function principle | Contact-protected busbar board for the safe accommodation and contacting of components, due to simple plug-in mounting |
| Material | Polyamide Polycarbonate E-Cu Fire protection corresponding to UL 94-V0 |
| Color | RAL 7035 |
| Protection category IP to IEC 60 529 | IP 20 |
| Rated current max. | 125 A |
| Rated operating voltage | 690 V (AC) |
| Rated current (UL) | 100 A |
| Max. pitch units @ 45 mm | 9 |
| Note | The technical data may vary for UL applications. |
| Standards | UL 508 |
| Rated operating voltage (max.) UL | 600 V AC |
| Weight/packaging unit | 1.377 kg |
| Copper weight (kg per piece) | 0.551 |
| Customs tariff number | 85469010 |
| EAN | 4028177817401 |
| ETIM 7.0 | EC001522 |
| ECLASS 8.0 | 27370303 |
Why Proax for Rittal 9635010?
Proax is an authorized distributor of Rittal 9635010 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
