9635372
Official DistributorBy Rittal
SKU
RIT9635372
Weight
0.372 kg
Series Component Adapters 1-pole

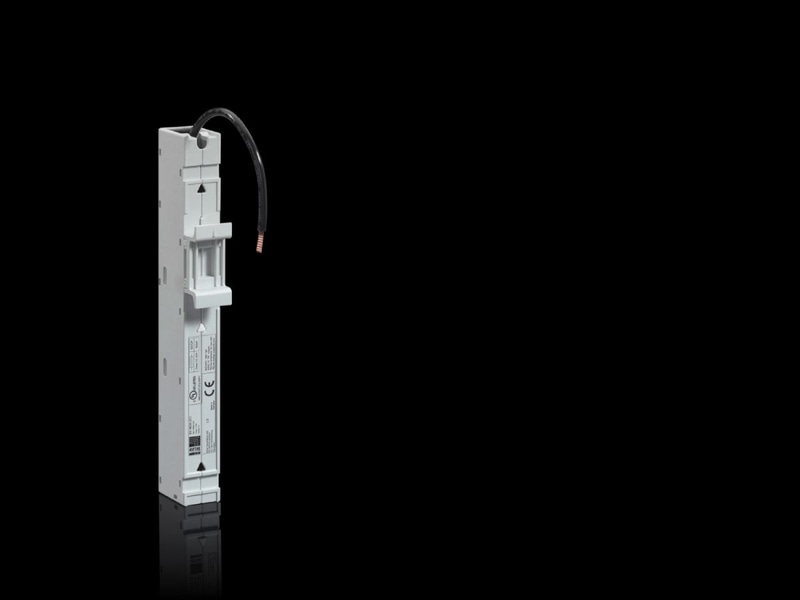

SV component adaptor 16 A, 690 V (AC), 1-pole (variant L2), connection cable AWG 14, WH: 18 x 160 mm
Component Adapters 1-pole
For assembly of switchgear and protective devices.
Technical Specifications
Dimensions
| Width | 18 mm |
| Height | 160 mm |
| Depth | 35 mm |
| Version | L2 |
| Function principle | For mechanical attachment and direct contacting of electrical equipment on the board |
| Material | Polyamide Fire behavior corresponding to UL 94 |
| Color | RAL 7035 |
| Note | Different adapter designs are required depending on the desired phase connection |
| Rated current max. | 16 A |
| Rated operating voltage | 690 V (AC), 1~ |
| Number of Poles | 1-pole |
| Connection cables (AWG) | AWG 14 |
| Length of connection cable | 100 mm |
| Support rails Qty/height | 1 / 10 mm |
| Support rail type | Fixed |
| Packaging unit | 6 pc(s). |
| Weight/packaging unit | 0.372 kg |
| Copper weight (kg per piece) | 0.008 |
| Customs tariff number | 85369095 |
| EAN | 4028177934580 |
| ETIM 7.0 | EC001531 |
| ECLASS 8.0 | 27370304 |
