Phoenix Contact 3270148
AllConnectorsTerminal blocksPush-in connection

3270148

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX3270148
MPN

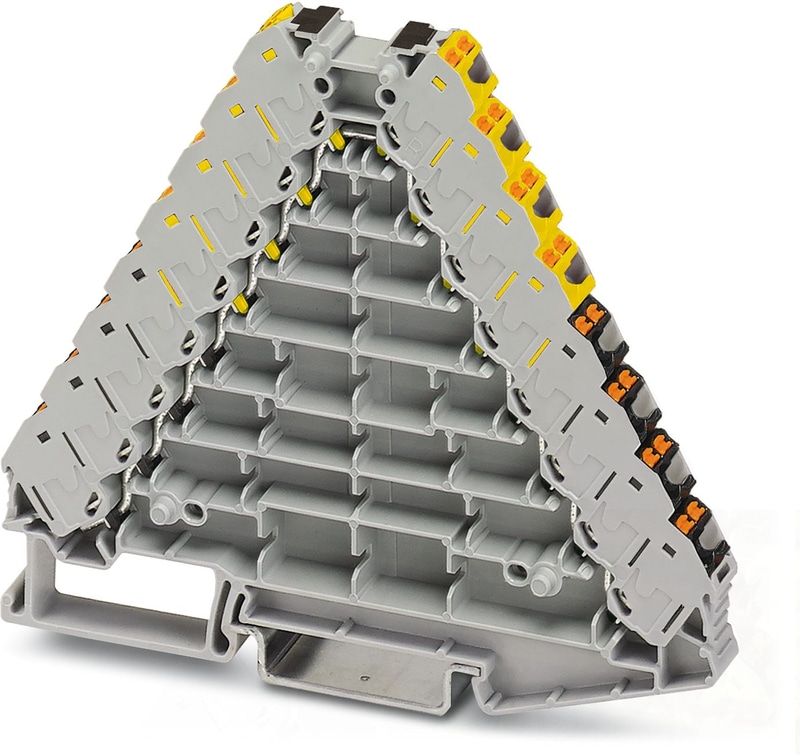

PTRV 8-FE /YEBK
Weight
0.033 kg
Series PTRV

PTRV 8-FE /YEBK - Potential distributors

Potential distributors, nom. voltage: 250 V, nominal current: 17.5 A, connection method: Push-in connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/15, color: gray, color of connection elements: yellow, black

  • Potential distributor in black-yellow version for marking the functional ground
  • Tool-free wiring in a confined space thanks to compact size
  • Individual color assignment of cable and terminal point to ensure error-free, safe operation
  • High contact quality thanks to push-in technology as a replacement for Wire-Wrap®, TERMI-POINT®, etc.
  • The 2.3 mm test pick-off enables testing between the conductors with commercially available test probes
Technical Specifications

Product properties

Number of Positions2
Number of Connections32
Number of rows8
Potentials1

Insulation characteristics

Overvoltage categoryIII

Electrical properties

Rated surge voltage4 kV
Maximum power dissipation for nominal condition0.56 W

Connection data

Number of connections per level4
Nominal cross section1.5 mm²

1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level

Stripping length8 mm ... 10 mm
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid0.14 mm² ... 2.5 mm²
Cross section AWG26 ... 14 (converted acc. to IEC)
Conductor cross section flexible0.14 mm² ... 1.5 mm²
Conductor cross section, flexible [AWG]26 ... 16 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.14 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.14 mm² ... 1.5 mm²
Nominal Current17.5 A
Maximum Load Current20 A (in case of a 2.5 mm² conductor cross section, the maximum load current must not be exceeded by the total current of all connected conductors.)
Nominal Voltage250 V
Nominal cross section1.5 mm²

1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level Connection cross sections directly pluggable

Conductor cross section rigid0.34 mm² ... 2.5 mm²
Conductor cross section, rigid [AWG]20 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.34 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.34 mm² ... 1.5 mm²

Dimensions

Width8.3 mm
Height100 mm
Depth on NS 35/7,587.5 mm
Depth on NS 35/1595 mm

Material specifications

Colorgray
Color of connection elementsyellow (4x top)
Color of connection elementsblack (4x bottom)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed

Surge voltage test

Test voltage setpoint4.8 kV
ResultTest passed

Temperature-rise test

Requirement temperature-rise testIncrease in temperature ≤ 45 K
ResultTest passed
Short-time withstand current 1.5 mm²0.18 kA
Short-time withstand current 2.5 mm²0.3 kA
ResultTest passed

Power-frequency withstand voltage

Test voltage setpoint1.5 kV
ResultTest passed

Mechanical data

Open side panelYes

Mechanical strength

ResultTest passed

Attachment on the carrier

DIN rail/fixing supportNS 35
Test force setpoint1 N
ResultTest passed

Test for conductor damage and slackening

Rotation speed10 rpm
Revolutions135
Conductor cross section/weight0.14 mm² / 0.2 kg
Conductor cross section/weight1.5 mm² / 0.4 kg
Conductor cross section/weight2.5 mm² / 0.7 kg
ResultTest passed

Aging

Temperature cycles192
ResultTest passed

Needle-flame test

Time of exposure30 s
ResultTest passed

Oscillation/broadband noise

SpecificationDIN EN 50155 (VDE 0115-200):2008-03
SpectrumService life test category 2, bogie-mounted
Frequencyf1 = 5 Hz to f2 = 250 Hz
ASD level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed

Shocks

SpecificationDIN EN 50155 (VDE 0115-200):2008-03
Pulse shapeHalf-sine
Acceleration30g
Shock duration18 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed

Ambient conditions

Ambient Temperature (Operation)-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (storage/transport)30 % ... 70 %

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1

Mounting

Mounting TypeNS 35/7,5
Mounting TypeNS 35/15
Accessories
  • Phoenix Contact3270166
    3270166
    DP-PTRV 8 - Spacer plate, depth: 86 mm, width: 8.3 mm, height: 100 mm, color: gray
  • Phoenix Contact3270167
    3270167
    CDC-PTRV - Retaining bracket, via four PTRV single modules, pitch: 8.3 mm, depth: 71.5 mm, width: 35.6 mm, height: 71.5 mm, color: gray
  • Phoenix Contact3208090
    3208090
    PT-IL - Operating decal for the push-in Technology
  • Phoenix Contact1204504
    1204504
    Screwdriver - SZF 0-0,4X2,5
  • Phoenix Contact1200135
    1200135
    Actuation tool - ST-BW 0
  • Phoenix Contact0201647
    0201647
    Reducing plug - RPS
  • Phoenix Contact0803444
    0803444
    Zack marker strip - ZB 8,3:UNBEDRUCKT
  • Phoenix Contact0803468
    0803468
    0803468 -
  • Phoenix Contact0803470
    0803470
    Marker for terminal blocks - TM-PTRV 8,QR:8-1
  • Phoenix Contact0803471
    0803471
    Marker for terminal blocks - TM-PTRV 8,QR:A-H
  • Phoenix Contact0803473
    0803473
    Marker for terminal blocks - TM-PTRV 8,QR:H-A
  • Phoenix Contact3270154
    3270154
    End cover, depth: 80.8 mm, width: 3.8 mm, height: 100 mm, color: white
  • Phoenix Contact3270155
    3270155
    D-PTRV 8 WH 1-8 - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
  • Phoenix Contact3270240
    3270240
    D-PTRV 8 WH 1-8 LGS - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
  • Phoenix Contact3270242
    3270242
    D-PTRV 8 WH 8-1 - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
  • Phoenix Contact3270244
    3270244
    D-PTRV 8 WH 8-1 LGS - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
  • Phoenix Contact3270228
    3270228
    D-PTRV 8 WH 1-16 - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
  • Phoenix Contact3270229
    3270229
    D-PTRV 8 WH 1-16 LGS - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
  • Phoenix Contact3270211
    3270211
    D-PTRV 8 WH 9-16 - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
  • Phoenix Contact3270212
    3270212
    D-PTRV 8 WH 9-16 LGS - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
  • Phoenix Contact3270213
    3270213
    D-PTRV 8 WH 17-24 - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
  • Phoenix Contact3270214
    3270214
    D-PTRV 8 WH 17-24 LGS - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
  • Phoenix Contact3270215
    3270215
    D-PTRV 8 WH 25-32 - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
  • Phoenix Contact3270216
    3270216
    D-PTRV 8 WH 25-32 LGS - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
  • Phoenix Contact3270156
    3270156
    D-PTRV 8 WH A-H - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
  • Phoenix Contact3270241
    3270241
    D-PTRV 8 WH A-H LGS - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
  • Phoenix Contact3270243
    3270243
    D-PTRV 8 WH H-A - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
  • Phoenix Contact3270245
    3270245
    D-PTRV 8 WH H-A LGS - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
  • Phoenix Contact0801733
    0801733
    NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0801681
    0801681
    NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1204119
    1204119
    NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1204122
    1204122
    NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact0801704
    0801704
    NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206421
    1206421
    DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206434
    1206434
    NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact0801762
    0801762
    NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206560
    1206560
    NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
  • Phoenix Contact3022218
    3022218
    CLIPFIX 35 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
  • Phoenix Contact3022276
    3022276
    CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
  • Phoenix Contact0800886
    0800886
    E/NS 35 N - End clamp, width: 9.5 mm, color: gray
  • Phoenix Contact1201442
    1201442
    E/UK - End bracket, Mounting on a DIN rail NS 32 or NS 35, material: PA, color: gray
  • Phoenix Contact1201413
    1201413
    E/UK 1 - End clamps, for supporting the ends of double-level and three-level terminal blocks, width: 10 mm, color: gray
  • Phoenix Contact0201744
    0201744
    Test plugs - MPS-MT
  • Phoenix Contact0201663
    0201663
    MPS-IH WH - Insulating sleeve, color: white
  • Phoenix Contact0201676
    0201676
    MPS-IH RD - Insulating sleeve, color: red
  • Phoenix Contact0201689
    0201689
    MPS-IH BU - Insulating sleeve, color: blue
  • Phoenix Contact0201692
    0201692
    MPS-IH YE - Insulating sleeve, color: yellow
  • Phoenix Contact0201702
    0201702
    MPS-IH GN - Insulating sleeve, color: green
  • Phoenix Contact0201728
    0201728
    MPS-IH GY - Insulating sleeve, color: gray
  • Phoenix Contact0201731
    0201731
    MPS-IH BK - Insulating sleeve, color: black

Why Proax for Phoenix Contact 3270148?

Proax is an authorized distributor of Phoenix Contact 3270148 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size10
Recommended
  • Phoenix Contact3270149
    3270149
    PTRV 8-FE /BKYE - Potential distributors, nom. voltage: 250 V, nominal current: 17.5 A, connection method: Push-in connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/15, color: gray, color of connection elements: black, yellow
  • Phoenix Contact3270248
    3270248
    PTRV 8-PV /RD - Potential distributors, nom. voltage: 250 V, nominal current: 17.5 A, connection method: Push-in connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/15, color: gray, color of connection elements: red
  • Phoenix Contact3270142
    3270142
    PTRV 8-PV /BK - Potential distributors, nom. voltage: 250 V, nominal current: 17.5 A, connection method: Push-in connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/15, color: gray, color of connection elements: black
  • Phoenix Contact3270249
    3270249
    Potential distributors - PTRV 8-PV /BU
  • Phoenix Contact3270145
    3270145
    Potential distributors - PTRV 8-PV BU/BK
  • Phoenix Contact3270136
    3270136
    PTRV 8 BU/BU - Marshalling panel, nom. voltage: 250 V, nominal current: 8 A, connection method: Push-in connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/15, color: blue, color of connection elements: blue
  • Phoenix Contact3270135
    3270135
    PTRV 8 BU/RDWH - Marshalling panel, nom. voltage: 250 V, nominal current: 8 A, connection method: Push-in connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/15, color: blue, color of connection elements: red, white
  • Phoenix Contact1049773
    1049773
    PTRV 8 BU/VDE 0815 - Marshalling panel, nom. voltage: 250 V, nominal current: 8 A, connection method: Push-in connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/15, color: blue
  • Phoenix Contact3270134
    3270134
    PTRV 8 BU/WHRD - Marshalling panel, nom. voltage: 250 V, nominal current: 8 A, connection method: Push-in connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/15, color: blue, color of connection elements: white, red
  • Phoenix Contact3270232
    3270232
    PTRV 8 /GN - Marshalling panel, nom. voltage: 250 V, nominal current: 8 A, connection method: Push-in connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/15, color: gray, color of connection elements: green
  • Phoenix Contact1061722
    1061722
    PTRV 8 /BK - Marshalling panel, nom. voltage: 250 V, nominal current: 8 A, connection method: Push-in connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/15, color: gray, color of connection elements: black
  • Phoenix Contact3270140
    3270140
    PTRV 8 /GY
  • Phoenix Contact3270233
    3270233
    PTRV 8 /BU - Marshalling panel, nom. voltage: 250 V, nominal current: 8 A, connection method: Push-in connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/15, color: gray, color of connection elements: blue
  • Phoenix Contact3270231
    3270231
    PTRV 8 /RD - Marshalling panel, nom. voltage: 250 V, nominal current: 8 A, connection method: Push-in connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/15, color: gray, color of connection elements: red
  • Phoenix Contact3270137
    3270137
    Marshalling panel - PTRV 8 /RDWH
  • Phoenix Contact3270230
    3270230
    Marshalling panel - PTRV 8 /VDE 0815
  • Phoenix Contact3270250
    3270250
    Marshalling panel - PTRV 8 /VDE 0815-WHBK
  • Phoenix Contact1061721
    1061721
    Marshalling panel - PTRV 8 /WH
  • Phoenix Contact3270133
    3270133
    PTRV 8 /WHRD - Marshalling panel, nom. voltage: 250 V, nominal current: 8 A, connection method: Push-in connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/15, color: gray, color of connection elements: white, red
  • Phoenix Contact3270130
    3270130
    Potential distributors - PTRV 4-FE /YEBK
Sold in quantities of 10

Not in stock

Request lead time or order—we'll ensure quick delivery

Phoenix Contact Availability
