PTRV 8 /BK
Weight
0.037 kg
Series PTRV

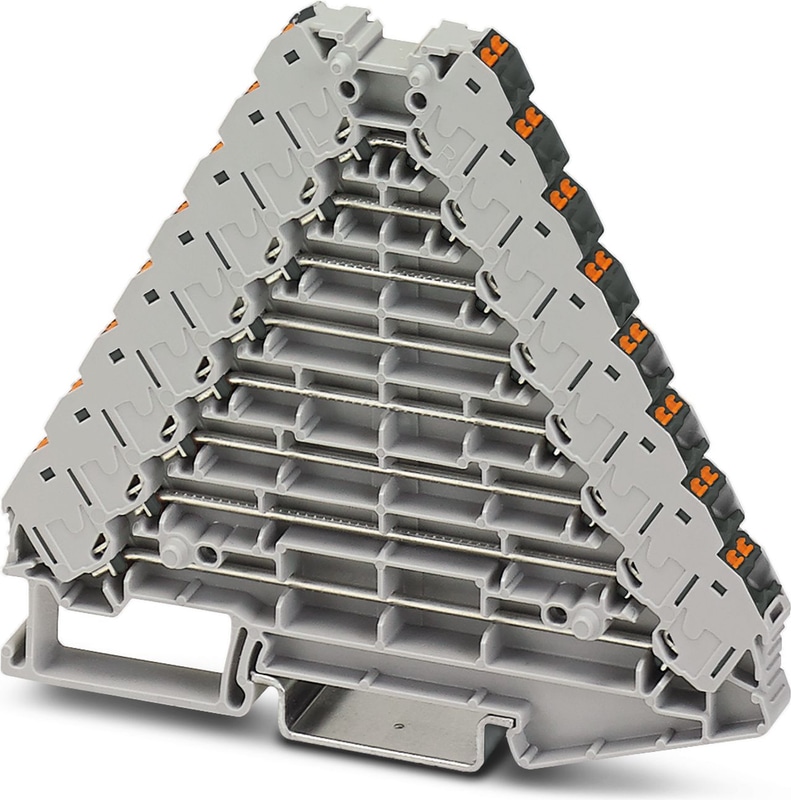

PTRV 8 /BK - Marshalling panel
Marshalling panel, nom. voltage: 250 V, nominal current: 8 A, connection method: Push-in connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/15, color: gray, color of connection elements: black
Technical Specifications
Product properties
| Number of Positions | 2 |
| Number of Connections | 32 |
| Number of rows | 8 |
| Potentials | 8 |
Insulation characteristics
| Overvoltage category | III |
Electrical properties
| Rated surge voltage | 4 kV |
| Maximum power dissipation for nominal condition | 0.56 W |
Connection data
| Number of connections per level | 4 |
| Nominal cross section | 1.5 mm² |
1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level
| Stripping length | 8 mm ... 10 mm |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Cross section AWG | 26 ... 14 (converted acc. to IEC) |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section, flexible [AWG] | 26 ... 16 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 1.5 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 1.5 mm² |
| Nominal Current | 8 A |
| Maximum Load Current | 8 A (with 1.5 mm² conductor cross section) |
| Nominal Voltage | 250 V |
| Nominal cross section | 1.5 mm² |
Dimensions
| Width | 8.3 mm |
| Height | 100 mm |
| Depth on NS 35/7,5 | 87.5 mm |
| Depth on NS 35/15 | 95 mm |
Material specifications
| Color | gray |
| Color of connection elements | black |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
Mechanical data
| Open side panel | Yes |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-1 |
Mounting
| Mounting Type | NS 35/7,5 |
| Mounting Type | NS 35/15 |
Accessories
CDC-PTRV - Retaining bracket, via four PTRV single modules, pitch: 8.3 mm, depth: 71.5 mm, width: 35.6 mm, height: 71.5 mm, color: gray
D-PTRV 8 WH 1-16 LGS - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white- D-PTRV 8 WH 9-16 LGS - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
D-PTRV 8 WH 17-24 LGS - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
D-PTRV 8 WH 25-32 LGS - End cover, depth: 80.8 mm, width: 2.2 mm, height: 100 mm, color: white
NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver- NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
CLIPFIX 35 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
E/UK 1 - End clamps, for supporting the ends of double-level and three-level terminal blocks, width: 10 mm, color: gray
