Phoenix Contact 3270137
AllConnectorsTerminal blocksPush-in connection
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
PTRV 8 /RDWH
Weight
0.038 kg
Series PTRV

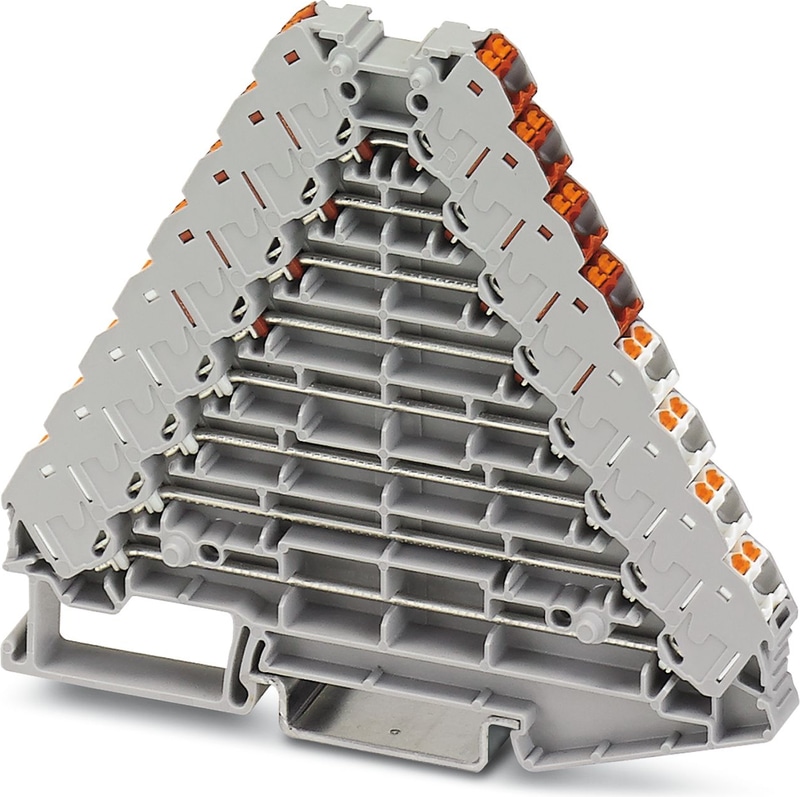

PTRV 8 /RDWH - Marshalling panel

Marshalling panel, nom. voltage: 250 V, nominal current: 8 A, connection method: Push-in connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 2.5 mm2, mounting: NS 35/7,5, NS 35/15, color: gray, color of connection elements: red, white

  • Tool-free wiring in a confined space thanks to compact size
  • Individual color assignment of cable and terminal point to ensure error-free, safe operation
  • High contact quality thanks to push-in technology as a replacement for Wire-Wrap®, TERMI-POINT®, etc.
  • The 2.3 mm test pick-off enables testing between the conductors with commercially available test probes
Technical Specifications

Product properties

Number of Positions2
Number of Connections32
Number of rows8
Potentials8

Insulation characteristics

Overvoltage categoryIII

Electrical properties

Rated surge voltage4 kV
Maximum power dissipation for nominal condition0.56 W

Connection data

Number of connections per level4
Nominal cross section1.5 mm²

1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level

Stripping length8 mm ... 10 mm
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid0.14 mm² ... 2.5 mm²
Cross section AWG26 ... 14 (converted acc. to IEC)
Conductor cross section flexible0.14 mm² ... 1.5 mm²
Conductor cross section, flexible [AWG]26 ... 16 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.14 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.14 mm² ... 1.5 mm²
Nominal Current8 A
Maximum Load Current8 A (with 1.5 mm² conductor cross section)
Nominal Voltage250 V
Nominal cross section1.5 mm²

1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level Connection cross sections directly pluggable

Conductor cross section rigid0.34 mm² ... 2.5 mm²
Conductor cross section, rigid [AWG]20 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.34 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.34 mm² ... 1.5 mm²

Dimensions

Width8.3 mm
Height100 mm
Depth on NS 35/7,587.5 mm
Depth on NS 35/1595 mm

Material specifications

Colorgray
Color of connection elementsred (4x top)
Color of connection elementswhite (4x bottom)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed

Surge voltage test

Test voltage setpoint4.8 kV
ResultTest passed

Temperature-rise test

Requirement temperature-rise testIncrease in temperature ≤ 45 K
ResultTest passed
Short-time withstand current 1.5 mm²0.18 kA
ResultTest passed

Power-frequency withstand voltage

Test voltage setpoint1.5 kV
ResultTest passed

Mechanical data

Open side panelYes

Mechanical strength

ResultTest passed

Attachment on the carrier

DIN rail/fixing supportNS 35
Test force setpoint1 N
ResultTest passed

Test for conductor damage and slackening

Rotation speed10 rpm
Revolutions135
Conductor cross section/weight0.14 mm² / 0.2 kg
Conductor cross section/weight1.5 mm² / 0.4 kg
Conductor cross section/weight2.5 mm² / 0.7 kg
ResultTest passed

Aging

Temperature cycles192
ResultTest passed

Needle-flame test

Time of exposure30 s
ResultTest passed

Oscillation/broadband noise

SpecificationDIN EN 50155 (VDE 0115-200):2008-03
SpectrumService life test category 2, bogie-mounted
Frequencyf1 = 5 Hz to f2 = 250 Hz
ASD level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed

Shocks

SpecificationDIN EN 50155 (VDE 0115-200):2008-03
Pulse shapeHalf-sine
Acceleration30g
Shock duration18 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed

Ambient conditions

Ambient Temperature (Operation)-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (storage/transport)30 % ... 70 %

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1

Mounting

Mounting TypeNS 35/7,5
Mounting TypeNS 35/15
