3213143

Official Distributor

By Phoenix Contact

SKU
PHX3213143
MPN
UKH 70/4X10 BU
Weight
0.141 kg
Series UKH

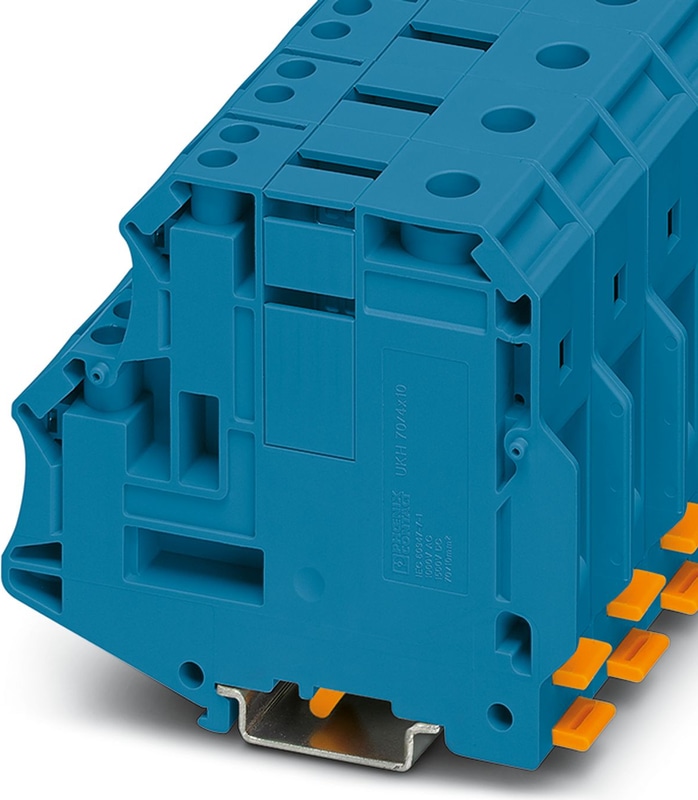

UKH 70/4X10 BU - Potential collective terminal

Potential collective terminal, nom. voltage: 1500 V, nominal current: 192 A, number of connections: 5, number of positions: 1, connection method: Screw connection, cross section: 16 mm2 - 95 mm2, Screw connection, cross section: 1.5 mm2 - 16 mm2, mounting type: NS 35/7,5, NS 35/15, NS 35/15-2,3, NS 32, color: blue

  • Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
  • Low contact resistance of the contact surface due to ribbing
  • Screw locking by means of spring-loaded elements in the clamping part
Technical Specifications

Product properties

Number of Positions1
Number of Connections5
Number of rows1
Potentials1

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Electrical properties

Rated surge voltage8 kV
Maximum power dissipation for nominal condition6.27 W

Connection data

Number of connections per level5
Nominal cross section70 mm²
Rated cross section AWG2/0

Level 1 above 1

Screw threadM8
Tightening torque8 ... 10 Nm
Stripping length24 mm
Internal cylindrical gageA11
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid16 mm² ... 95 mm²
Cross section AWG4 ... 3/0 (converted acc. to IEC)
Conductor cross section flexible25 mm² ... 70 mm²
Conductor cross section, flexible [AWG]2 ... 2/0 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)16 mm² ... 70 mm²
Flexible conductor cross section (ferrule with plastic sleeve)16 mm² ... 70 mm²
2 conductors with same cross section, solid16 mm² ... 25 mm²
2 conductors with the same cross-section AWG rigid4 ... 3 (converted acc. to IEC)
2 conductors with same cross section, flexible16 mm² ... 25 mm²
2 conductors with the same cross-section AWG flexible4 ... 3 (converted acc. to IEC)
2 conductors with same cross section, flexible, with ferrule without plastic sleeve16 mm² ... 25 mm²
Nominal Current192 A
Maximum Load Current192 A (in case of a 70 mm² conductor cross section, the maximum load current must not be exceeded by the total current of all connected conductors.)
Nominal Voltage1500 V DC
Nominal Voltage1000 V AC

Level 1+2+3+4 bottom

Screw threadM4
Tightening torque1.4 ... 1.5 Nm
Stripping length10 mm
Internal cylindrical gageA5
Conductor cross section rigid1.5 mm² ... 16 mm²
Cross section AWG16 ... 6 (converted acc. to IEC)
Conductor cross section flexible1.5 mm² ... 10 mm²
Conductor cross section, flexible [AWG]16 ... 6 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)1.5 mm² ... 10 mm²
Flexible conductor cross section (ferrule with plastic sleeve)1.5 mm² ... 6 mm²
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve)1.5 mm² ... 6 mm²
2 conductors with same cross section, solid1.5 mm² ... 2.5 mm²
2 conductors with the same cross-section AWG rigid16 ... 14 (converted acc. to IEC)
2 conductors with same cross section, flexible1.5 mm² ... 2.5 mm²
2 conductors with the same cross-section AWG flexible16 ... 14 (converted acc. to IEC)
2 conductors with same cross section, flexible, with ferrule without plastic sleeve1.5 mm² ... 2.5 mm²
Nominal Current57 A
Nominal Voltage1500 V DC
Nominal Voltage1000 V AC

Dimensions

Width20.3 mm
Height88.5 mm
Depth79.4 mm
Depth on NS 3285 mm
Depth on NS 35/7,580 mm
Depth on NS 35/1587.5 mm

Material specifications

Colorblue
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed

Mechanical data

Open side panelNo

Ambient conditions

Ambient Temperature (Operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1

Mounting

Mounting TypeNS 35/7,5
Mounting TypeNS 35/15
Mounting TypeNS 35/15-2,3
Mounting TypeNS 32
Accessories
