Official DistributorSKU
MPN
UKH 50 EP
Weight
0.005 kg
This product is Not Cancellable/Not Returnable
Series UKH

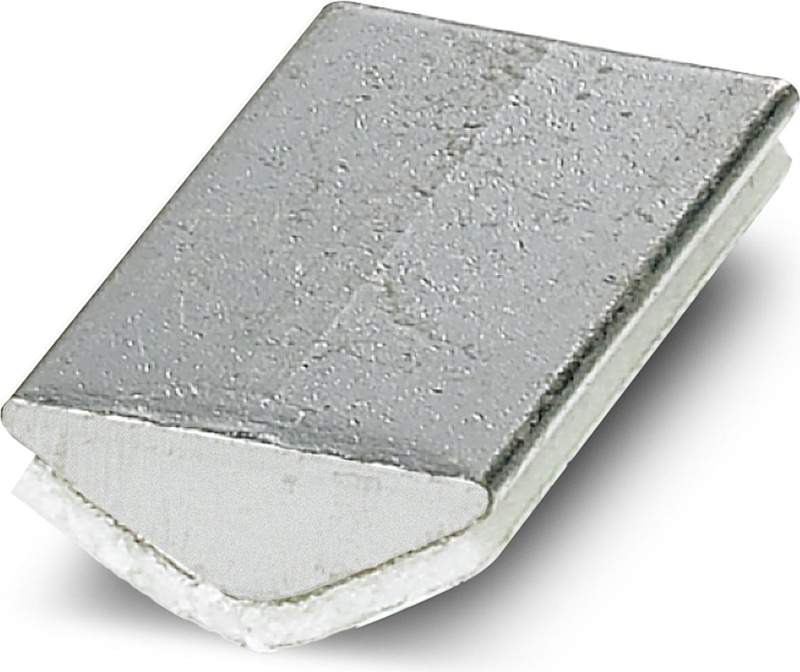

UKH 50 EP - Insertion profile
Insertion profile, color: silver
Technical Specifications
Material specifications
| Color | silver |
| Material | Metal |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Why Proax for Phoenix Contact 3009228?
Proax is an authorized distributor of Phoenix Contact 3009228 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
