Phoenix Contact 3247062
for direct mounting
AllConnectorsTerminal blocksScrew connection
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
UKH 50-F BU
Weight
0.131 kg
Series UKH

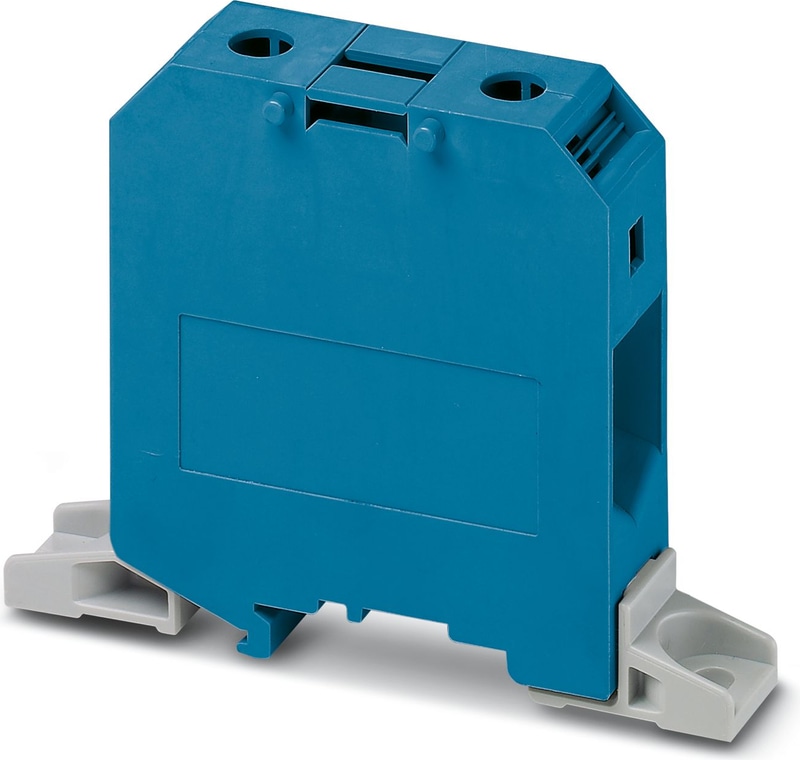

UKH 50-F BU - High-current terminal block

High-current terminal block, nom. voltage: 1000 V, nominal current: 150 A, number of connections: 2, number of positions: 1, connection method: Screw connection, Rated cross section: 50 mm2, cross section: 16 mm2 - 70 mm2, mounting type: direct screw connection, color: blue

  • Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
  • Screw locking by means of spring-loaded elements in the clamping part
  • Low contact resistance of the contact surface due to ribbing
Technical Specifications

Product properties

Number of Positions1
Number of Connections2
Number of rows1
Potentials1

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Electrical properties

Rated surge voltage8 kV
Maximum power dissipation for nominal condition4.73 W

Connection data

Number of connections per level2
Nominal cross section50 mm²
Screw threadM6
Tightening torque6 ... 8 Nm
Stripping length24 mm
Internal cylindrical gageB10
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid16 mm² ... 70 mm²
Cross section AWG4 ... 2/0 (converted acc. to IEC)
Conductor cross section flexible25 mm² ... 70 mm²
Conductor cross section, flexible [AWG]2 ... 2/0 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)25 mm² ... 50 mm²
Flexible conductor cross section (ferrule with plastic sleeve)25 mm² ... 50 mm²
2 conductors with same cross section, solid10 mm² ... 16 mm²
2 conductors with same cross section, flexible10 mm² ... 16 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve10 mm² ... 16 mm²
Nominal Current150 A
Maximum Load Current150 A (with 50 mm² conductor cross section)
Nominal Voltage1000 V
NoteNote: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area.
Nominal cross section50 mm²

Rated data (ATEX/IECEx)

Identification II 2 GD  Ex eb IIC Gb
Operating temperature range-60 °C ... 110 °C
Ex-certified accessories1205082 SZS 1,2X8,0 VDE
List of bridgesFixed bridge / FBI 2-20-EX / 0201113
List of bridgesFixed bridge / FBI 3-20-EX / 0201812
Bridge data130.5 A / 50 mm²
Ex temperature increase40 K (146.5 A / 50 mm²)
Rated voltage690 V
for bridging with bridge690 V
Rated Insulation Voltage630 V
Output(Permanent)

Ex level General

Rated current133 A
Maximum Load Current133 A
Contact resistance0.1 mΩ

Ex connection data General

Torque range6 Nm ... 8 Nm
Nominal cross section50 mm²
Rated cross section AWG1/0
Connection capacity rigid16 mm² ... 50 mm²
Connection capacity AWG6 ... 1/0
Connection capacity flexible25 mm² ... 50 mm²
Connection capacity AWG4 ... 1/0
2 conductors with same cross section, solid10 mm² ... 16 mm²
2 conductors with the same cross-section AWG rigid8 ... 6
2 conductors with same cross section, stranded10 mm² ... 16 mm²
2 conductors with the same cross-section AWG flexible8 ... 6

Dimensions

Width20 mm
Height75.5 mm
Depth76 mm
Hole diameter5.5 mm

Material specifications

Colorblue
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed

Surge voltage test

Test voltage setpoint9.8 kV
ResultTest passed

Temperature-rise test

Requirement temperature-rise testIncrease in temperature ≤ 45 K
ResultTest passed
Short-time withstand current 50 mm²6 kA
ResultTest passed

Power-frequency withstand voltage

Test voltage setpoint2.2 kV
ResultTest passed

Mechanical data

Open side panelNo

Mechanical strength

ResultTest passed

Attachment on the carrier

DIN rail/fixing supportNS 32/NS 35
Test force setpoint10 N
ResultTest passed

Test for conductor damage and slackening

Rotation speed10 (+/- 2) rpm
Revolutions135
Conductor cross section/weight16 mm² / 2.9 kg
Conductor cross section/weight50 mm² / 9.5 kg
Conductor cross section/weight70 mm²/10.4 kg
ResultTest passed

Needle-flame test

Time of exposure30 s
ResultTest passed

Oscillation/broadband noise

SpecificationDIN EN 50155 (VDE 0115-200):2022-06
SpectrumService life test category 2, bogie-mounted
Frequencyf1 = 5 Hz to f2 = 250 Hz
ASD level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed

Shocks

SpecificationDIN EN 50155 (VDE 0115-200):2022-06
Pulse shapeHalf-sine
Acceleration5g
Shock duration30 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed

Ambient conditions

Ambient Temperature (Operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1

Mounting

Mounting Typedirect screw connection
Accessories
  • Phoenix Contact3009228
    3009228
    Insertion profile - UKH 50 EP
  • Phoenix Contact3001763
    3001763
    Pick-off terminal block - AGK 10-UKH 50
  • Phoenix Contact1205082
    1205082
    Screwdriver - SZS 1,2X8,0 VDE
  • Phoenix Contact0811228
    0811228
    X-PEN 0,35 - Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm
  • Phoenix Contact1004513
    1004513
    Warning label - WS-2K
  • Phoenix Contact1004584
    1004584
    WS-4K - Adhesive warning plate, self-adhesive, black print: lightning flash with mixed verson - "Vorsicht Spannung - Attention Danger" size of label: 13 x 23.5 mm
  • Phoenix Contact0201346
    0201346
    Fixed bridge - FBI 2-20
  • Phoenix Contact0201317
    0201317
    Fixed bridge - FBI 3-20
  • Phoenix Contact0201113
    0201113
    Fixed bridge - FBI 2-20-EX
  • Phoenix Contact0201812
    0201812
    Fixed bridge - FBI 3-20-EX
  • Phoenix Contact1053001
    1053001
    Zack marker strip - ZB 10:UNBEDRUCKT
  • Phoenix Contact0824941
    0824941
    Zack marker strip - ZB 10 CUS
  • Phoenix Contact1053014
    1053014
    1053014 -
  • Phoenix Contact1053027
    1053027
    1053027 -
  • Phoenix Contact1053412
    1053412
    Marker for terminal blocks - ZB10,LGS:L1-N,PE
  • Phoenix Contact1053438
    1053438
    Marker for terminal blocks - ZB10,LGS:U-N
  • Phoenix Contact0818069
    0818069
    Marker for terminal blocks - UC-TM 10
  • Phoenix Contact0824605
    0824605
    Marker for terminal blocks - UC-TM 10 CUS
  • Phoenix Contact0829142
    0829142
    Marker for terminal blocks - UCT-TM 10
  • Phoenix Contact0816210
    0816210
    Marker for terminal blocks - TMT 10 R
