Phoenix Contact 3076280
AllConnectorsTerminal blocksBolt connection

3076280

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX3076280
MPN
RBO 8-3L/N/FE
Weight
0.794 kg
Series RBO

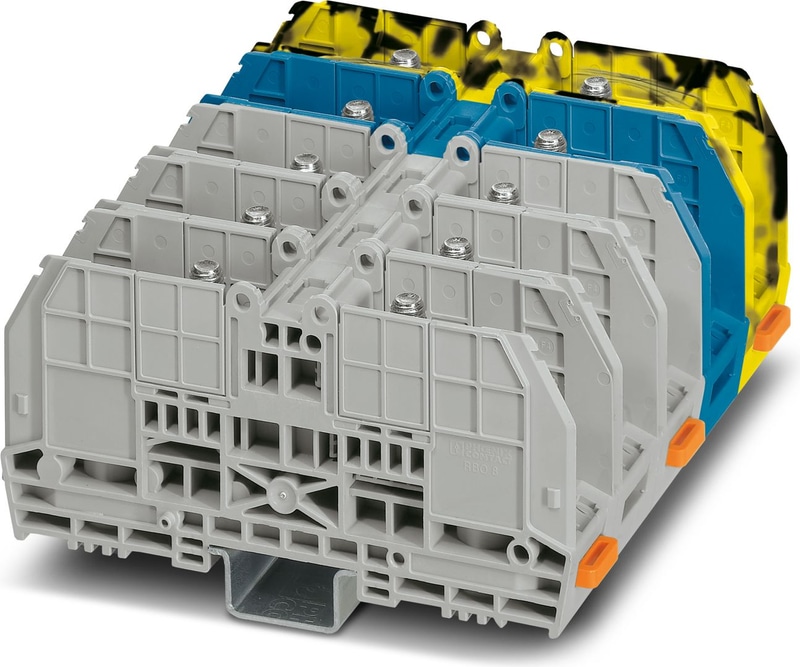

RBO 8-3L/N/FE - Bolt connection terminal block

Bolt connection terminal block, nom. voltage: 1000 V, nominal current: 192 A, number of connections: 10, number of positions: 5, connection method: Bolt connection, 1 level, Rated cross section: 70 mm2, mounting type: NS 35/7,5, NS 35/15, direct screw connection, color: gray/blue/black-yellow

  • Mounting on standard DIN rails or directly in control boxes
Technical Specifications

Product properties

Number of Positions5
Pitch29 mm
Number of Connections10
Number of rows1
Potentials5

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Electrical properties

Rated surge voltage8 kV
Maximum power dissipation for nominal condition6.27 W

Connection data

Number of connections per level10
Nominal cross section70 mm²

1 level

Connection in acc. with standardIEC 60947-7-1
Nominal Current192 A
Maximum Load Current192 A (in case of a 70 mm² conductor cross section, the maximum load current must not be exceeded by the total current of all connected conductors.)
Nominal Voltage1000 V
Nominal cross section70 mm²

Cable lug connection DIN 46234:1980-03

Connection in acc. with standardDIN 46234:1980-03
Cross section2.5 mm² ... 70 mm²
Cross section range AWG(converted acc. to IEC)
Hole diameter8.4 mm
Width22 mm
Bolt diameter8 mm
Screw threadM8
Tightening torque6 ... 12 Nm
Connection in acc. with standardDIN 46235:1983-07
Cross section16 mm² ... 70 mm²
Cross section range AWG(converted acc. to IEC)
Hole diameter8.4 mm
Width24 mm
Bolt diameter8 mm
Screw threadM8
Tightening torque6 ... 12 Nm
Connection in acc. with standardDIN 46237:1970-07
Cross section2.5 mm² ... 6 mm²
Cross section range AWG(converted acc. to IEC)
Hole diameter8.4 mm
Width14 mm
Bolt diameter8 mm
Screw threadM8
Tightening torque6 ... 12 Nm
Identification color of ring cable lugs : blue2.5 mm²
Identification color of ring cable lugs : yellow6 mm²

Dimensions

Width145 mm
Height136 mm
Depth on NS 35/7,567 mm
Depth on NS 35/1574.5 mm
Pitch29 mm

Material specifications

Colorgray/blue/black-yellow
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed

Mechanical data

Open side panelNo

Ambient conditions

Ambient Temperature (Operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1

Mounting

Mounting TypeNS 35/7,5
Mounting TypeNS 35/15
Mounting Typedirect screw connection
Accessories
  • Phoenix Contact0801353
    0801353
    0801353 -
  • Phoenix Contact3247967
    3247967
    HC-RBO 8 - Covering hood, depth: 46.7 mm, width: 28.8 mm, height: 85.6 mm, color: gray
  • Phoenix Contact3247969
    3247969
    HC-RBO 8 BU - Covering hood, depth: 46.7 mm, width: 28.8 mm, height: 85.6 mm, color: blue
  • Phoenix Contact3247968
    3247968
    HC-RBO 8-FE - Covering hood, depth: 46.7 mm, width: 28.8 mm, height: 85.6 mm, color: black/yellow
  • Phoenix Contact1209923
    1209923
    Tool - SHN 13
  • Phoenix Contact0800886
    0800886
    E/NS 35 N - End clamp, width: 9.5 mm, color: gray
  • Phoenix Contact3213179
    3213179
    RBO 8-VS 2 - Bridge, 2-pos.
  • Phoenix Contact3213182
    3213182
    RBO 8-VS 3 - Connection rail, number of positions: 3, color: silver
  • Phoenix Contact0801733
    0801733
    NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0801681
    0801681
    NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1204119
    1204119
    NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1204122
    1204122
    NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact0801704
    0801704
    NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206421
    1206421
    DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206434
    1206434
    NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact0801762
    0801762
    NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206560
    1206560
    NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
  • Phoenix Contact1201730
    1201730
    NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1201714
    1201714
    NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0806602
    0806602
    NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
  • Phoenix Contact1204135
    1204135
    NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1201756
    1201756
    NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206599
    1206599
    NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206586
    1206586
    NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1201895
    1201895
    NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206573
    1206573
    NS 35/15 CAP - DIN rail end piece, for DIN rail NS 35/15
  • Phoenix Contact1201798
    1201798
    NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
  • Phoenix Contact1053001
    1053001
    Zack marker strip - ZB 10:UNBEDRUCKT
  • Phoenix Contact0824941
    0824941
    Zack marker strip - ZB 10 CUS
  • Phoenix Contact1053014
    1053014
    1053014 -
  • Phoenix Contact1053027
    1053027
    1053027 -
  • Phoenix Contact1053412
    1053412
    Marker for terminal blocks - ZB10,LGS:L1-N,PE
  • Phoenix Contact1053438
    1053438
    Marker for terminal blocks - ZB10,LGS:U-N
  • Phoenix Contact0818069
    0818069
    Marker for terminal blocks - UC-TM 10
  • Phoenix Contact0824605
    0824605
    Marker for terminal blocks - UC-TM 10 CUS
  • Phoenix Contact0829142
    0829142
    Marker for terminal blocks - UCT-TM 10
  • Phoenix Contact0809997
    0809997
    Zack Marker strip, flat - ZBF10:UNBEDRUCKT
  • Phoenix Contact0810009
    0810009
    Zack Marker strip, flat - ZBF10,LGS:FORTL.ZAHLEN
  • Phoenix Contact0810025
    0810025
    Zack Marker strip, flat - ZBF10,QR:FORTL.ZAHLEN
  • Phoenix Contact0818124
    0818124
    Marker for terminal blocks - UC-TMF 10
  • Phoenix Contact0829204
    0829204
    Marker for terminal blocks - UCT-TMF 10
