Name: 3049974
Brand: Phoenix Contact
SKU: PHX3049974
Price: 18.1300 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

RTO 5-PE-TC

Weight

0.041 kg

Series RTO

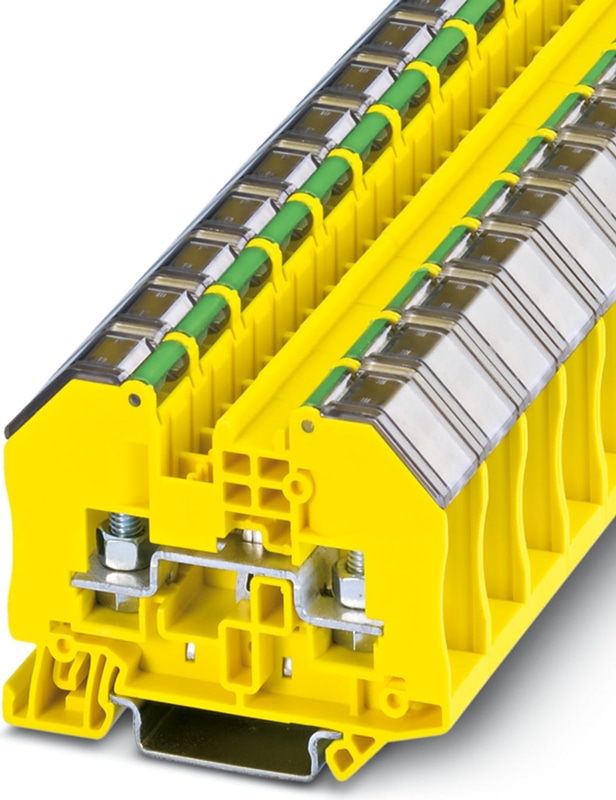

RTO 5-PE-TC - Ground terminal

Ground terminal block with bolt connection technology and transparent safety contact hood, cross section: 0.1 - 6 mm2, AWG: 26 - 10, width 16.3 mm, color: green-yellow

Low contact resistance
Corrosion-free terminal points
Another labeling option
Green-yellow housing

Notes

General

Note: the BE-RT... path extension is to be used for non-insulated cable lugs (see accessories).

Product properties

Number of Connections	2
Number of rows	1
Potentials	1

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	8 kV
Maximum power dissipation for nominal condition	1.31 W

Connection data

Grounding foot	Yes
Number of connections per level	2
Nominal cross section	6 mm²

1 level

Note	Please observe the current carrying capacity of the DIN rails.
Stripping length	The stripping length depends on the specification provided by the cable lug manufacturer.
Connection in acc. with standard	IEC 60947-7-2
Nominal Current	41 A
Maximum Load Current	41 A (with 6 mm² conductor connection)
Nominal Voltage	1000 V

Cable lug connection DIN 46234:1980-03

Connection in acc. with standard	DIN 46234:1980-03
Cross section	0.5 mm² ... 6 mm²
Cross section range AWG	20 ... 10 (converted acc. to IEC)
Hole diameter	5.3 mm
Width	10 mm
Bolt diameter	5 mm
Screw thread	M5
Tightening torque	2.5 ... 3 Nm
Connection in acc. with standard	DIN 46237:1970-07
Cross section	1 mm² ... 6 mm²
Cross section range AWG	16 ... 10 (converted acc. to IEC)
Hole diameter	5.3 mm
Width	10 mm
Bolt diameter	5 mm
Screw thread	M5
Tightening torque	2.5 ... 3 Nm
Identification color of ring cable lugs : red	1 mm²
Identification color of ring cable lugs : blue	2.5 mm²
Identification color of ring cable lugs : yellow	6 mm²

Dimensions

Width	16.3 mm
End cover width	2.2 mm
Height	66 mm
Depth on NS 35/7,5	51 mm
Depth on NS 35/15	58.5 mm

Material specifications

Color	green-yellow
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	130 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Mechanical data

Open side panel

Yes

Oscillation/broadband noise

Specification	DIN EN 50155 (VDE 0115-200):2018-05
Spectrum	Service life test category 2, bogie-mounted
Frequency	f1 = 5 Hz to f2 = 250 Hz
ASD level	6.12 (m/s²)²/Hz
Acceleration	3.12g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis

Shocks

Pulse shape	Half-sine
Acceleration	30g
Shock duration	18 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)

Ambient conditions

Ambient Temperature (Operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Standards and Regulations

Connection in acc. with standard

IEC 60947-7-2

Mounting

Mounting Type	NS 35/7,5
Mounting Type	NS 35/15

3049097
D-RT 3/5 - End cover, depth: 42.2 mm, width: 2.2 mm, height: 65 mm, color: gray
0706647
Partition plate - TPNS-UK
3049819
Path extension - BE-RT 3/5
1209868
Tool - SHN 8
3030284
FBS 2-8 - Plug-in bridge, pitch: 8.2 mm, number of positions: 2, color: red
3030297
FBS 3-8 - Plug-in bridge, pitch: 8.2 mm, number of positions: 3, color: red
3030307
FBS 4-8 - Plug-in bridge, pitch: 8.2 mm, number of positions: 4, color: red
3030310
FBS 5-8 - Plug-in bridge, pitch: 8.2 mm, number of positions: 5, color: red
3030323
FBS 10-8 - Plug-in bridge, pitch: 8.2 mm, number of positions: 10, color: red
3033802
Short-circuit connector - FBSRH 2-8
3033803
Short-circuit connector - FBSRH 3-8
3033804
Short-circuit connector - FBSRH 4-8
3033830
FBS 2-8 CT - Plug-in bridge, pitch: 8.2 mm, number of positions: 2, color: orange
3033831
FBS 3-8 CT - Plug-in bridge, pitch: 8.2 mm, number of positions: 3, color: orange
3033832
FBS 4-8 CT - Plug-in bridge, pitch: 8.2 mm, number of positions: 4, color: orange
3033833
FBS 10-8 CT - Plug-in bridge, pitch: 8.2 mm, number of positions: 10, color: orange
3032567
FBS 2-8 BU - Plug-in bridge, pitch: 8.2 mm, number of positions: 2, color: blue
3032570
FBS 3-8 BU - Plug-in bridge, pitch: 8.2 mm, number of positions: 3, color: blue
3032583
FBS 4-8 BU - Plug-in bridge, pitch: 8.2 mm, number of positions: 4, color: blue
3032596
Plug-in bridge, pitch: 8.2 mm, number of positions: 5, color: blue
3032677
Plug-in bridge, pitch: 8.2 mm, number of positions: 6, color: blue
3032606
FBS 10-8 BU - Plug-in bridge, pitch: 8.2 mm, number of positions: 10, color: blue
0801733
NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
0801681
NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1204119
NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1204122
NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
0801704
NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1206421
DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1206434
NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
0801762
NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
1206560
NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
1201730
NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1201714
NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
0806602
NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
1204135
NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1201756
NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1206599
NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1206586
NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1201895
NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
1206573
NS 35/15 CAP - DIN rail end piece, for DIN rail NS 35/15
1201798
NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
0827461
Zack marker strip - ZB 16:UNPRINTED
0827462
0827462 -
0819217
Marker for terminal blocks - UC-TM 16
0829146
Marker for terminal blocks - UCT-TM 16
0820222
Zack marker strip - ZB 16,3:UNPRINTED
0201744
Test plugs - MPS-MT
0201663
MPS-IH WH - Insulating sleeve, color: white
0201676
MPS-IH RD - Insulating sleeve, color: red
0201689
MPS-IH BU - Insulating sleeve, color: blue
0201692
MPS-IH YE - Insulating sleeve, color: yellow
0201702
MPS-IH GN - Insulating sleeve, color: green
0201728
MPS-IH GY - Insulating sleeve, color: gray
0201731
MPS-IH BK - Insulating sleeve, color: black
3032871
Test adapter - PAI-4-N GY
3031005
Test plugs - PS-8
3036741
Spacer plate - DP PS-8
3048564
Test plugs - PS-8/2,3MM RD
3022218
CLIPFIX 35 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
3022276
CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
0800886
E/NS 35 N - End clamp, width: 9.5 mm, color: gray
1201442
E/UK - End bracket, Mounting on a DIN rail NS 32 or NS 35, material: PA, color: gray
1201413
E/UK 1 - End clamps, for supporting the ends of double-level and three-level terminal blocks, width: 10 mm, color: gray
