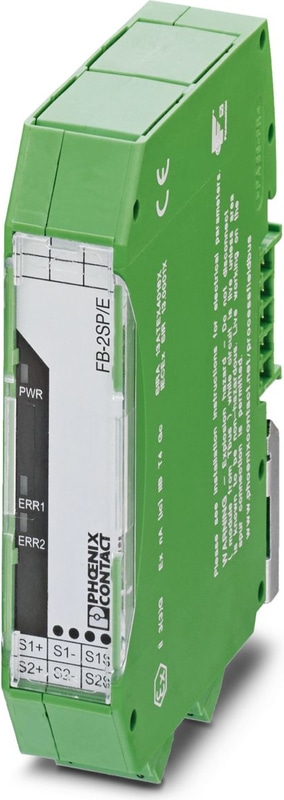

FB-2SP/E - Device coupler
Device coupler for Foundation Fieldbus and PROFIBUS PA with terminal connections for two spurs connected to fieldbus end devices
Technical Specifications
Utilization restriction
| CCCex note | Use in potentially explosive areas is not permitted in China. |
Supply
| Supply Voltage Range | 10.5 V DC ... 32 V DC (via FB-ET/E) |
| Max. current consumption | 3.5 mA (No-load) |
| Conductor cross section, flexible | 2.50 mm² ... 0.20 mm² |
| Conductor cross section, rigid | 2.50 mm² ... 0.20 mm² |
| Conductor cross section, flexible [AWG] | 24 ... 12 |
| Conductor cross section AWG | 24 ... 12 |
Safety data
| Inductance Li | 0 µH |
| Capacitance Ci | 0 nF |
| Max. output voltage Uo | Ui |
| Max. output current Io | 50 mA (per spur) |
| Max. output power Po | Uo x Io |
| IIC: Max. external inductivity Lo / Max. external capacitance Co | / 60 nF |
| IIC: Max. external inductivity Lo / Max. external capacitance Co | 250 µH |
Interfaces
| Signal | PROFIBUS |
| Signal | FOUNDATION Fieldbus |
Data: Foundation Fieldbus and PROFIBUS PA Segment
| Connection Method | Pluggable COMBICON screw connection for each spur |
| No. of channels | 2 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Termination resistor | via FB-ET/E |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
| Output nominal voltage | ≤ 32 V (each spur) |
| Maximum output current | 45 mA (per spur) |
Dimensions
| Width | 17.5 mm |
| Height | 89.7 mm |
| Depth | 70.4 mm |
Material specifications
| Color | green |
| Housing Material | PA 6.6-FR |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (depending on set rated current) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | < 95 % (non-condensing) |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Shock | 15g, 11 ms |
| Vibration (Operation) | 1g, 10 Hz ... 150 Hz |
Conformity/Approvals
| Fieldbus Foundation | FF-846 |
| EN | EN 61326, EN 60068-2-27, EN 60068-2-6, EN 60079-0, EN 60079-11, EN 60079-15 |
| NE | NAMUR NE 21 |
Ex data
| ATEX | Sira 14ATEX4018X; II 3(3)GEx nA [ic] IIC T4 Gc;Ex nA [ic] IIC T4 Gc, FISCO ic spurs |
| IECEx | IECEx SIR 14.0011X;Ex nA [ic] IIC T4 Gc;Ex nA [ic] IIC T4 Gc, FISCO ic spurs |
| CSA, USA/Canada | Class I, Div. 2, Groups A,B,C,DEx nL IIC T4 FNICO, Ex ic IIC T4 FISCO icEx nA [nL] IIC T4, Ex nA [ic] IIC T4Ex nA [nL] IIC T4 FNICO spurs, Ex nA [ic] IIC T4 FISCO ic spursClass I, Zone 2AEx nL IIC T4 FNICO, AEx ic IIC T4 FISCO icAEx nA [nL] IIC T4, AEx nA [ic] IIC T4AEx nA [nL] IIC T4 FNICO spurs, AEx nA [ic] IIC T4 FISCO ic spurs |
Standards
| Standards/regulations | IEC 60529, IEC 61158-2 |
| Standards/regulations | NE21 |
| Standards/regulations | EN 61326, EN 60068-2-27, EN 60068-2-6, EN 60079-0, EN 60079-11, EN 60079-15 |
| Standards/regulations | FF-846 |
Standards/regulations
| Standards/regulations | Ring wave noise immunity in acc. with IEC 61000-4-12 |
| Standards/regulations | Dry heat in acc. with IEC 61131-2 |
| Standards/regulations | Damp heat in acc. with IEC 61131-2 |
| Standards/regulations | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
| Standards/regulations | IEC 61158-2 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
Accessories
PT 4+F-BE - Base element for protective plug PT with protective circuit for a 4-wire floating signal circuit, gas-filled surge arrester between the connections 3-4 (GND) and 9-10, for mounting on NS 35/7.5 and NS35/15, housing width: 17.5 mm
FB-15-SS - Stainless steel field junction box with 15 ports for use in hazardous locations. Includes FB-ET trunk module, Plugtrab base with option for surge protection plug, and DIN rail space for up to 12 device couplers.
FB-9-SS - Stainless steel field junction box with 9 ports for use in hazardous locations. Includes FB-ET trunk module, Plugtrab base with option for surge protection plug, and DIN rail space for up to 6 device couplers.
