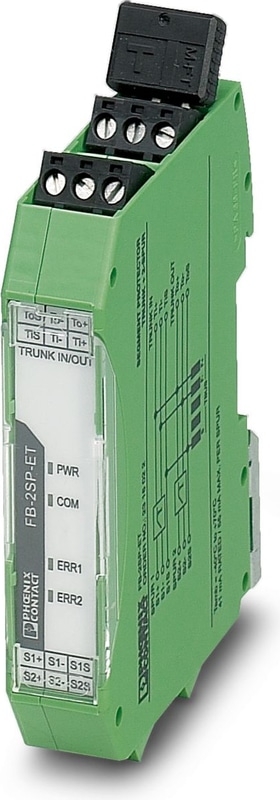

FB-2SP-ET - Device coupler
Device coupler for Foundation Fieldbus and PROFIBUS PA with Trunk In and Trunk Out connections (preinstalled mechanical terminator) and additional terminal connections for 2 spurs connected to fieldbus end devices.
- Power is supplied to the device couplers via the TBUS
- The TBUS routes the fieldbus data from the trunk line modules to the extension modules
- Recommended for high-density control cabinet installations
- LEDs indicate the power and error state
- Built-in short-circuit protection
Technical Specifications
Supply
| Supply Voltage Range | 9 V DC ... 31 V DC (input on trunk line side) |
| Typical current consumption | 7 mA |
Safety data
| Max. external inductivity Lo / Max. external capacitance Co | 0.25 mH / 60 nF |
Data: Foundation Fieldbus and PROFIBUS PA Segment
| Connection Method | Pluggable COMBICON screw connection for each spur |
| Termination resistor | 100 Ω, external removable plug included |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
| Output nominal voltage | ≤ 31 V (each spur) |
| Output Current | ≤ 43 mA (each spur) |
| Maximum output current | ≤ 58 mA (each spur) |
| Surge protection | Active if voltage exceeds 39 V (typ.) or 41 V (max.) |
| Voltage drop trunk line / outputs | ≤ 1.3 V |
Data: Foundation Fieldbus and PROFIBUS PA
| Connection Method | Pluggable screw connection |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
Signaling
| Status display | LED (green = Power OK; yellow = trunk comms OK; red = spur short-circuit) |
Dimensions
| Width | 17.5 mm |
| Height | 98.4 mm |
| Depth | 70.4 mm |
Material specifications
| Color | green |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | 95 % (non-condensing) |
| Shock | 15g, 11 ms |
| Vibration (Operation) | 1g, 10 Hz ... 150 Hz |
Conformity/Approvals
| ATEX | II 3 G Ex nA [nL] IIC T4 X |
| IEC | IEC 60529, IEC 61158-2 |
| UL, USA / Canada | Class I, Zone 2, Group IIC T4 |
| UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D, T4 |
| EN | EN 61326, EN 60068-2-27, EN 60068-2-6 |
| NE | NAMUR NE 21 |
Standards
| Standards/regulations | IEC 60529, IEC 61158-2 |
| Standards/regulations | NE21 |
| Standards/regulations | EN 61326, EN 60068-2-27, EN 60068-2-6 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | horizontal DIN rail NS 35, EN 60715 |
