2316190
Official DistributorSKU
PHX2316190
MPN
FB-15-SS
Weight
4.7 kg
Series FB

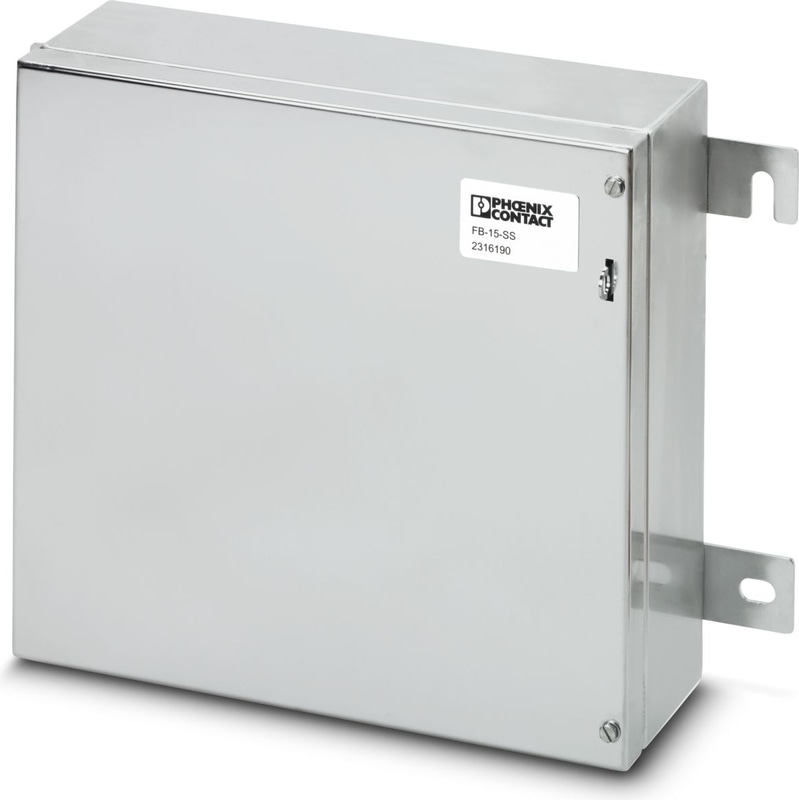

FB-15-SS - Junction box
Stainless steel field junction box with 15 ports for use in hazardous locations. Includes FB-ET trunk module, Plugtrab base with option for surge protection plug, and DIN rail space for up to 12 device couplers.
- Busbar and shield clamps
- Includes an FB-ET trunk line module and enables the installation of additional couplers and PT plugs
- Entries for the trunk line (input/output) and breather connections
- Cable glands, plugs, and breather must be ordered separately
- Developed specifically for field device coupler systems
- Each housing has M20 ports and can be configured as desired
Why Proax for Phoenix Contact 2316190?
Proax is an authorized distributor of Phoenix Contact 2316190 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
Recommended
FB-15-AL - Aluminum field junction box with 8 ports for use in hazardous locations. Includes FB-ET trunk module, Plugtrab base with option for surge protection plug, and DIN rail space for up to 6 device couplers.
