Bus system cable - SAC-3P-M12MS/ 1,0-961/M12FR VA

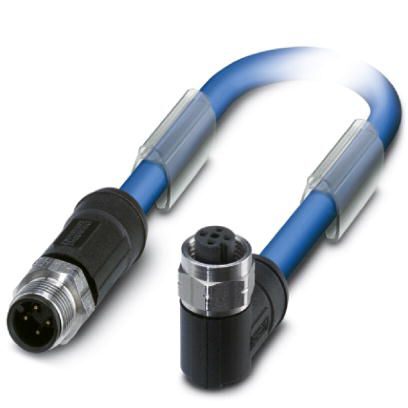

Bus system cable, PROFIBUS PA (31.25 kbps), 3-position, PVC, blue RAL 5015, shielded, Plug straight M12, coding: A, on Socket angled M12, coding: A, cable length: 1 m, For Ex area with high-grade steel knurl
Technical Specifications
Dimensions
| Length of Cable | 1 m |
| Stripping length of the free conductor end | 50 mm |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 90 °C (Plug / socket) |
| Ambient Temperature (Operation) | -25 °C ... 90 °C (Plug / socket) |
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Degree of Protection | IP68 |
| Degree of Protection | IP69K |
General
| Note | For applications in circuits of intrinsic safety protection type "i". Electrical values following EN 60079-14. |
| Rated current at 40°C | 4 A |
| Rated voltage | 48 V AC |
| Rated voltage | 60 V DC |
| Number of Positions | 3 |
| Color handle area | black |
| Coding | B - inverse |
| Signal type/category | PROFIBUS PA, 31.25 kbps |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.4 Nm (M12 connector) |
Material
| Flammability rating according to UL 94 | HB |
| Contact Material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Stainless steel |
| Sealing material | NBR |
Pin assignment
| Contact | Color (signal designation) | Contact (optional) | 1 (Plug) = OG (DATA+) = 1 (Socket) |
| Contact | Color (signal designation) | Contact (optional) | 3 (Plug) = BU (DATA-) = 3 (Socket) |
| Contact | Color (signal designation) | Contact (optional) | 4 (Plug) = SR (shield) = 4 (Socket) |
Cable
| Cable Type | Fieldbus FOUNDATION/PROFIBUS PA, blue |
| Cable type (abbreviation) | 961 |
| Cable structure | 2xAWG18/7 + 1xAWG20/7 |
| Conductor Cross Section | 2x 0.75 mm² (Signal line) |
| Conductor Cross Section | 1x 0.5 mm² (Drain wire) |
| AWG Signal Line | 18 |
| Conductor structure signal line | 7x 0.40 mm |
| Core diameter including insulation | 2.24 mm ±0.05 mm |
| Thickness, insulation | 0.5 mm |
| Wire colors | Blue, orange |
| Twisted pairs | 2 cores to the pair |
| Overall twist | One pair with one drain wire and fillers for core |
| Shielding | Plastic-coated aluminum foil with a drain wire |
| Optical shield covering | 100 % |
| Outer sheath thickness | 1 mm |
| External cable diameter D | 7.5 mm ±0.25 mm |
| Smallest bending radius, fixed installation | 75 mm |
| Cable weight | 56.552 kg/km |
| Tensile strength GRP | 260 N |
| External sheath, color | blue RAL 5015 |
| Outer sheath, material | PVC |
| Material conductor insulation | PO (Signal line) |
| Conductor material | Tin-plated Cu litz wires |
| Conductor resistance | ≤ 19.35 Ω/km (Signal line) |
| Conductor resistance | 26 Ω/km (shield) |
| Working capacitance | 78 nF (at 1 kHz) |
| Cable capacity | 147 pF/m (at 1 kHz, core/shield) |
| Cable capacity | ≤ 3.94 pF/m (capacitance unbalance) |
| Signal speed | 0.66 c |
| Shield attenuation | 3 dB/km (at 39 kHz) |
| Cable impedance | 100 Ω ±20 % (At 31.25 kHz) |
| Conductor inductance | 0.6233 µH/m |
| Nominal voltage, cable | 300 V |
| Special Properties | UL standards PLTC-ER and ITC |
| Flame resistance | UL 1685 (CSA FT 4) |
| Flame resistance | UL 1685 (vertical tray) |
| Flame resistance | UL 1666 (riser) |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (cable, fixed installation) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
1208429 - Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors
1212224 - Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm
1212600 - Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits
1212513 - Nut for assembling sensor/actuator cables with M12 connector and M12 connectors for assembly, with a hexagonal knurl wrench size of 14 mm, with 4 mm hexagonal drive
