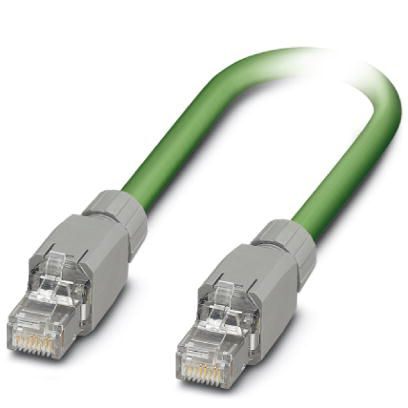

Patch cable VS-IP20-IP20-93G-LI/2,0
Assembled EtherCAT® cable, shielded, star quad, AWG 22 stranded (7-wire), RAL 6018 (yellow-green), RJ45 connector/IP20, 4-pos. on RJ45 connector/IP20, length: 2 m
Technical Specifications
Dimensions
| Length of Cable | 2 m |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -10 °C ... 60 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -10 °C ... 60 °C (cable, flexible installation) |
General data
| Number of Positions | 4 |
| Degree of pollution | 1 |
| Rated voltage (III/3) | 50 V |
| Connection Method | IDC fast connection |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
Cable
| Cable Type | PROFINET PVC stranded CAT5 |
| Cable type (abbreviation) | 93B |
| UL AWM style | 21694 |
| Signal type/category | PROFINET CAT5 (IEC 11801), 100 Mbps |
| Signal type/category | EtherCAT® CAT5 (IEC 11801), 100 Mbps |
| Cable structure | 1x4xAWG22/7; SF/TQ |
| Conductor Cross Section | 4x 0.34 mm² |
| AWG Signal Line | 22 |
| Conductor structure signal line | 7x 0.25 mm |
| Core diameter including insulation | 1.55 mm |
| Wire colors | White, yellow, blue, orange |
| Overall twist | Star quad |
| Shielding | Aluminum-coated foil, tinned copper braided shield |
| Optical shield covering | 85 % |
| External sheath, color | green RAL 6018 |
| Outer sheath thickness | approx. 0.9 mm |
| External cable diameter D | 6.5 mm ±0.2 mm |
| Minimum bending radius, fixed installation | 3 x D |
| Minimum bending radius, flexible installation | 7 x D |
| Cable weight | 67 kg/km |
| Outer sheath, material | PVC |
| Material, inner sheath | PVC |
| Material conductor insulation | PE |
| Conductor material | Tin-plated Cu litz wires |
| Insulation resistance | ≥ 500 MΩ*km |
| Loop resistance | ≤ 120.00 Ω/km |
| Wave impedance | 100 Ω ±15 Ω (at 100 MHz) |
| Near end crosstalk attenuation (NEXT) | 80 dB (with 1 MHz) |
| Near end crosstalk attenuation (NEXT) | 76 dB (at 4 МHz) |
| Near end crosstalk attenuation (NEXT) | 70 dB (at 10 MHz) |
| Near end crosstalk attenuation (NEXT) | 65 dB (at 16 MHz) |
| Near end crosstalk attenuation (NEXT) | 63 dB (at 20 МHz) |
| Near end crosstalk attenuation (NEXT) | 60 dB (at 31.25 МHz) |
| Near end crosstalk attenuation (NEXT) | 55 dB (at 62.5 МHz) |
| Near end crosstalk attenuation (NEXT) | 50 dB (at 100 MHz) |
| Attenuation | 2.1 dB (with 1 MHz) |
| Attenuation | 4 dB (at 4 МHz) |
| Attenuation | 6.3 dB (at 10 MHz) |
| Attenuation | 8 dB (at 16 MHz) |
| Attenuation | 9 dB (at 20 МHz) |
| Attenuation | 11.4 dB (at 31.25 МHz) |
| Attenuation | 16.5 dB (at 62.5 МHz) |
| Attenuation | 21.3 dB (at 100 MHz) |
| Signal speed | 0.66 c |
| Signal runtime | 5.3 ns/m |
| Coupling resistance | ≤ 20.00 mΩ/m (at 10 MHz) |
| Nominal voltage, cable | 600 V |
| Test voltage Core/Core | 2000 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 2000 V (50 Hz, 1 min.) |
| Flame resistance | According to UL 1685 (CSA FT 4) |
| Resistance to Oil | Resistant to oil to a limited extent |
| Other resistance | UV resistant According to UL 1581, Section 1200 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (cable, flexible installation) |
| Ambient temperature (installation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -50 °C ... 70 °C |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Why Proax for Phoenix Contact 1419145?
Proax is an authorized distributor of Phoenix Contact 1419145 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
