Patch cable VS-IP20-FPN-93G-LI/2,0

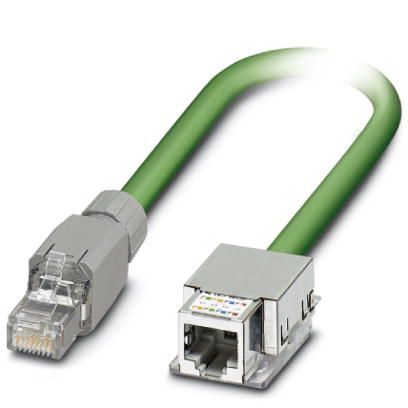

Assembled EtherCAT® cable, shielded, star quad, AWG 22 stranded (7-wire), RAL 6018 (yellow-green), RJ45 socket module/IP20 for Freenet system, 4-pos. on RJ45 connector/IP20, length: 2 m
Technical Specifications
Dimensions
| Length of Cable | 2 m |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -10 °C ... 60 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -5 °C ... 50 °C (cable, flexible installation) |
General data
| Number of Positions | 4 |
| Degree of pollution | 1 |
| Rated voltage (III/3) | 50 V |
| Connection Method | IDC fast connection |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
Cable
| Cable Type | PROFINET PVC stranded CAT5 |
| Cable type (abbreviation) | 93B |
| UL AWM style | 21694 |
| Signal type/category | PROFINET CAT5 (IEC 11801), 100 Mbps |
| Signal type/category | EtherCAT® CAT5 (IEC 11801), 100 Mbps |
| Cable structure | 1x4xAWG22/7; SF/TQ |
| Conductor Cross Section | 4x 0.34 mm² |
| AWG Signal Line | 22 |
| Conductor structure signal line | 7x 0.25 mm |
| Core diameter including insulation | 1.55 mm |
| Wire colors | White, yellow, blue, orange |
| Overall twist | Star quad |
| Shielding | Aluminum-coated foil, tinned copper braided shield |
| Optical shield covering | 85 % |
| External sheath, color | green RAL 6018 |
| Outer sheath thickness | approx. 0.9 mm |
| External cable diameter D | 6.5 mm ±0.2 mm |
| Minimum bending radius, fixed installation | 3 x D |
| Minimum bending radius, flexible installation | 7 x D |
| Cable weight | 67 kg/km |
| Outer sheath, material | PVC |
| Material, inner sheath | PVC |
| Material conductor insulation | PE |
| Conductor material | Tin-plated Cu litz wires |
| Insulation resistance | ≥ 500 MΩ*km |
| Loop resistance | ≤ 120.00 Ω/km |
| Wave impedance | 100 Ω ±15 Ω (at 100 MHz) |
| Near end crosstalk attenuation (NEXT) | 80 dB (with 1 MHz) |
| Near end crosstalk attenuation (NEXT) | 76 dB (at 4 МHz) |
| Near end crosstalk attenuation (NEXT) | 70 dB (at 10 MHz) |
| Near end crosstalk attenuation (NEXT) | 65 dB (at 16 MHz) |
| Near end crosstalk attenuation (NEXT) | 63 dB (at 20 МHz) |
| Near end crosstalk attenuation (NEXT) | 60 dB (at 31.25 МHz) |
| Near end crosstalk attenuation (NEXT) | 55 dB (at 62.5 МHz) |
| Near end crosstalk attenuation (NEXT) | 50 dB (at 100 MHz) |
| Attenuation | 2.1 dB (with 1 MHz) |
| Attenuation | 4 dB (at 4 МHz) |
| Attenuation | 6.3 dB (at 10 MHz) |
| Attenuation | 8 dB (at 16 MHz) |
| Attenuation | 9 dB (at 20 МHz) |
| Attenuation | 11.4 dB (at 31.25 МHz) |
| Attenuation | 16.5 dB (at 62.5 МHz) |
| Attenuation | 21.3 dB (at 100 MHz) |
| Signal speed | 0.66 c |
| Signal runtime | 5.3 ns/m |
| Coupling resistance | ≤ 20.00 mΩ/m (at 10 MHz) |
| Nominal voltage, cable | 600 V |
| Test voltage Core/Core | 2000 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 2000 V (50 Hz, 1 min.) |
| Flame resistance | According to UL 1685 (CSA FT 4) |
| Resistance to Oil | Resistant to oil to a limited extent |
| Other resistance | UV resistant According to UL 1581, Section 1200 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (cable, flexible installation) |
| Ambient temperature (installation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -50 °C ... 70 °C |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
