1416261
Official DistributorSKU
PHX1416261
MPN
VS-PPC/PL-M12MS-93R-LI/5,0
Weight
0.346 kg

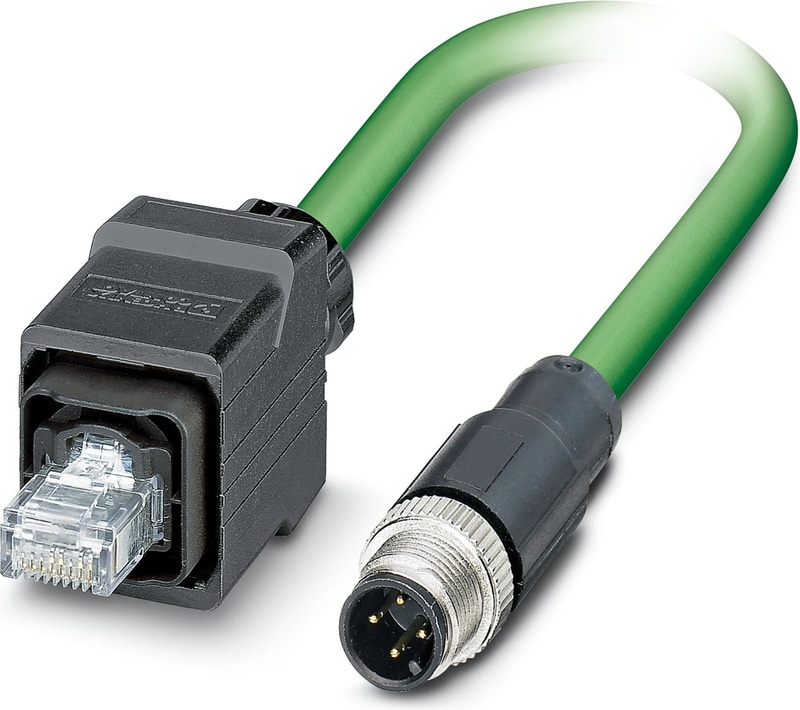

VS-PPC/PL-M12MS-93R-LI/5,0 - Network cable
Network cable, PROFINET CAT5 (100 Mbps), 4-position, PUR halogen-free, green RAL 6018, shielded (Tinned copper braided shield), Plug straight RJ45 Push Pull / IP67, on Plug straight M12 / IP67, cable length: 2 m
Technical Specifications
Product properties
| Application | Standard |
| Sensor Type | PROFINET |
| Number of Positions | 4 |
| No. of cable outlets | 1 |
| Shielded | yes |
Interfaces
| Signal type/category | PROFINET CAT5 (IEC 11801), 100 Mbps |
Electrical properties
| Nominal voltage UN | 48 V AC |
| Nominal voltage UN | 60 V DC |
| Transmission medium | Copper |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
Mechanical data
| Insertion/withdrawal cycles | ≥ 100 |
Connection 1
| Dimensional drawing | Pin assignment M12 male connector, 4-pos., D-coded, male side |
| Type | M12 Pin, straight, 4-position, AST, Keying: D |
| Number of Positions | 4 |
| Shielded | yes |
| Signal type/category | EtherCAT® CAT5 (IEC 11801), 100 Mbps |
| Signal type/category | PROFINET CAT5 (IEC 11801) |
| Insertion/withdrawal cycles | ≥ 100 |
| Insulation resistance | ≥ 100 MΩ |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Tightening torque | 0.4 Nm |
| Contact Material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Seal material | FKM |
| Flammability rating according to UL 94 | V0 |
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C |
| Standard designation | M12 connector |
| Standards/regulations | IEC 61076-2-101 |
Connection 2
| Type | Plug straight M12 / IP67 |
| Number of Positions | 4 |
| Handle color | black |
| Material | Plastic |
| Degree of Protection | IP67 |
Cable/line
| Cable Length | 2 m |
PROFINET robot CAT5 [93R]
| Cable weight | 55 kg/km |
| UL AWM style | 20233 (80°C/300 V) |
| Number of Positions | 4 |
| Shielded | yes |
| Cable Type | PROFINET robot CAT5 [93R] |
| Conductor structure | 1x4xAWG22/19, S/TQ |
| Signal runtime | 4.8 ns/m |
| Conductor structure signal line | 19x 0.15 mm |
| AWG Signal Line | 22 |
| Conductor Cross Section | 4x 0.34 mm² |
| Wire diameter incl. insulation | 1.5 mm |
| External Cable Diameter | 6.50 mm ±0.2 mm |
| Outer sheath, material | PUR |
| External sheath, color | green RAL 6018 |
| Conductor material | Tin-plated Cu litz wires |
| Material wire insulation | Foamed PE |
| Single wire, color | white, yellow, blue, orange |
| Thickness, outer sheath | approx. 1.00 mm |
| Overall twist | Star quad |
| Optical shield covering | 85 % |
| Insulation resistance | ≥ 500 MΩ*km |
| Loop resistance | ≤ 120.00 Ω/km |
| Wave impedance | 100 Ω ±5 Ω (at 100 MHz) |
| Nominal voltage, cable | 300 V |
| Test voltage Core/Core | 2000 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 2000.00 V (50 Hz, 1 min.) |
| Minimum bending radius, fixed installation | 5 x D |
| Smallest bending radius, fixed installation | 33 mm |
| Torsion force | ± 180 °/m |
| Torsion cycles | 1000000 |
| Shield attenuation | 2.9 dB (with 1 MHz) |
| Shield attenuation | 5 dB (at 4 МHz) |
| Shield attenuation | 8.1 dB (at 10 MHz) |
| Shield attenuation | 10.4 dB (at 16 MHz) |
| Shield attenuation | 11.9 dB (at 20 МHz) |
| Shield attenuation | 15.5 dB (at 31.25 МHz) |
| Shield attenuation | 26.5 dB (at 62.5 МHz) |
| Shield attenuation | 41 dB (at 100 MHz) |
| Halogen-free | according to IEC 60754-1 |
| Flame resistance | according to IEC 60332-1-2 |
| Resistance to Oil | in accordance with DIN EN 60811-2-1 |
| Other resistance | UV resistant (According to UL 1581, Section 1200) |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Ambient temperature (installation) | -20 °C ... 60 °C |
Ambient conditions
| Degree of Protection | IP65 (M12 connector) |
| Degree of Protection | IP67 (RJ45 connector) |
