SAC-3P- 3,0-PVC/A-1L-V
Weight
0.137 kg
Series SAC-3P
SAC-3P- 3,0-PVC/A-1L-V - Sensor/actuator cable

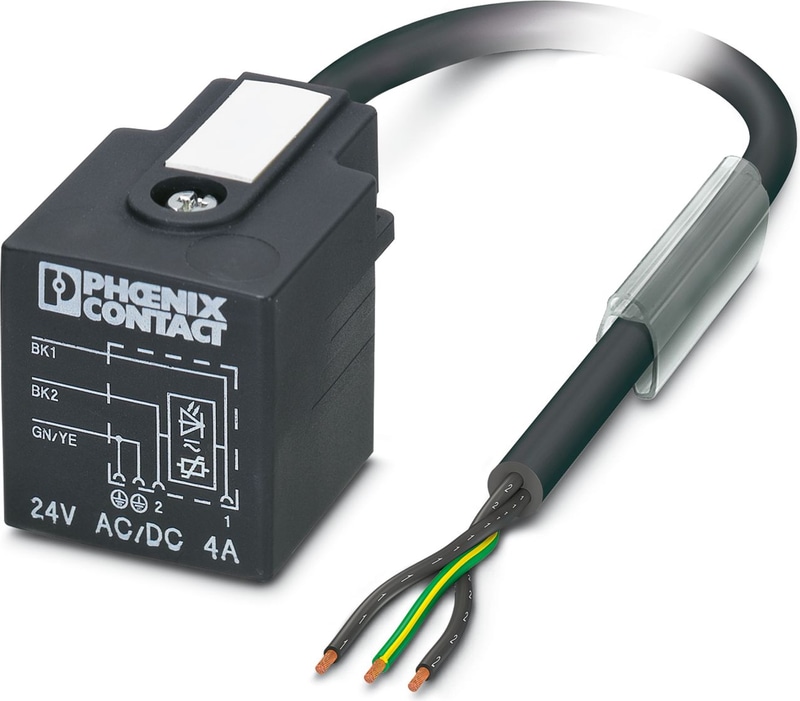

Sensor/actuator cable, 3-position, PVC, black RAL 9005, free cable end, on Valve connector A, with 1 LED, Wiring: Varistor, cable length: 3 m
- Easy and safe: 100 % electrically tested plug-in components
- Convenient: increased machine availability thanks to quick and easy diagnostics
SAC-3P
The Phoenix Contact SAC-3P Series comprises sensor/actuator cables designed for reliable signal transmission in industrial automation applications. These 3-position cables are available in various configurations to accommodate different connectivity requirements.
Key Features:
Connector Types: The series offers cables with M8 and M12 connectors, available in both straight and angled orientations, providing flexibility for diverse installation scenarios.
Cable Materials: Cables are constructed with halogen-free polyurethane (PUR) or polyvinyl chloride (PVC) jackets, ensuring durability and resistance to environmental factors.
Coding: Equipped with A-coding, these cables are standardized for sensor/actuator connections, ensuring compatibility across various devices.
Technical Specifications
Product properties
| Application | Standard |
| Number of Positions | 3 |
| No. of cable outlets | 1 |
| Shielded | no |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | TPU |
| Material housing valve plug | TPU |
| Contact Material | CuSn |
| Valve plug contact insert material | PA 6.6 |
| Contact surface material | Sn |
Electrical properties
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 24 V AC |
| Nominal voltage UN | 24 V DC |
| Nominal current IN | 4 A |
Valve connector characteristics
| Fixing screws | M3 x 29 |
Signaling
| Status display | 1 LED |
| Status display present | Yes |
Connection 1
| Type | free cable end |
Connection 2
| Type | Valve connector A |
| Number of Positions | 3 |
| Material | CuSn (Contact) |
| Material | Sn (Contact surface) |
| Material | PA 6.6 (Contact carriers) |
| Material | TPU (Housing) |
Cable/line
| Cable Length | 3 m |
PVC black [PVC]
| Cable weight | 38.6 kg/km |
| UL AWM style | 2464 |
| Number of Positions | 3 |
| Shielded | no |
| Cable Type | PVC black [PVC] |
| Conductor structure signal line | 16x 0.20 mm |
| AWG Signal Line | 20 |
| Conductor Cross Section | 3x 0.5 mm² |
| Wire diameter incl. insulation | 1.5 mm ±0.05 mm |
| External Cable Diameter | 4.80 mm ±0.2 mm |
| Outer sheath, material | PVC |
| External sheath, color | black RAL 9005 |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | PVC |
| Single wire, color | black 1, black 2, green/yellow |
| Overall twist | 3 wires, twisted |
| Max. conductor resistance | 39 Ω/km (at 20 °C) |
| Insulation resistance | ≥ 20 MΩ*km |
| Nominal voltage, cable | 300 V |
| Test voltage | 1200 V |
| Minimum bending radius, fixed installation | 5 x D |
| Smallest bending radius, fixed installation | 24 mm |
| Flame resistance | DIN VDE 0482 |
| Flame resistance | DIN EN 50265-2-1 |
| Resistance to Oil | in accordance with DIN EN 60811-2-1 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -5 °C ... 80 °C (Cable, flexible installation) |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -20 °C ... 85 °C (valve plug) |
Valve connector
| Standard designation | Valve connector |
| Standards/specifications | EN 175301-803 |
