SAC-3P- 3,0-PVC/M12FSS PE
Weight
0.274 kg
Series SAC-3P

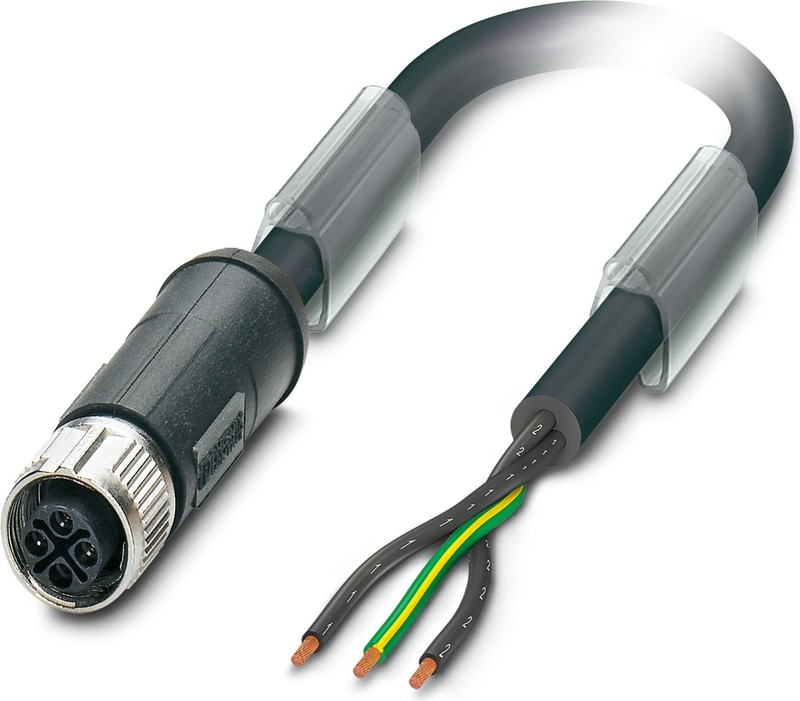

SAC-3P- 3,0-PVC/M12FSS PE - Power cable
Power cable, 3-position, PVC, black, free cable end, on Socket straight M12, coding: S, cable length: 3 m, for AC current up to 16 A/230 V
- Easy and safe: 100 % electrically tested plug-in components
- Protection against incorrect connection using special S-coding
SAC-3P
The Phoenix Contact SAC-3P Series comprises sensor/actuator cables designed for reliable signal transmission in industrial automation applications. These 3-position cables are available in various configurations to accommodate different connectivity requirements.
Key Features:
Connector Types: The series offers cables with M8 and M12 connectors, available in both straight and angled orientations, providing flexibility for diverse installation scenarios.
Cable Materials: Cables are constructed with halogen-free polyurethane (PUR) or polyvinyl chloride (PVC) jackets, ensuring durability and resistance to environmental factors.
Coding: Equipped with A-coding, these cables are standardized for sensor/actuator connections, ensuring compatibility across various devices.
Technical Specifications
Product properties
| Application | Power supply |
| Number of Positions | 3 |
| No. of cable outlets | 1 |
| Shielded | no |
| Coding | S |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Material of grip body | PP |
| Contact Material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA |
| Material for screw connection | Zinc die-cast, nickel-plated |
Electrical properties
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 690 V AC |
| Nominal current IN | 16 A |
Mechanical data
| Insertion/withdrawal cycles | > 100 |
Connection 1
| Type | free cable end |
Connection 2
| Type | Socket straight M12 |
| Coding type | S (Power) |
Cable/line
| Cable Length | 3 m |
PVC black [PVC]
| Cable weight | 80 kg/km |
| UL AWM style | 2517 (105 °C / 300 V) |
| Number of Positions | 3 |
| Shielded | no |
| Cable Type | PVC black [PVC] |
| Conductor Cross Section | 3x 1.5 mm² |
| Wire diameter incl. insulation | 2.4 mm ±0.1 mm |
| External Cable Diameter | 6.80 mm ±0.2 mm |
| Outer sheath, material | PVC |
| External sheath, color | black |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | PVC |
| Single wire, color | black 1, black 2, green/yellow |
| Overall twist | 3 wires, twisted |
| Max. conductor resistance | ≤ 13.3 Ω/km (at 20 °C) |
| Insulation resistance | ≥ 10 MΩ*km (at 20 °C) |
| Nominal voltage, cable | 300 V AC |
| Test voltage | 2000 V AC |
| Minimum bending radius, fixed installation | 5 x D |
| Minimum bending radius, flexible installation | 12 x D |
| Smallest bending radius, fixed installation | 34 mm |
| Smallest bending radius, movable installation | 82 mm |
| Flame resistance | according to IEC 60332-1 |
| Flame resistance | According to DIN EN 60332-1-2 |
| Flame resistance | According to VW-1 |
| Flame resistance | According to FT1 |
| Ambient Temperature (Operation) | -40 °C ... 90 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -5 °C ... 90 °C (Cable, flexible installation) |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 (without preloading, as additional test in accordance with IEC 60529) |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (Plug / socket) |
Standards and Regulations
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-111 |
