Official DistributorSKU
MPN
SAC-ASI-J-Y-B-PUR-2,0-OE
Weight
0.097 kg
Series SAC-ASI-J-Y-B-PUR
SAC-ASI-J-Y-B-PUR-2,0-OE - Distributor

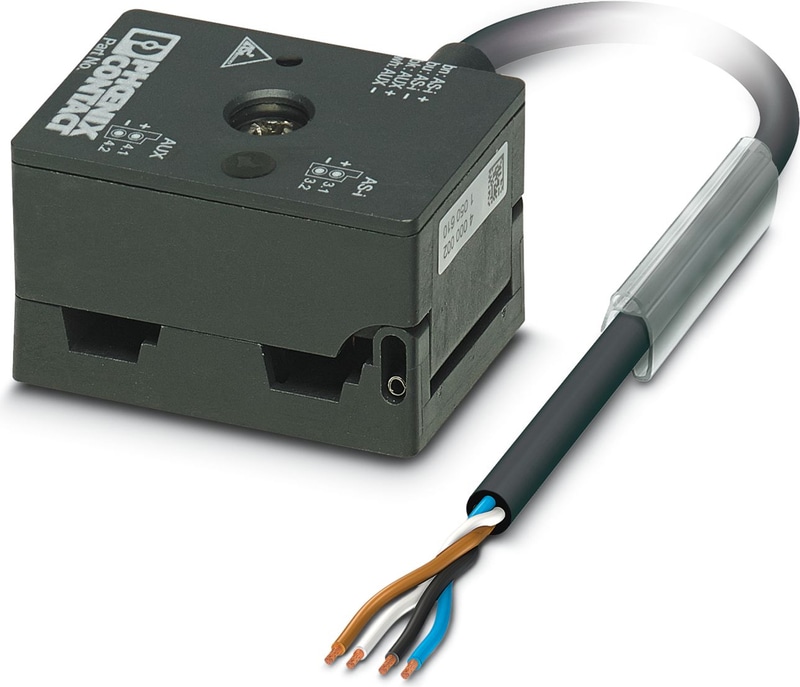

AS-Interface distributor with a high degree of protection, for a branch from two flat-ribbon conductors to a 2.0 m PUR round cable with free cable end
Technical Specifications
Product properties
| Number of Positions | 4 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Nominal voltage UN | ≤ 32 V DC |
| Nominal current IN | 4 A |
| Transmission medium | Copper |
Connection technology
| Connection Method | AS-i penetration technique |
Pin assignment
| Contact | Color (signal designation) | Contact (optional) | 3.1 (AS-i distributors) | BN (AS-i+) |
| Contact | Color (signal designation) | Contact (optional) | 3.2 (AS-i distributors) | BU (AS-i-) |
| Contact | Color (signal designation) | Contact (optional) | 4.1 (AS-i distributors) | BK (AUX+) |
| Contact | Color (signal designation) | Contact (optional) | 4.2 (AS-i distributors) | WH (AUX-) |
Interfaces
| Bus system | AS-Interface |
Signaling
| Status display | No |
| Status display present | No |
Connection 1
| Type | Load center lateral AS-i Screw locking |
| Number of Positions | 4 |
| Locking Type | Screw locking mechanism |
| Material | CuSn (Contact) |
| Material | Ni/Au (Contact surface) |
| Material | PBT (Contact carriers) |
| Material | PBT (Housing) |
| Material | Stainless steel (Screw connection) |
| Tightening torque | 1.65 Nm (Locking screw) |
Connection 2
| Type | free cable end |
Cable/line
| Cable Length | 2 m |
PUR halogen-free black [PUR]
| UL AWM style | 20549 / 10493 |
| Number of Positions | 4 |
| Shielded | no |
| Cable Type | PUR halogen-free black [PUR] |
| Conductor structure signal line | 42x 0.10 mm |
| AWG Signal Line | 22 |
| Conductor Cross Section | 4x 0.34 mm² (Signal line) |
| Wire diameter incl. insulation | 1.25 mm ±0.05 mm |
| External Cable Diameter | 4.30 mm ±0.2 mm |
| Outer sheath, material | PUR |
| External sheath, color | black |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | PP |
| Single wire, color | brown, white, blue, black |
| Overall twist | 4 wires, twisted |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (fixed routing) |
| Ambient Temperature (Operation) | -25 °C ... 80 °C (Flexibly installed) |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 75 °C |
| Ambient Temperature (Operation) | -25 °C ... 80 °C (Cable, flexible installation) |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Accessories
SACC-FS-4QO-0,34-M SCO - Connector, Universal, 4-position, Socket straight M12 SPEEDCON, coding: A, Insulation displacement connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 3.5 mm ... 6 mm
SACC-M12FS-4QO-0,34 - Connector, Universal, 4-position, Socket straight M12, coding: A, Insulation displacement connection, knurl material: Plastic, external cable diameter 3.5 mm ... 6 mm
SACC-M12FS-4QO-0,34-VA - Connector, Universal, 4-position, Socket straight M12, coding: A, Insulation displacement connection, knurl material: Stainless steel 1.4404, external cable diameter 3.5 mm ... 6 mm
MICROFOX-SB - Electronic diagonal cutter, round head, without chamfer, with opening spring, mirror-polished and oiled, 2-component grip, cutting capacity: soft 0.2 - 2.0 mm; medium hard 1.2 mm; hard 0.5 mm diameter
Why Proax for Phoenix Contact 1407581?
Proax is an authorized distributor of Phoenix Contact 1407581 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
