1405621
Official DistributorSKU
PHX1405621
MPN
SAC-ASI-J-Y-B-M12FS
Weight
0.046 kg

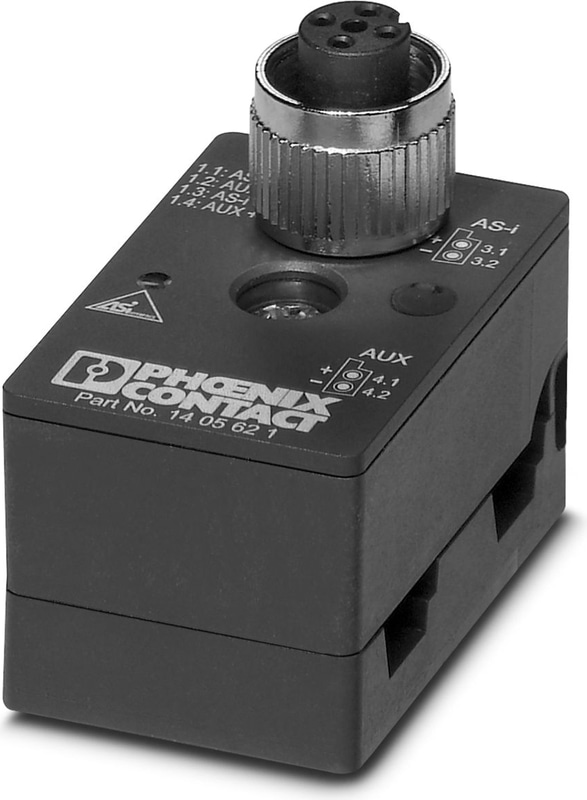

SAC-ASI-J-Y-B-M12FS - Distributor
AS-Interface distributor with a high degree of protection, for a branch from two flat-ribbon conductors to one straight, A-coded, 4-pos. M12 socket
Technical Specifications
Product properties
| Number of Positions | 4 |
| Coding | A |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Nominal voltage UN | ≤ 32 V DC |
| Nominal current IN | 4 A |
| Transmission medium | Copper |
Connection technology
| Connection Method | AS-i penetration technique |
Pin assignment
| Contact | Color (signal designation) | Contact (optional) | 1 (M12 socket) (AS-i+) | 3.1 (AS-i distributors) |
| Contact | Color (signal designation) | Contact (optional) | 2 (M12 socket) (AUX-) | 4.2 (AS-i distributors) |
| Contact | Color (signal designation) | Contact (optional) | 3 (M12 socket) (AS-i-) | 3.2 (AS-i distributors) |
| Contact | Color (signal designation) | Contact (optional) | 4 (M12 socket) (AUX+) | 4.1 (AS-i distributors) |
| Contact | Color (signal designation) | Contact (optional) | 5 (M12 socket) | N.C. |
Interfaces
| Bus system | AS-Interface |
Signaling
| Status display | No |
| Status display present | No |
Connection 1
| Type | Load center AS-i Screw locking |
| Number of Positions | 4 |
| Locking Type | Screw locking mechanism |
| Material | CuSn (Contact) |
| Material | Ni/Au (Contact surface) |
| Material | PBT (Contact carriers) |
| Material | PBT (Housing) |
| Material | Stainless steel (Screw connection) |
| Tightening torque | 1.65 Nm (Locking screw) |
Connection 2
| Type | Socket straight M12 |
| Number of Positions | 4 (5) |
| Material | CuSn (Contact) |
| Material | Ni/Au (Contact surface) |
| Material | TPE-U (Contact carriers) |
| Material | Zinc die-cast, nickel-plated (Screw connection) |
| Insertion/withdrawal cycles | ≥ 100 |
| Tightening torque | 0.4 Nm |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 75 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Standards and Regulations
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
Accessories
Why Proax for Phoenix Contact 1405621?
Proax is an authorized distributor of Phoenix Contact 1405621 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
