Official DistributorSKU
MPN
SAC-ASI-J-Y-Y-N
Weight
0.041 kg
This product is Not Cancellable/Not Returnable

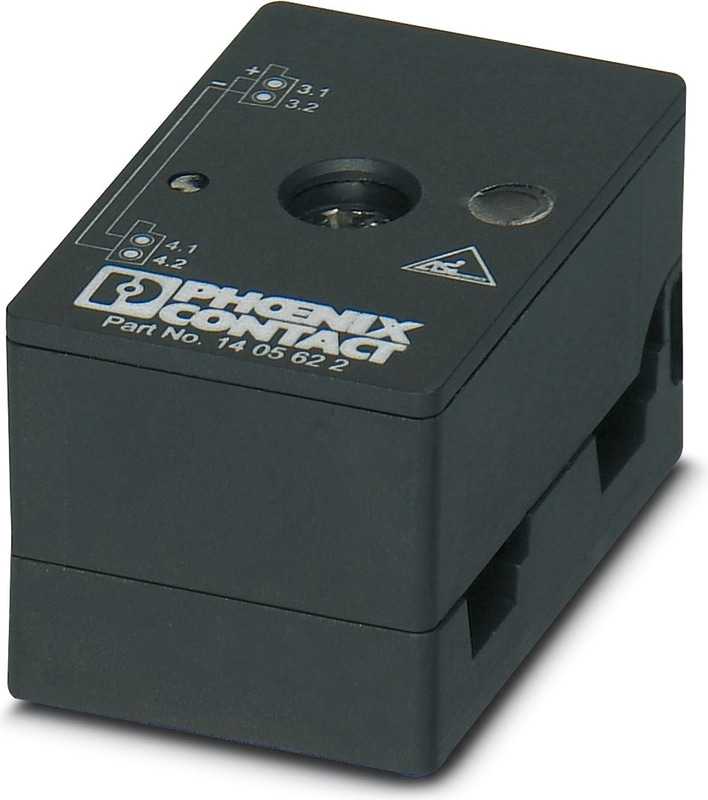

SAC-ASI-J-Y-Y-N - Distributor
AS-Interface H-distributor with a high degree of protection, parallel wired, for the distribution of AS-Interface flat-ribbon conductors
Technical Specifications
Product properties
| Number of Positions | 4 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Nominal voltage UN | ≤ 32 V DC |
| Nominal current IN | 8 A |
| Transmission medium | Copper |
Connection technology
| Connection Method | AS-i penetration technique |
Interfaces
| Bus system | AS-Interface |
Signaling
| Status display | No |
| Status display present | No |
Material specifications
| Material Housing | PBT |
Connection 1
| Type | Load center AS-i Screw locking |
| Number of Positions | 4 |
| Locking Type | Screw locking mechanism |
| Material | CuSn (Contact) |
| Material | Ni/Au (Contact surface) |
| Material | PBT (Contact carriers) |
| Material | PBT (Housing) |
| Material | Stainless steel (Screw connection) |
| Tightening torque | 1.65 Nm (Locking screw) |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Degree of Protection | IP69K |
| Ambient Temperature (Operation) | -25 °C ... 75 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Accessories
VS-ASI-FC-EPDM-BK 100M - AS-Interface EPDM flat conductor in black, for additional power supply, 2 x 1.5 mm2, 100 m ring
VS-ASI-FC-PVC-UL-YE 100M - AS-Interface PVC flat conductor with UL in yellow, 2 x 1.5 mm2, 100 m ring- VS-ASI-FC-PVC-UL-BK 100M - AS-Interface PVC flat conductor with UL in black, for additional power supply, 2 x 1.5 mm2, 100 m ring
- VS-ASI-FC-TPE-UL-YE 100M - AS-Interface TPE flat conductor with UL in yellow, 2 x 1.5 mm2, 100 m ring
- VS-ASI-FC-TPE-UL-BK 100M - AS-Interface TPE flat conductor with UL in black, for additional power supply, 2 x 1.5 mm2, 100 m ring
- VS-ASI-FC-PUR-BK 100M - AS-Interface PUR flat conductor in black, for additional power supply, 2 x 1.5 mm2, 100 m ring
