1407579
Official DistributorSKU
PHX1407579
MPN
SAC-ASI-J-Y-B-FFKDS
Weight
0.039 kg

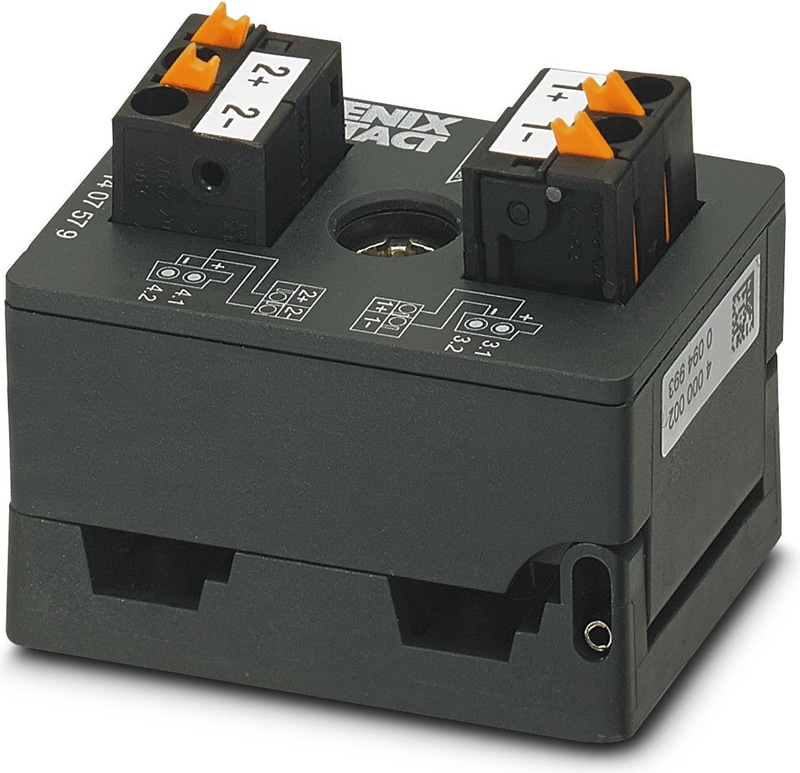

SAC-ASI-J-Y-B-FFKDS - Distributor
AS-Interface distributor, for a branch from two flat-ribbon conductors to two double spring-cage terminal blocks
Technical Specifications
Product properties
| Number of Positions | 4 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Nominal voltage UN | ≤ 32 V DC |
| Nominal current IN | 4 A |
| Transmission medium | Copper |
Connection technology
| Connection Method | AS-i penetration technique |
Pin assignment
| Contact | Color (signal designation) | Contact (optional) | 1+ (Spring connection) (AS-i+) | 3.1 (AS-i distributors) |
| Contact | Color (signal designation) | Contact (optional) | 1- (Spring connection) (AS-i-) | 3.2 (AS-i distributors) |
| Contact | Color (signal designation) | Contact (optional) | 2+ (Spring connection) (AS-i+) | 4.1 (AS-i distributors) |
| Contact | Color (signal designation) | Contact (optional) | 2- (Spring connection) (AS-i-) | 4.2 (AS-i distributors) |
Interfaces
| Bus system | AS-Interface |
Signaling
| Status display | No |
| Status display present | No |
Material specifications
| Material Housing | PBT |
Connection 1
| Type | Load center AS-i Screw locking |
| Number of Positions | 4 |
| Locking Type | Screw locking mechanism |
| Material | CuSn (Contact) |
| Material | Ni/Au (Contact surface) |
| Material | PBT (Contact carriers) |
| Material | PBT (Housing) |
| Material | Stainless steel (Screw connection) |
| Tightening torque | 1.65 Nm (Locking screw) |
Connection 2
| Type | Spring-cage terminal block straight |
| Number of Positions | 4 |
| Material | CuSn (Contact) |
| Material | tin-plated (Contact surface) |
| Material | PA (Contact carriers) |
Cable/line
| Stripping length of the individual wire | 10 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 75 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Accessories
Why Proax for Phoenix Contact 1407579?
Proax is an authorized distributor of Phoenix Contact 1407579 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
