Official DistributorSKU
MPN
PSR-M-E1-DO8-SC
Weight
0.17 kg
Series PSR-M-E

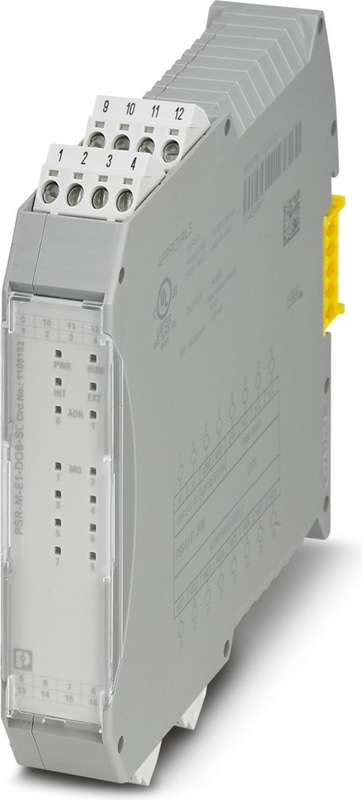

PSR-M-E1-DO8-SC - Extension module
Extension module with 8 signal outputs, TBUS interface, plug-in screw terminal block, TBUS connector included
- Cost-effective safety solution with a high level of adaptability to individual requirements
- Fast startup, thanks to easy hardware and software configuration
- Machine downtimes minimized with comprehensive, easy-to-understand diagnostics
- Narrow housing width of just 22.6 mm
Technical Specifications
Product properties
| Application | Extension module |
Insulation characteristics
| Protection class | III (EN 50178) |
Times
| Response time | see user manual |
| Restart time | min. 5 s (Boot time) |
| Restart time | max. 10 s (Boot time) |
Electrical properties
| Maximum power dissipation for nominal condition | 1.82 W (with max. permissible load) |
| Nominal operating mode | 100% operating factor |
| Interfaces | DIN rail TBUS for connection to the master module, supplied as standard |
Air clearances and creepage distances between the power circuits
| Rated Insulation Voltage | 250 V AC |
| Rated surge voltage/insulation | Basic insulation 4 kV between all current paths and housing |
Supply
| Designation | A1/A2 |
| Rated control circuit supply voltage US | 19.2 V DC ... 28.8 V DC |
| Rated control circuit supply voltage US | 24 V DC -20 % / +20 % (external fuse, typically 4 A) |
| Rated control supply current IS | typ. 20 mA |
| Power consumption at US | typ. 0.48 W |
| Inrush Current | 1.5 A (Δt = 1 ms at Us) |
| Filter time | typ. 5 ms (at A1 in the event of voltage dips at Us) |
| Protective circuit | Serial protection against polarity reversal |
| Protective circuit | Suppressor diode |
| Designation | 24V/A2 |
| Rated control circuit supply voltage US | 24 V DC -20 % / +20 % (external fuse, typically 4 A) |
| Rated control supply current IS | typ. 20 mA (Outputs active, without load) |
| Inrush Current | 2 A (Δt = 1 ms at Us) |
| Filter time | typ. 1 ms (in the event of voltage dips) |
| Protective circuit | Inverse-parallel protection against polarity reversal |
| Protective circuit | Suppressor diode |
Signal: MO1, MO2, MO3, MO4, MO5, MO6, MO7, MO8
| Output description | PNP, IEC 61131-2 Typ 0,1 |
| Output description | non-safety-related |
| Output description | Reference ground A2 |
| Number of Outputs | 8 |
| Output voltage when switched off | max. 0.1 V |
| Voltage | 24 V DC (via 24 V) |
| Maximum Inrush Current | 1.1 A (Δt = 3 s at Us) |
| Limiting Continuous Current | 100 mA (per channel) |
| Limiting Continuous Current | 400 mA (Total current of all digital signal outputs) |
| Leakage current | max. 100 µA |
| Switching frequency | max. 1/4 x tCycle [Hz] |
| Protective circuit | Suppressor diode |
| Short-circuit protection | Yes (self-limitation at 1.1 A) |
| Cable Length | max. 100 m (per output) |
Connection technology
| pluggable | yes |
Conductor connection
| Connection Method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section AWG | 24 ... 12 |
| Stripping length | 7 mm |
| Screw thread | M3 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
Signaling
| Status display | 1 x LED (green), 2 x LED (orange) |
| Status display | 8 x LED (yellow) |
| Operating voltage display | 1 x green LED |
| Error indication | 2 x LED (red) |
Dimensions
| Width | 22.61 mm |
| Height | 112.58 mm |
| Depth | 113.6 mm |
Material specifications
| Color (Housing) | yellow (RAL 1018) |
| Housing Material | Polyamide PA non-reinforced |
Ambient conditions
| Degree of Protection | IP20 |
| Min. degree of protection of inst. location | IP54 |
| Ambient Temperature (Operation) | -10 °C ... 55 °C (observe derating) |
| Ambient temperature (storage/transport) | -20 °C ... 85 °C |
| Maximum altitude | ≤ 2000 m (Above sea level) |
| Max. permissible humidity (storage/transport) | 95 % (non-condensing) |
| Max. permissible relative humidity (operation) | 95 % (non-condensing) |
| Shock | 10g for Δt = 16 ms (continuous shock, 1000 shocks in each space direction) |
| Vibration (Operation) | 10 Hz ... 150 Hz, 2g |
Air clearances and creepage distances between the power circuits
| Standards/regulations | EN 50178 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | Observe derating |
| Mounting Position | vertical or horizontal |
