1050543
Official DistributorSKU
PHX1050543
MPN
FLX-D25F/16CH/AI/FU/SIOP/TDC3K
Weight
0.378 kg
Series FLX-D

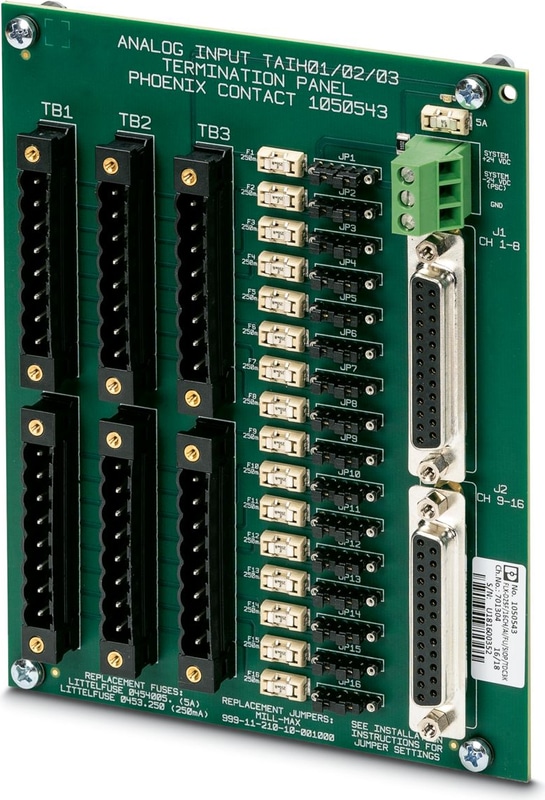

FLX-D25F/16CH/AI/FU/SIOP/TDC3K - Interface module
Migration board for converting TDC3000 to modern control platforms, analog input, 16 channel, fusing
- Panel mount to existing TDC3000 chassis
- Compatable with existing pluggable field wiring connectors
- DSUB control side connection
- Per channel fusing
- Terminal blocks for power supply
Technical Specifications
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Max. operating voltage Umax | 30 V DC (Power supply) |
| Operating Voltage | 30 V DC |
| Max. current carrying capacity per branch | 250 mA (fuse limited) |
| Maximum power voltage feed | 5 A (fuse limited) |
Supported controller HONEYWELL TDC3000
| Suitable I/O card | TAIH01 |
| Suitable I/O card | TAIH02 |
| Suitable I/O card | TAIH03 |
Controller level
| Connection Method | D-SUB-25 female connector |
| Number of Connections | 2 |
| Number of Positions | 25 |
Field level
| Connection Method | pluggable |
Item dimensions
| Width | 152.4 mm |
| Height | 120.7 mm |
| Depth | 38.3 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
| Altitude | < 2000 m |
| Permissible humidity (operation) | < 90 % |
Mounting
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Accessories
CAB-DSUB25M/OE/18/S/ 3M - Assembled shielded round cable; connection 1: Single wires (25-position) (The wires are marked and fitted with ferrules); connection 2: D-SUB pin strip (1x 25-position); cable length: 3 m
Assembled shielded round cable; connection 1: Twisted pair (25-position) (The wires are marked and fitted with ferrules); connection 2: D-SUB pin strip (1x 25-position); cable length: 5 m
