2908890
Official DistributorSKU
PHX2908890
MPN
FLX-D37F/16OSC/24DC/DO/TDC3K
Weight
1.05 kg
Series FLX-D

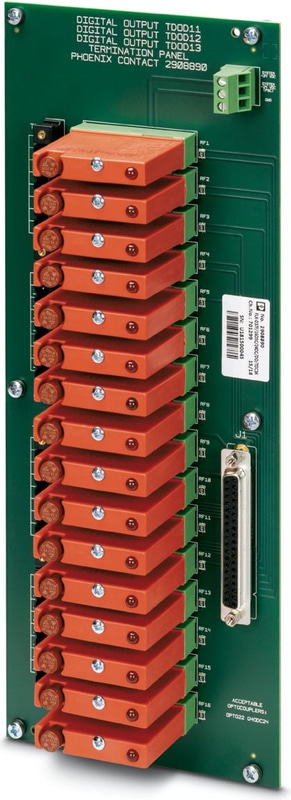

FLX-D37F/16OSC/24DC/DO/TDC3K - Active module
Migration board for converting TDC3000 to modern control platforms, digital output, 16 channel, SSR
- Panel mount to existing TDC3000 chassis
- Compatable with existing pluggable field wiring connectors
- DSUB control side connection
- Terminal blocks for power supply
- Per channel fusing
- LED blown fuse indication
Technical Specifications
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Supported controller HONEYWELL TDC3000
| Suitable I/O card | TDOD11 |
| Suitable I/O card | TDOD12 |
| Suitable I/O card | TDOD13 |
Input data
| Nominal input voltage UN | 24 V DC |
| Input voltage range | 19.5 V DC ... 32 V DC |
| Typical input current at UN | 18 mA |
| Typical response time | 100 µs |
| Typical release time | 750 µs |
Switching
| Maximum Switching Voltage | 60 V DC |
| Limiting Continuous Current | 1.25 A |
| Error detection (line break / short-circuit) | no |
Controller level
| Connection Method | D-SUB 37 female connector |
| Number of Connections | 1 |
| Number of Positions | 37 |
Field level
| Connection Method | pluggable |
Signaling
| Status display present | Yes |
Dimensions
| Width | 307.3 mm |
| Height | 120.7 mm |
| Depth | 73.1 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
| Altitude | < 2000 m |
| Permissible humidity (operation) | < 90 % |
Mounting
| Mounting Type | TDC3000 chassis |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Accessories
Why Proax for Phoenix Contact 2908890?
Proax is an authorized distributor of Phoenix Contact 2908890 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
