1029334
Official DistributorSKU
PHX1029334
MPN
FLX-D37M/SHORTING PLUG
Weight
0.042 kg
Series FLX-D

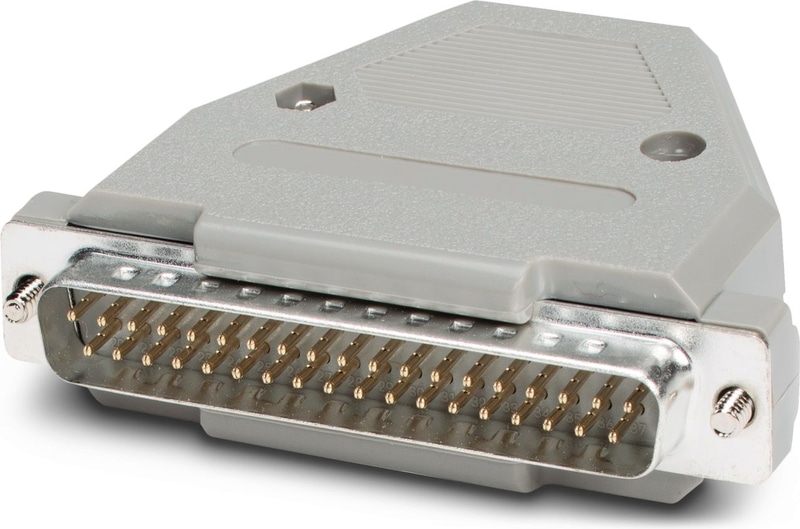

FLX-D37M/SHORTING PLUG - Plug-in bridge
Shorting plug for use in the TDC3000 migration boards
- DSUB control side connection
- Used on J2 header when common negative terminals are desired
Technical Specifications
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 30 V AC/DC |
| Nominal current IN | 5 A |
Dimensions
| Width | 69.49 mm |
| Height | 24.99 mm |
| Depth | 61.02 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
| Altitude | < 2000 m |
| Permissible humidity (operation) | < 90 % |
Why Proax for Phoenix Contact 1029334?
Proax is an authorized distributor of Phoenix Contact 1029334 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
