FLX-D37F/16RSC/24DC/DO/TDC3K - Active module

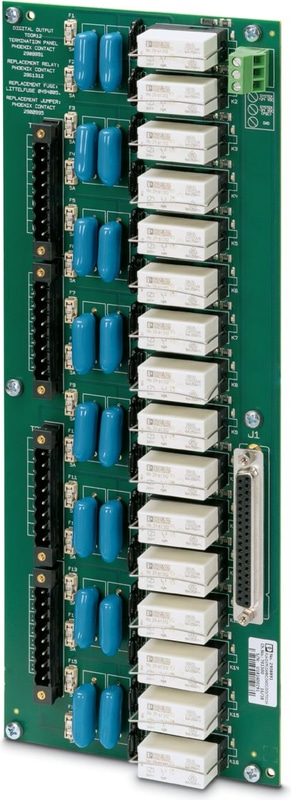

Migration board for converting TDC3000 to modern control platforms, digital output, 16 channel with relays
- Panel mount to existing TDC3000 chassis
- Compatable with existing pluggable field wiring connectors
- DSUB control side connection
- Terminal blocks for power supply
- Per channel fusing
Technical Specifications
Product properties
| Mechanical service life | 3x 10⁷ cycles |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Supported controller HONEYWELL TDC3000
| Suitable I/O card | TDOR12 |
Input data
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.8 ... 1.1 |
| Input voltage range | 19.2 V DC ... 26.4 V DC |
| Typical input current at UN | 20 mA |
| Typical response time | 8 ms |
| Typical release time | 10 ms |
| Protective circuit | Freewheeling diode; Freewheeling diode |
Switching
| Contact switching type | 1 changeover contact |
| Contact Material | AgNi |
| Maximum Switching Voltage | 125 V AC/DC |
| Minimum Switching Voltage | 12 V |
| Limiting Continuous Current | 5 A (fuse limited) |
| Min. switching current | 10 mA (at 12 V) |
| Interrupting rating (ohmic load) max. | 120 W (at 24 V DC) |
| Interrupting rating (ohmic load) max. | 58 W (at 48 V DC) |
| Interrupting rating (ohmic load) max. | 48 W (at 60 V DC) |
| Interrupting rating (ohmic load) max. | 50 W (110 V DC) |
| Interrupting rating (ohmic load) max. | 600 VA (120 V AC) |
| Error detection (line break / short-circuit) | no |
Controller level
| Connection Method | D-SUB 37 female connector |
| Number of Connections | 1 |
| Number of Positions | 37 |
Field level
| Connection Method | pluggable |
Signaling
| Status display present | Yes |
Dimensions
| Width | 307.3 mm |
| Height | 120.7 mm |
| Depth | 46.7 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
| Altitude | < 2000 m |
| Permissible humidity (operation) | < 90 % |
Mounting
| Mounting Type | TDC3000 chassis |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
