Official DistributorBy Rittal
SKU
Weight
4.8 kg

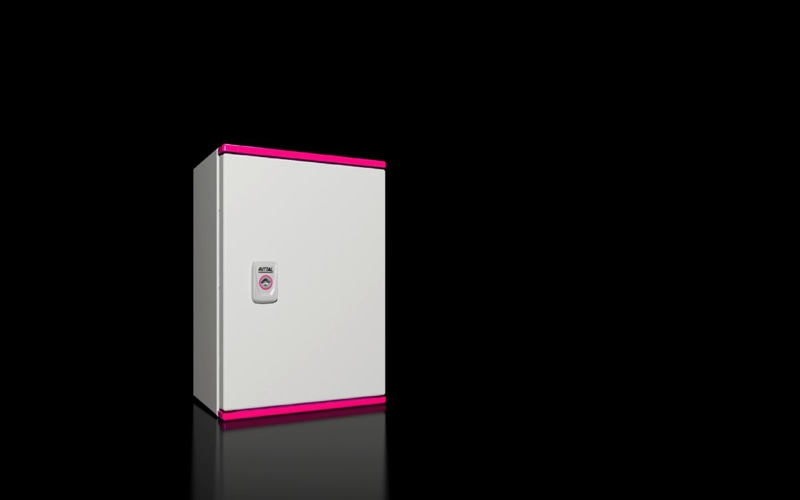

AX compact enclosure, fiberglass-reinforced polyester, WHD: 250x350x150 mm
Supply includes
Housing with hinged door, of all-round solid construction, 3 mm double-bit lock
Door catch on right, may be swapped to the left
Mounting plate
Twin seal on the top and bottom edges of the door as integral rain protection strip
AX Fiberglass-Reinforced Polyester Enclosures without viewing window
AX fiberglass-reinforced polyester enclosures are ideal for outdoor applications. Numerous mounting domes in the enclosure provide individual interior configuration options in a 25 mm pitch pattern, e.g. with punched sections and rails.
Technical Specifications
Dimensions
| Width | 250 mm |
| Height | 350 mm |
| Depth | 150 mm |
Material
| Housing and door | Fiberglass-reinforced unsaturated polyester |
| Door | All-round foamed-in PU seal |
| Mounting plate | Carbon steel |
Mounting plate
| Width | 155 mm |
| Height | 275 mm |
Surface finish
| Housing and door | Dyed plastic with no after-treatment |
| Mounting plate | Zinc-plated |
| Version | without viewing window |
| Product modification | As of May 2021, the fastening domes for interior finishing in the roof and floor area will be omitted for this model. This ensures that there is sufficient space for cable entry or cutouts. |
| Applications | Ambient temperature range: -30 °C...+75 °C |
| Color | Similar to RAL 7035 |
| Protection category NEMA | Type 1, 3R, 3RX, 4, 4X, 12 |
| Protection category IP to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, 3R, 3RX, 4, 4X, 12 |
| Protection category | II (at 1000 V AC) |
| IK code | IK09 |
| Material thickness – mounting plate | 2.5 mm |
| Door opening angle | 130° |
| No. of locks | 1 |
| Note | Interior installation screws are required to secure components inside the enclosure |
| Base material | Plastic |
| Standards | null |
| Weight/packaging unit | 4.8 kg |
| Customs tariff number | 94037000 |
| EAN | 4028177006348 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
