Official DistributorBy Rittal
SKU
Weight
7.04 kg

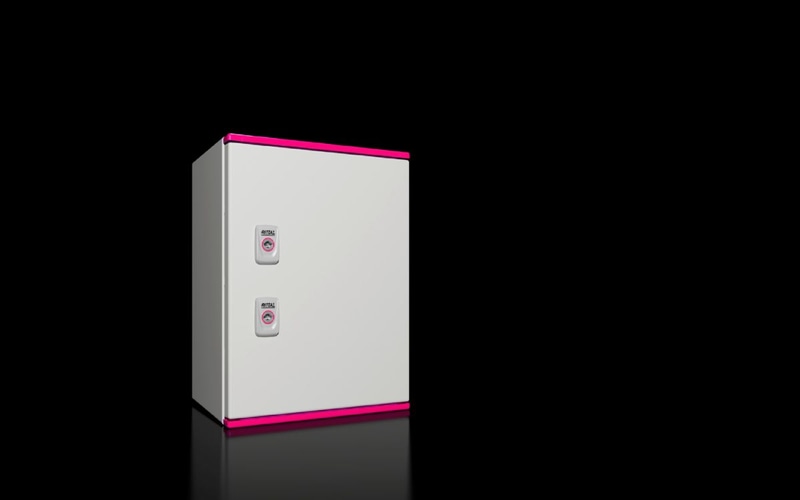

AX compact enclosure, fiberglass-reinforced polyester, WHD: 300x400x200 mm
Supply includes
Housing with hinged door, of all-round solid construction, 3 mm double-bit lock
Door catch on right, may be swapped to the left
Mounting plate
Twin seal on the top and bottom edges of the door as integral rain protection strip
AX Fiberglass-Reinforced Polyester Enclosures without viewing window
AX fiberglass-reinforced polyester enclosures are ideal for outdoor applications. Numerous mounting domes in the enclosure provide individual interior configuration options in a 25 mm pitch pattern, e.g. with punched sections and rails.
Technical Specifications
Dimensions
| Width | 300 mm |
| Height | 400 mm |
| Depth | 200 mm |
Material
| Housing and door | Fiberglass-reinforced unsaturated polyester |
| Door | All-round foamed-in PU seal |
| Mounting plate | Carbon steel |
Mounting plate
| Width | 205 mm |
| Height | 325 mm |
Surface finish
| Housing and door | Dyed plastic with no after-treatment |
| Mounting plate | Zinc-plated |
| Version | without viewing window |
| Product modification | As of May 2021, the fastening domes for interior finishing in the roof and floor area will be omitted for this model. This ensures that there is sufficient space for cable entry or cutouts. |
| Applications | Ambient temperature range: -30 °C...+75 °C |
| Color | Similar to RAL 7035 |
| Protection category NEMA | NEMA 1, 3R, 3RX, 4, 4X, 12 |
| Protection category IP to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, 3R, 3RX, 4, 4X, 12 |
| Protection category | II (at 1000 V AC) |
| IK code | IK09 |
| Material thickness – mounting plate | 2.5 mm |
| Door opening angle | 130° |
| No. of locks | 2 |
| Note | Interior installation screws are required to secure components inside the enclosure |
| Base material | Plastic |
| Standards | null |
| Weight/packaging unit | 7.04 kg |
| Customs tariff number | 94037000 |
| EAN | 4028177006409 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
Why Proax for Rittal 1434000?
Proax is an authorized distributor of Rittal 1434000 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
