Official DistributorBy Rittal
SKU
Weight
12.3 kg

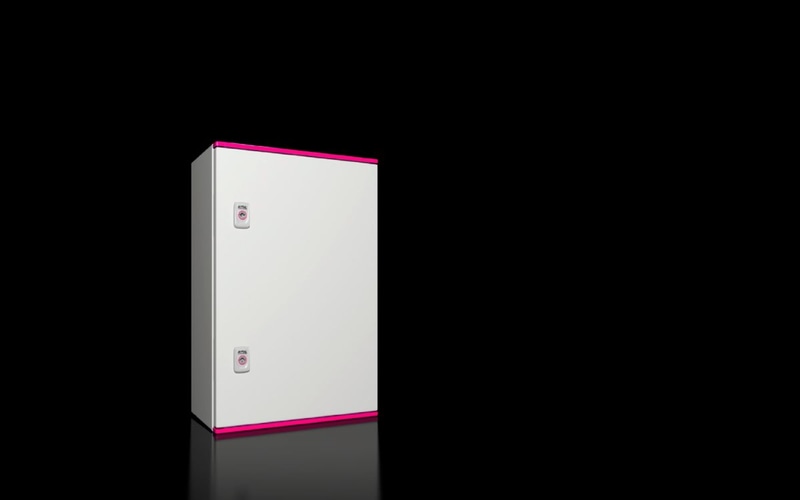

AX compact enclosure, fiberglass-reinforced polyester, WHD: 400x600x200 mm
Supply includes
Housing with hinged door, of all-round solid construction, 3 mm double-bit lock
Door catch on right, may be swapped to the left
Mounting plate
Twin seal on the top and bottom edges of the door as integral rain protection strip
AX Fiberglass-Reinforced Polyester Enclosures without viewing window
AX fiberglass-reinforced polyester enclosures are ideal for outdoor applications. Numerous mounting domes in the enclosure provide individual interior configuration options in a 25 mm pitch pattern, e.g. with punched sections and rails.
Technical Specifications
Dimensions
| Width | 400 mm |
| Height | 600 mm |
| Depth | 200 mm |
Material
| Housing and door | Fiberglass-reinforced unsaturated polyester |
| Door | All-round foamed-in PU seal |
| Mounting plate | Carbon steel |
Mounting plate
| Width | 305 mm |
| Height | 525 mm |
Surface finish
| Housing and door | Dyed plastic with no after-treatment |
| Mounting plate | Zinc-plated |
| Version | without viewing window |
| Product modification | As of February 2022 on, the mounting bosses for interior installation will be omitted in the floor area of this item. Sufficient space for cable entry or cut-outs are thus ensured. The changeover will take place gradually. |
| Applications | Ambient temperature range: -30 °C...+75 °C |
| Color | Similar to RAL 7035 |
| Protection category NEMA | NEMA 1, 3R, 3RX, 4, 4X, 12 |
| Protection category IP to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, 3R, 3RX, 4, 4X, 12 |
| Protection category | II (at 1000 V AC) |
| IK code | IK09 |
| Material thickness – mounting plate | 3 mm |
| Door opening angle | 130° |
| No. of locks | 2 |
| Note | Interior installation screws are required to secure components inside the enclosure |
| Base material | Plastic |
| Standards | null |
| Weight/packaging unit | 12.3 kg |
| Customs tariff number | 94037000 |
| EAN | 4028177006546 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
