Name: 4596000
Brand: Rittal
SKU: RIT4596000
Price: 245.6300 CAD
Availability: BackOrder

Official Distributor

By Rittal

SKU

Weight

5.04 kg

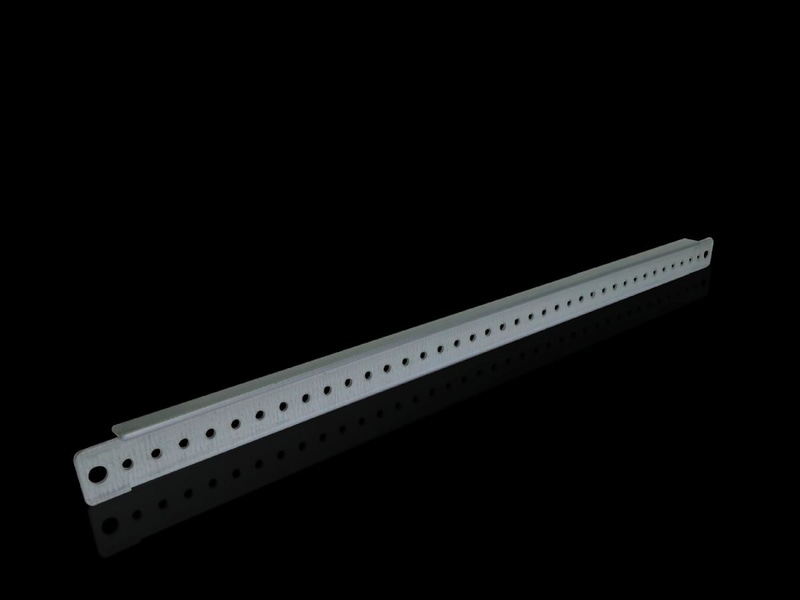

Series Support Strip for VX, TS, SE, TP, AX

TS support strip, for TS, VX SE, TP, for inner mounting level: for W/D: 500 mm, for door width: 600 mm, L: 490 mm

Supply includes

Assembly components

Support Strip for VX, TS, SE, TP, AX

For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment.

Suitable for

Enclosure Type	VX
To fit width/depth	500 mm

Technical specifications	4.5 mm diameter hole on a 25 mm hole pattern
Material	Carbon steel
Surface finish	Zinc-plated
Length	490 mm
Suitable for door width	600 mm
Installation options VX	In door width 600 mm
Installation options VX SE	In door width 600 mm
Installation options AX	In door width 600 mm, with 3-point lock system, in the lockable door
Installation options AX plastic	In door width 600 mm
Installation options PC	In door width 600 mm
Installation options IW	In door width 600 mm
Installation options TS	In door width 600 mm
Packaging unit	20 pc(s).
Weight/packaging unit	5.04 kg
Customs tariff number	73269098
EAN	4028177103764
ETIM 7.0	EC002620
ECLASS 8.0	27189261
