Official DistributorBy Rittal
SKU
Weight
6.16 kg
This product is Not Cancellable/Not Returnable

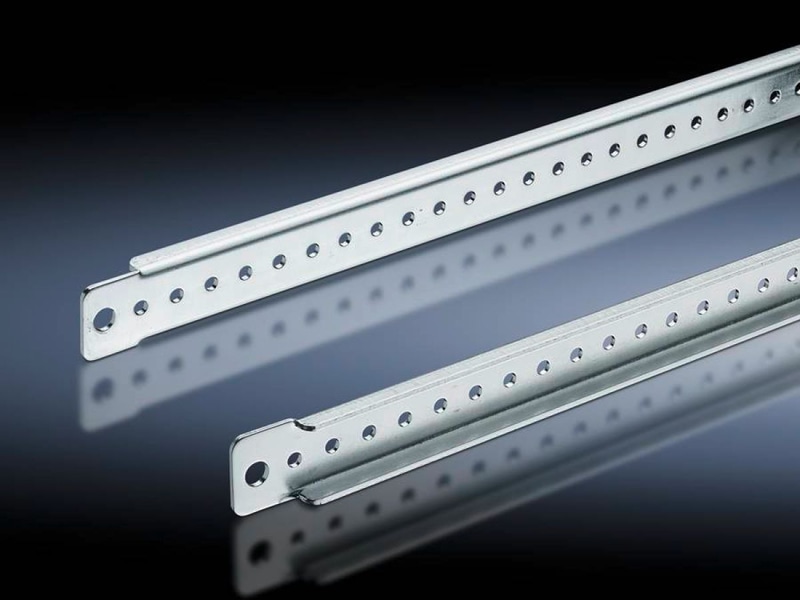

TS support strip, for TS, VX SE, TP, for inner mounting level: for W/D: 600 mm, L: 590 mm
Supply includes
Assembly components
Support Strip for VX, TS, SE, TP, AX
For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment.
Technical Specifications
Suitable for
| Enclosure Type | TS |
| To fit width/depth | 600 mm |
| Technical specifications | 4.5 mm diameter hole on a 25 mm hole pattern |
| Material | Carbon steel |
| Surface finish | Zinc-plated |
| Length | 590 mm |
| Installation options VX SE | In enclosure width/depth 600 mm, on the inner mounting level |
| Installation options AX | In enclosure height 700 mm and in enclosure width 600 mm, in conjunction with rail for interior installation AX |
| Installation options PC | In enclosure width 600 mm, on the inner mounting level |
| Installation options IW | In enclosure width/depth 600 mm, on the inner mounting level |
| Installation options TS | In enclosure width/depth 600 mm, on the inner mounting level |
| Installation options TP | In TP pedestal and one-piece console pedestal width 600 mm, in conjunction with rail for interior installation TP, compact enclosure HD |
| Packaging unit | 20 pc(s). |
| Weight/packaging unit | 6.16 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177212503 |
| ETIM 7.0 | EC002620 |
| ECLASS 8.0 | 27189261 |
