Rittal 4695000
AllEnclosuresWall-mounted Industrial EnclosuresAX Fiberglass-Reinforced Polyester EnclosuresAccessories for the AX plastic enclosure
RittalOfficial Distributor

By Rittal

SKU
Weight
4.6 kg

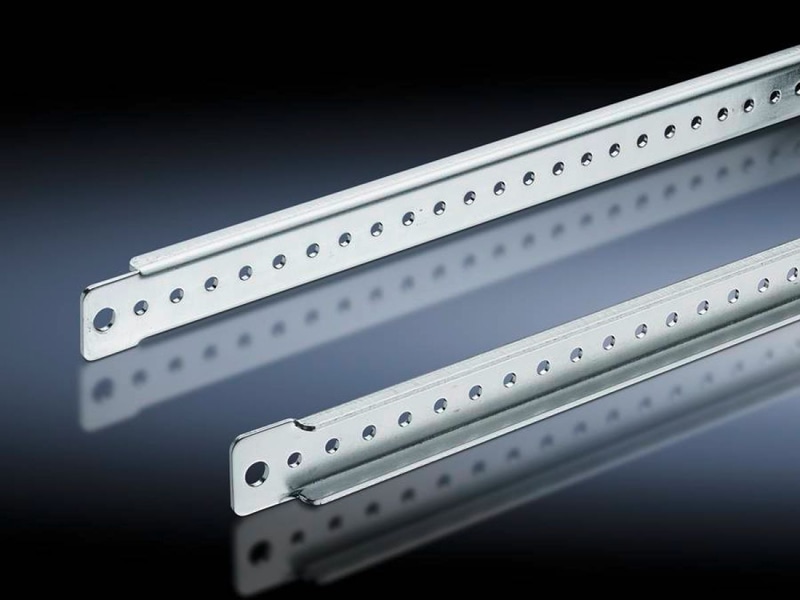

TS support strip, for VX, TS, VX SE, TP, for outer mounting level: for W/D: 500 mm, L: 440 mm

Supply includes

Assembly components

Support Strip for VX, TS, SE, TP, AX

For simple attachment of cable ducts, cable conduit holders, contact hazard protection cover plates, equipment installed on the door, cable clamping and attachment.
Technical Specifications

Suitable for

Enclosure TypeVX
To fit width/depth500 mm

Technical specifications4.5 mm diameter hole on a 25 mm hole pattern
MaterialCarbon steel
Surface finishZinc-plated
Length440 mm
Installation options VXIn enclosure depth 500 mm
Installation options VX SEIn enclosure depth 500 mm, on the outer mounting level
Installation options AXIn door width 500 mm, with cam lock
Installation options TSIn enclosure width/depth 500 mm, on the outer mounting level
Installation options AEIn enclosure width/height 500 mm, in conjunction with rail for interior installation AE
Installation options TPIn TP pedestal and one-piece console pedestal, in enclosure depth 500 mm, in conjunction with rail for interior installation for TP, compact enclosure HD
Packaging unit20 pc(s).
Weight/packaging unit4.6 kg
Customs tariff number73269098
EAN4028177108134
ETIM 7.0EC002620
ECLASS 8.027189261
