Official DistributorBy Rittal
SKU
Weight
0.351 kg
Series LED system light
SZ System Light LED, 600 Lumen, L: 337 mm, 100-240 V
Supply includes
Assembly screws

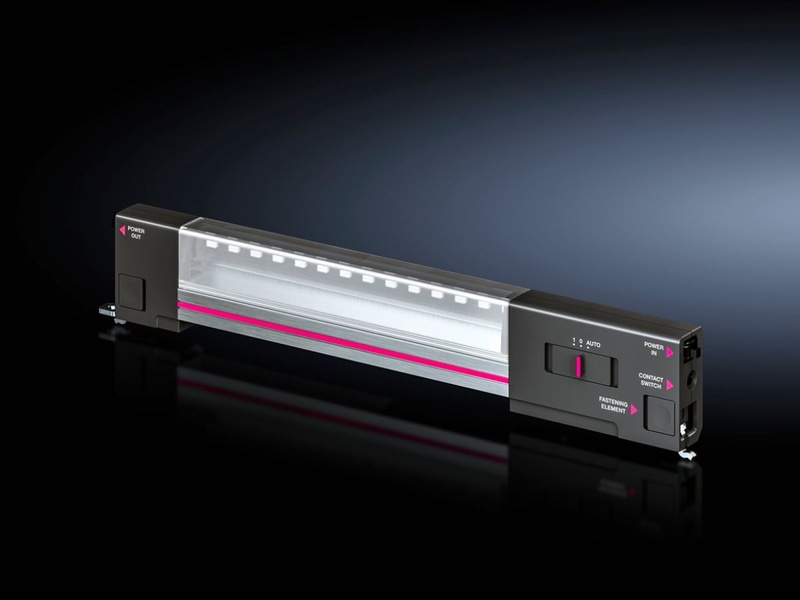

LED system light
LED system light - the first light designed especially for enclosures! Advanced LED technology provides even more light into the last recess.
Technical Specifications
Dimensions
| Width | 337 mm |
| Height | 55 mm |
| Depth | 23 mm |
Material
| Light body | Extruded aluminum |
| Light cover | Polycarbonate |
| Light ends | PC-ABS |
| Version | without socket |
| Benefits | Optimum illumination of the entire enclosure |
| Color | Enclosure: RAL 7016 |
| Rated power | 7 W |
| Connection options | Power Supply, 2-pole |
| Protection category | II (total insulation) |
| Light – installation type | Screw fastening |
| Installation options | The internal mounting rail AX and the mounting bracket are required when installing in compact enclosures |
| Luminous flux | 600 lm |
| Light color | 4000 K (neutral white) |
| Note | Connection accessories should be ordered separately |
| Operating temperature range | -20 °C...55 °C |
| Rated operating voltage | 100 V - 240 V, 1~, 50 Hz/60 Hz |
| Protection category IP to IEC 60 529 | IP 20 |
| Weight/packaging unit | 0.351 kg |
| Customs tariff number | 94054990 |
| EAN | 4028177806948 |
| ETIM 7.0 | EC000321 |
| ECLASS 8.0 | 27189241 |
Why Proax for Rittal 2500110?
Proax is an authorized distributor of Rittal 2500110 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
