Official DistributorBy Rittal
SKU
Weight
16.86 kg
Series PLS Special Busbars, E-Cu

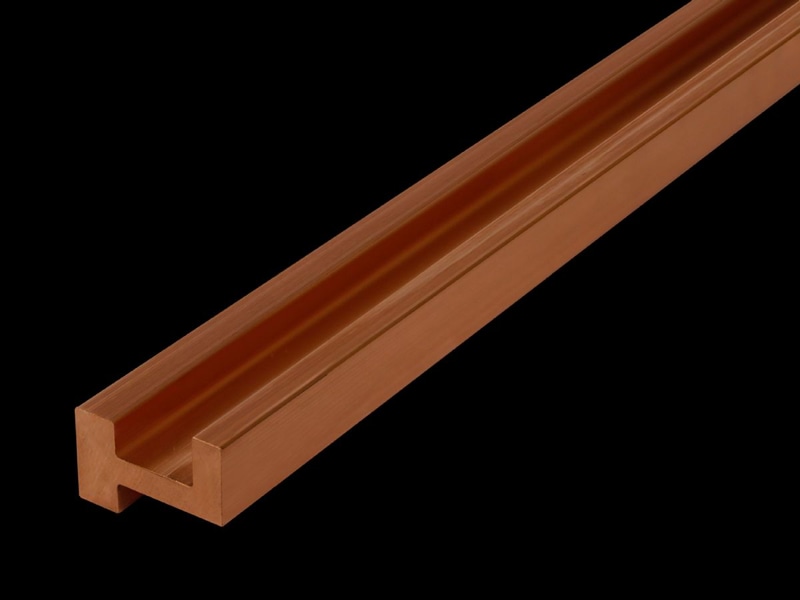

SV PLS special busbar E-Cu, L: 695 mm, PLS 1600, bar thickness: 10 mm, 900 mm² bar cross-section
PLS Special Busbars, E-Cu
Lengths range from 495 mm to 2400 mm.
Technical Specifications
Dimensions
| Length | 695 mm |
Suitable for
| Width | = 800 mm |
| Material | E-Cu |
| Bar thickness | 10 mm |
| Cross-section | 900 mm² |
| Length | 695 mm |
| Note | May be cut to length as required |
| Busbar type | Busbar E-Cu |
| Suitable for busbar system | RiLine60 (with PLS 1600) |
| Packaging unit | 3 pc(s). |
| Weight/packaging unit | 16.86 kg |
| Copper weight (kg per piece) | 5.62 |
| Customs tariff number | 74071000 |
| EAN | 4028177043787 |
| ETIM 7.0 | EC001522 |
| ECLASS 8.0 | 27370303 |
Why Proax for Rittal 3528000?
Proax is an authorized distributor of Rittal 3528000 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
