Official DistributorBy Rittal
SKU
Weight
0.368 kg
Series PLS Busbar Supports

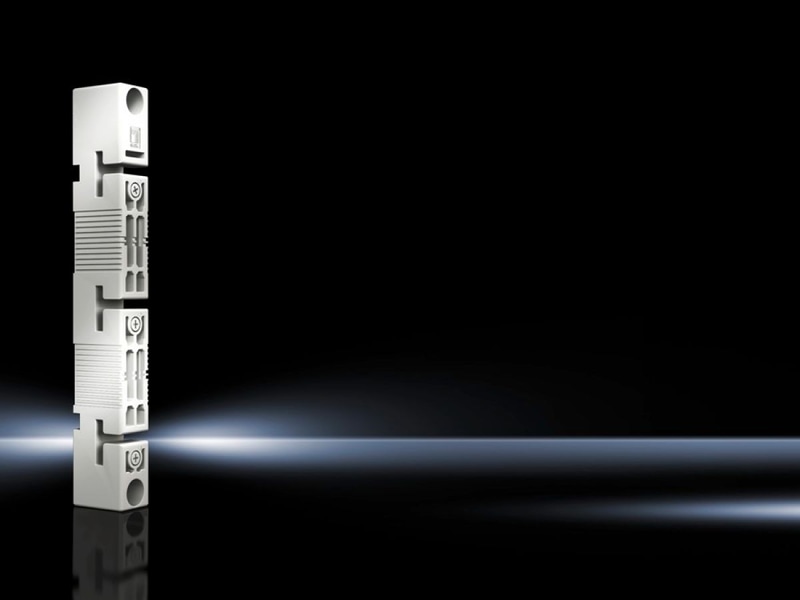

SV Busbar support, PLS 800, 3-pole, 60 mm bar centre distance, UL design
PLS Busbar Supports
For PLS special busbars 800 A/1600 A, 3-pole and 4-pole, suitable for top-mounting.
Technical Specifications
| Material | Polyamide Fire protection corresponding to UL 94-V0 |
| Color | RAL 7035 |
| Rated operating voltage | 1000 V, 3~ |
| Electrical UL ratings (SCCR) | 14 kA - 600 V, support spacing 150 mm, busbars PLS 800 |
| Note on Model No. | The use of a base tray is required for UL applications. |
| Top-mounting | Yes |
| Number of Poles | 3-pole |
| Suitable for busbars | PLS 800 |
| With internal attachment | Yes |
| Center-to-center spacing of busbars | 60 mm |
| Packaging unit | 4 pc(s). |
| Weight/packaging unit | 0.368 kg |
| Customs tariff number | 85469010 |
| EAN | 4028177525634 |
| ETIM 7.0 | EC001166 |
| ECLASS 8.0 | 27400607 |
Why Proax for Rittal 9341050?
Proax is an authorized distributor of Rittal 9341050 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
