SKU
Weight
0.592 kg
Series PLS Busbar Supports

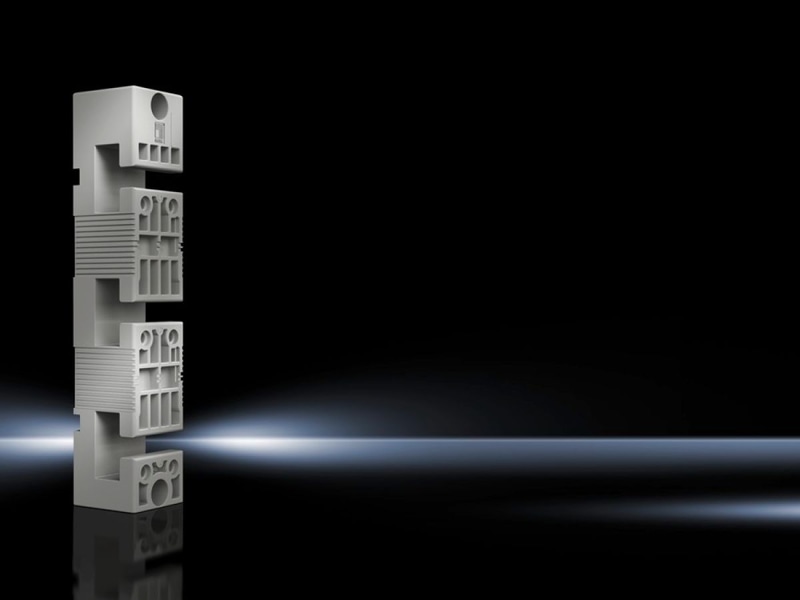

SV Busbar support, PLS 1600, 3-pole, 60 mm bar centre distance, UL design
PLS Busbar Supports
For PLS special busbars 800 A/1600 A, 3-pole and 4-pole, suitable for top-mounting.
Technical Specifications
| Material | Polyamide Fire protection corresponding to UL 94-V0 |
| Color | RAL 7035 |
| Rated operating voltage | 1000 V, 3~ |
| Electrical UL ratings (SCCR) | 25 kA - 600 V, support spacing 500 mm, busbars PLS 1600 |
| Note on Model No. | The use of a base tray is required for UL applications. |
| Top-mounting | Yes |
| Number of Poles | 3-pole |
| Suitable for busbars | PLS 1600 |
| With internal attachment | Yes |
| Center-to-center spacing of busbars | 60 mm |
| Packaging unit | 4 pc(s). |
| Weight/packaging unit | 0.592 kg |
| Customs tariff number | 85469010 |
| EAN | 4028177525641 |
| ETIM 7.0 | EC001166 |
| ECLASS 8.0 | 27400607 |
