Official DistributorSKU
MPN
EM-DUO 120/15/GFI/V/H
Weight
0.033 kg
This product is Not Cancellable/Not Returnable
Series EM-DUO

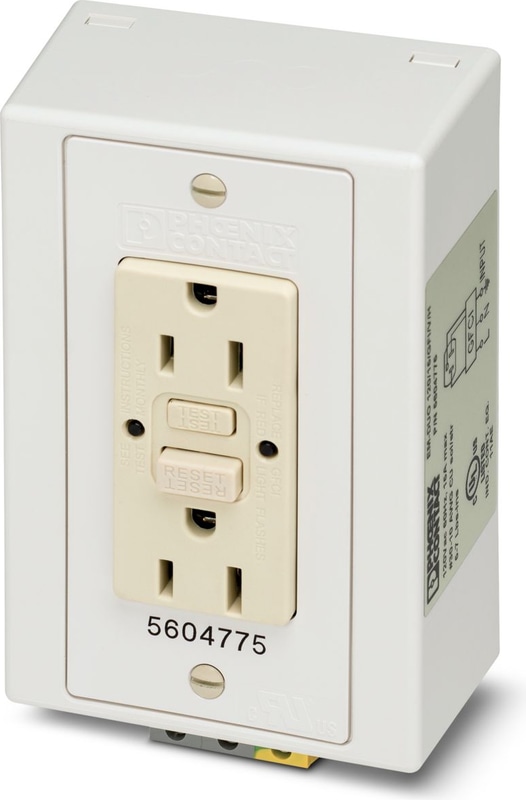

EM-DUO 120/15/GFI/V/H - Socket
Rail-mounted dual socket with integrated fault current circuit breaker. For vertical or horizontal mounting on 35 mm DIN rail per EN 60715. Housing color: ivory. Receptacle style: USA. Connection type: screw.
Technical Specifications
Trade restriction
| CE note | The products are offered exclusively for export outside the EU and the European Economic Area. |
Product properties
| For country-specific use in | USA |
| For country-specific use in | Canada |
| For country-specific use in | Japan |
| For country-specific use in | Mexico |
| For country-specific use in | Saudi Arabia |
| For country-specific use in | Taiwan |
| For country-specific use in | Venezuela |
Electrical properties
| Nominal voltage UN | 125 V AC |
| Nominal current IN | 15 A |
Connection data
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section rigid | 0.2 mm² ... 6 mm² |
| Cross section AWG | 30 ... 10 |
| Screw thread | M3 |
Material specifications
| Color | ivory |
| Insulating material | PVC 94 V0 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
Standards
| Standards/regulations | UL 508 |
| Standards/regulations | CSA 22.2 |
Why Proax for Phoenix Contact 5604775?
Proax is an authorized distributor of Phoenix Contact 5604775 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
