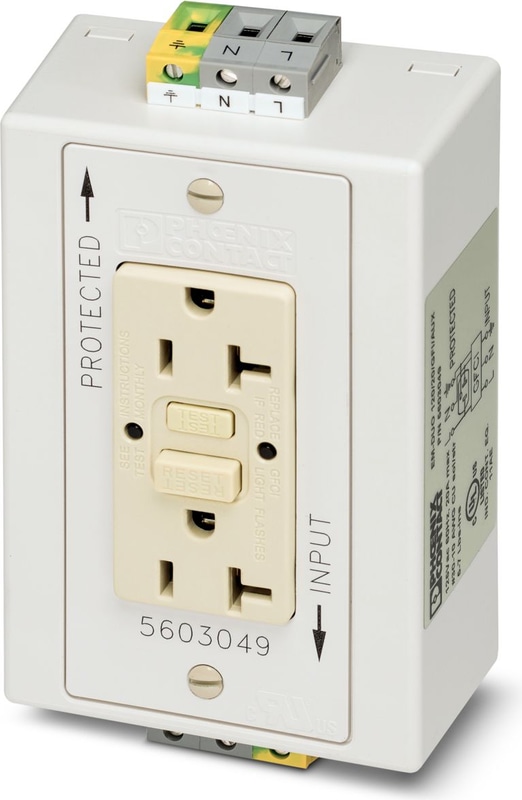

Official DistributorEM-DUO 120/20/GFI/AUX - Socket
Rail-mounted dual power outlet with two 120 V AC/20 A receptacles equipped with ground fault circuit interruption (GFCI) for 35 mm DIN rail per EN 60715. GFCI protects against shock hazards associated with ground shorts. For enhanced safety, the grounding pin is located at the top to prevent shorting between the hot and neutral blades. Auxiliary terminals allow connection of auxiliary devices for protection by the GFCI outlet.Housing color: Ivory. National version: USA. Connection type: Screw.
Trade restriction
| CE note | The products are offered exclusively for export outside the EU and the European Economic Area. |
Product properties
| For country-specific use in | USA |
| For country-specific use in | Canada |
| For country-specific use in | Mexico |
| For country-specific use in | Bahamas |
| For country-specific use in | Bermuda |
| For country-specific use in | Columbia |
| For country-specific use in | Costa Rica |
| For country-specific use in | Ecuador |
| For country-specific use in | El Salvador |
| For country-specific use in | Panama |
| For country-specific use in | Puerto Rico |
| For country-specific use in | Taiwan |
| For country-specific use in | Venezuela |
| For country-specific use in | Virgin Islands |
| Response time | 25 ms (6 mA) |
Electrical properties
| Nominal voltage UN | 125 V AC |
| Nominal current IN | 20 A |
Connection data
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section flexible | 4 mm² |
| Conductor cross section rigid | 6 mm² |
| Cross section AWG | 10 |
| Screw thread | M3 |
Dimensions
| Width | 92 mm |
| Height | 143 mm |
| Depth | 49 mm |
Material specifications
| Color | ivory |
| Insulating material | Polycarbonate & ABS blend |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
Standards
| Standards/regulations | UL 508 |
| Standards/regulations | CSA 22.2 |
Why Proax for Phoenix Contact 5603049?
Proax is an authorized distributor of Phoenix Contact 5603049 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Pack Size | 1 |
