Official DistributorSKU
MPN
EM-DUO 120/20/SW0
Weight
0.033 kg
Series EM-DUO

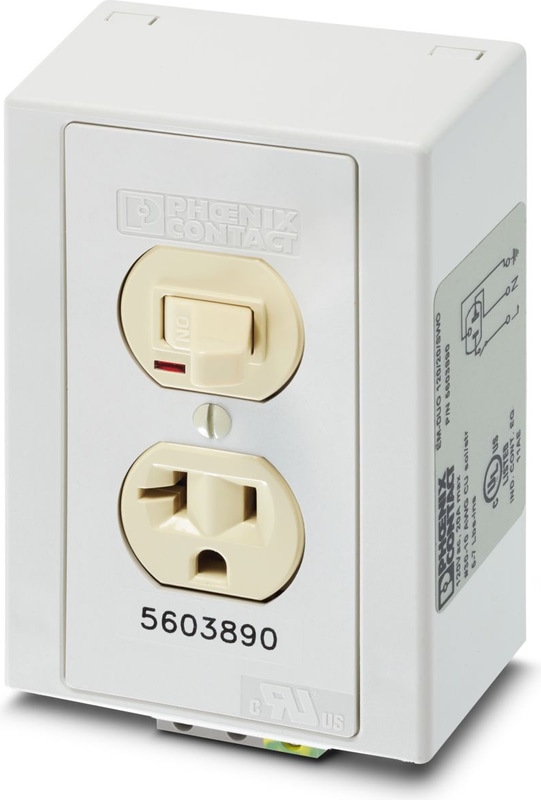

EM-DUO 120/20/SW0 - Socket
Fully enclosed, rail-mounted utility outlet for mounting on 35 mm DIN rail per EN 60715. The 120 V AC/20 A receptacle can be turned on and off with the switch. An indicator light illuminates when the receptacle is active and voltage is present.Housing color: ivory. National version: USA. Connection type: screw.
Technical Specifications
Trade restriction
| CE note | The products are offered exclusively for export outside the EU and the European Economic Area. |
Product properties
| For country-specific use in | USA |
| For country-specific use in | Canada |
| For country-specific use in | Mexico |
| For country-specific use in | Bahamas |
| For country-specific use in | Bermuda |
| For country-specific use in | Columbia |
| For country-specific use in | Costa Rica |
| For country-specific use in | Ecuador |
| For country-specific use in | El Salvador |
| For country-specific use in | Panama |
| For country-specific use in | Puerto Rico |
| For country-specific use in | Taiwan |
| For country-specific use in | Venezuela |
| For country-specific use in | Virgin Islands |
Electrical properties
| Nominal voltage UN | 125 V AC |
| Nominal current IN | 20 A |
Connection data
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section flexible | 4 mm² |
| Conductor cross section rigid | 6 mm² |
| Cross section AWG | 10 |
| Screw thread | M3 |
Dimensions
| Width | 82 mm |
| Height | 135 mm |
| Depth | 135 mm |
Material specifications
| Color | ivory |
| Insulating material | Polycarbonate & ABS blend |
| Static insulating material application in cold | -60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 60 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Standards
| Standards/regulations | UL 508 |
| Standards/regulations | CSA 22.2 |
