Official DistributorSKU
MPN
EM-DUO/120/15/GFI
Weight
0.294 kg
Series EM-DUO

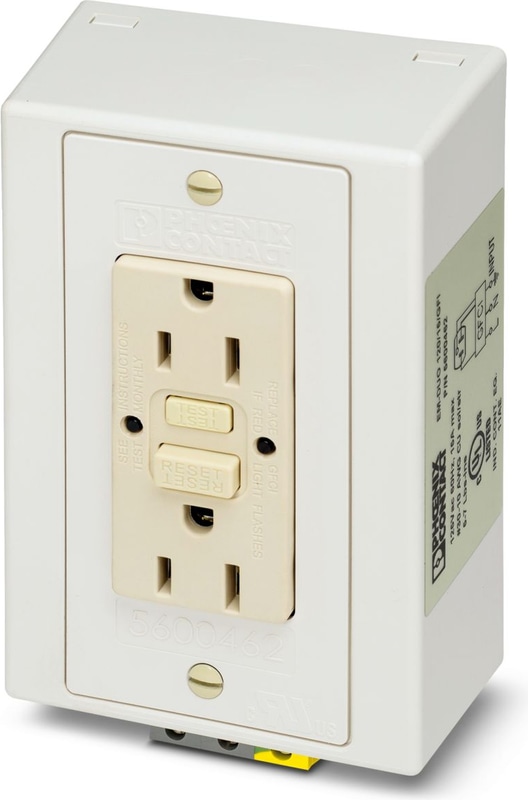

EM-DUO/120/15/GFI - Socket
Rail-mounted dual power outlet with two 120 V AC/15 A receptacles equipped with ground fault circuit interruption (GFCI) for 35 mm DIN rail per EN 60715. GFCI protects against shock hazards associated with ground shorts. For enhanced safety, the grounding pin is located at the top to prevent shorting between the hot and neutral blades.Housing color: ivory. National version: USA. Connection type: screw.
Technical Specifications
Trade restriction
| CE note | The products are offered exclusively for export outside the EU and the European Economic Area. |
Product properties
| For country-specific use in | USA |
| For country-specific use in | Canada |
| For country-specific use in | Mexico |
| For country-specific use in | Bahamas |
| For country-specific use in | Bermuda |
| For country-specific use in | Columbia |
| For country-specific use in | Costa Rica |
| For country-specific use in | Ecuador |
| For country-specific use in | El Salvador |
| For country-specific use in | Panama |
| For country-specific use in | Puerto Rico |
| For country-specific use in | Taiwan |
| For country-specific use in | Venezuela |
| For country-specific use in | Virgin Islands |
| Response time | 25 ms (6 mA) |
Electrical properties
| Nominal voltage UN | 125 V AC |
| Nominal current IN | 15 A |
Connection data
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section flexible | 4 mm² |
| Conductor cross section rigid | 6 mm² |
| Cross section AWG | 10 |
| Screw thread | M3 |
Dimensions
| Width | 82 mm |
| Height | 135 mm |
| Depth | 49 mm |
Material specifications
| Color | ivory |
| Insulating material | Polycarbonate & ABS blend |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
Standards
| Standards/regulations | UL 508 |
| Standards/regulations | UL 943 |
| Standards/regulations | CSA 22.2 |
