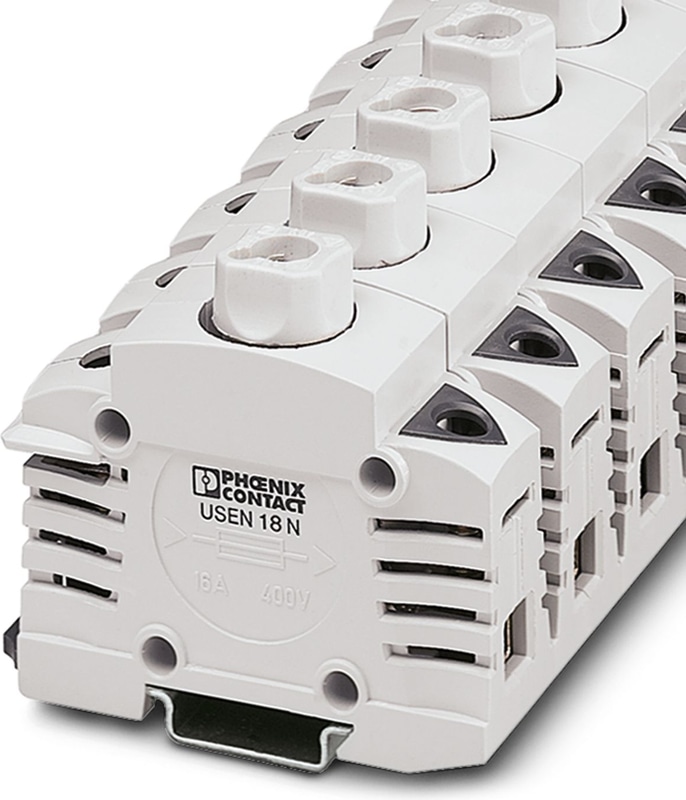

USEN 18 N - Fuse modular terminal block

Fuse modular terminal block, fuse type: Screw cartridge, fuse type: D 02 / E 18, nom. voltage: 400 V, nominal current: 63 A, connection method: Screw connection, Rated cross section: 35 mm2, cross section: 1.5 mm2- 35 mm2, mounting type: NS 35/7,5, NS 35/15, color: light gray

The NEOZED® system features an impressive high current carrying capacity
These fuse terminal blocks are designed for NEOZED® fuses

Notes

Note on application

for NEOZED fuse-links

Product properties

Pitch	27 mm
Number of Connections	2
Number of rows	1
Potentials	1

Insulation characteristics

Overvoltage category	III
Degree of pollution	2

Electrical properties

Fuse type	Screw cartridge
Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	4.06 W
Fuse	D 02 / E 18

Connection data

Number of connections per level	2
Nominal cross section	35 mm²

Level 1

Screw thread	M6
Tightening torque	3.5 ... 4 Nm
Stripping length	19 mm
Internal cylindrical gage	B8
Conductor cross section rigid	1.5 mm² ... 35 mm²
Cross section AWG	14 ... 2 (converted acc. to IEC)
Conductor cross section flexible	1.5 mm² ... 35 mm²
Conductor cross section, flexible [AWG]	14 ... 2 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	1.5 mm² ... 25 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	1.5 mm² ... 25 mm²
Cross-section with insertion bridge, rigid	25 mm²
Cross-section with insertion bridge, flexible	25 mm²
2 conductors with same cross section, solid	1.5 mm² ... 10 mm²
2 conductors with same cross section, flexible	1.5 mm² ... 10 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	1.5 mm² ... 10 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	1.5 mm² ... 10 mm²
Nominal Current	63 A (the current is determined by the fuse used)
Maximum Load Current	63 A (with 35 mm² conductor cross section)
Nominal Voltage	400 V (the voltage is determined by the fuse used)
Nominal cross section	35 mm²

Dimensions

Width	27 mm
Height	84 mm
Depth on NS 35/7,5	75 mm
Depth on NS 35/15	82.5 mm
Pitch	27 mm

Material specifications

Color	light gray
Flammability rating according to UL 94	V2
Insulating material group	IIIa
Relative insulation material temperature index (Elec., UL 746 B)	125 °C

Mechanical data

Open side panel

Ambient conditions

Ambient Temperature (Operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Mounting

Mounting Type	NS 35/7,5
Mounting Type	NS 35/15

0913016
S 2 A/380 V - Fuse insert, nom. voltage: 400 V, nominal current: 2 A, diameter: 11 mm, color: pink
0913029
S 4 A/380 V - Fuse insert, nom. voltage: 400 V, nominal current: 4 A, diameter: 11 mm, color: brown
0913032
S 6 A/380 V - Fuse insert, nom. voltage: 400 V, nominal current: 6 A, diameter: 11 mm, color: green
0913045
S 10 A/380 V - Fuse insert, nom. voltage: 400 V, nominal current: 10 A, diameter: 11 mm, color: red
0913058
S 16 A/380 V - Fuse insert, nom. voltage: 400 V, nominal current: 16 A, diameter: 11 mm, color: gray
0913061
S 20 A/380 V - Fuse insert, nom. voltage: 400 V, nominal current: 20 A, diameter: 15 mm, color: blue
0913074
S 25 A/380 V - Fuse insert, nom. voltage: 400 V, nominal current: 25 A, diameter: 15 mm, color: yellow
0913087
S 35 A/380 V - Fuse insert, nom. voltage: 400 V, nominal current: 35 A, diameter: 15 mm, color: black
0913090
Fuse insert, nom. voltage: 400 V, nominal current: 50 A, diameter: 15 mm, color: white
0913100
S 63 A/380 V - Fuse insert, nom. voltage: 400 V, nominal current: 63 A, diameter: 15 mm, color: copper-colored
0913210
HS 2 A - Adapter sleeve, nominal current: 2 A, color: pink
0913223
HS 4 A, Adapter sleeve, nominal current: 4 A, color: brown
0913236
HS 6 A - Adapter sleeve, nominal current: 6 A, color: green
0913249
HS 10 A - Adapter sleeve, nominal current: 10 A, color: red
0913252
HS 16 A, Adapter sleeve, nominal current: 16 A, color: gray
0913155
HS 20 A - Adapter sleeve, nominal current: 20 A, color: blue
0913168
HS 25 A - Adapter sleeve, nominal current: 25 A, sleeve length: 10.5 mm, diameter: 16.5 mm, color: yellow
0913171
HS 35 A, Adapter sleeve, nominal current: 35 A, color: black
0913184
HS 50 A, Adapter sleeve, nominal current: 50 A, color: white
0913317
SH-SE 14/18 - NEOZED special spring, for using fuse inserts D 01, in threaded caps D 02, for 2 A ... 16 A
0814270
Marker carriers - MA 20X 8 BK
1206612
Screwdriver - SZF 3-1,0X5,5
3009341
EB 36-27 - Insertion bridge, pitch: 27 mm, number of positions: 36, color: gray
3009354
EB 36-27/L1-L2-L3 - Insertion bridge, pitch: 27 mm, number of positions: 36, color: gray
0801733
NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
0801681
NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1204119
NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1204122
NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
0801704
NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1206421
DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1206434
NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
0801762
NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
1206560
NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
1201442
E/UK - End bracket, Mounting on a DIN rail NS 32 or NS 35, material: PA, color: gray
1201413
E/UK 1 - End clamps, for supporting the ends of double-level and three-level terminal blocks, width: 10 mm, color: gray
