0913058
Official DistributorSKU
PHX0913058
MPN
S 16 A/380 V
Weight
0.007 kg
This product is Not Cancellable/Not Returnable

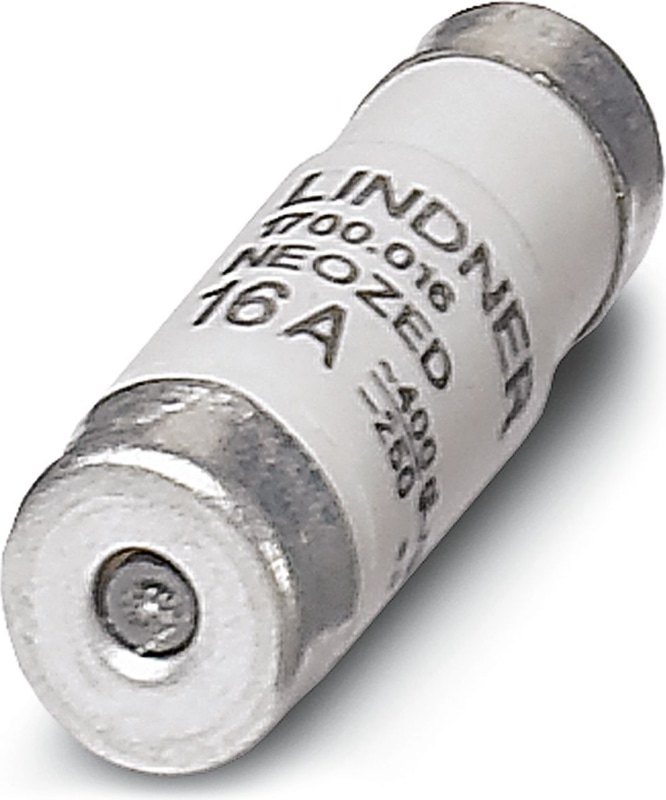

S 16 A/380 V - Fuse insert
Fuse insert, nom. voltage: 400 V, nominal current: 16 A, diameter: 11 mm, color: gray
- Contains no lead, cadmium, chromium 6 (RoHS-compliant)
- Colored indicating pins on the butt contact show the operating state
- NEOZED® fuse-links with gG characteristic for protecting lines and equipment
- Safe shutoff of impermissible overcurrents and short-circuit currents up to the nominal shutoff current
Technical Specifications
Electrical properties
| Nominal current IN | 16 A |
| Fuse | 16 A gL/gK NEOZED (without fault display) |
Connection data
| Nominal Current | 16 A |
| Nominal Voltage | 400 V AC (250 V DC) |
Dimensions
| Diameter | 11 mm |
Material specifications
| Color | gray |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 85 °C |
| Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Why Proax for Phoenix Contact 0913058?
Proax is an authorized distributor of Phoenix Contact 0913058 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
