0913045
Official DistributorSKU
PHX0913045
MPN
S 10 A/380 V
Weight
0.007 kg
This product is Not Cancellable/Not Returnable

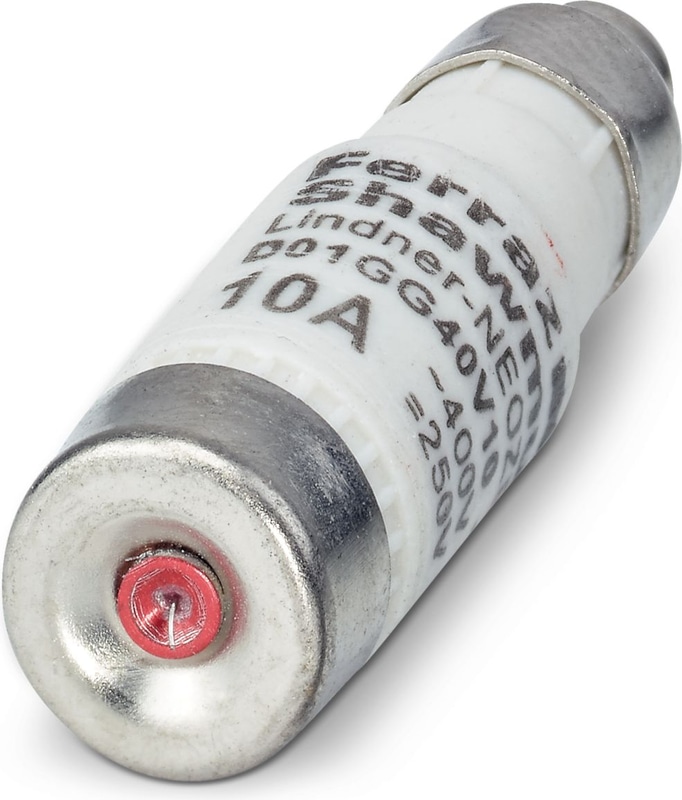

S 10 A/380 V - Fuse insert
Fuse insert, nom. voltage: 400 V, nominal current: 10 A, diameter: 11 mm, color: red
- Colored indicating pins on the butt contact show the operating state
- Safe shutoff of impermissible overcurrents and short-circuit currents up to the nominal shutoff current
- Contains no lead, cadmium, chromium 6 (RoHS-compliant)
- NEOZED® fuse-links with gG characteristic for protecting lines and equipment
Technical Specifications
Electrical properties
| Nominal current IN | 10 A |
| Fuse | 10 A gL/gK NEOZED (without fault display) |
Connection data
| Nominal Current | 10 A |
| Nominal Voltage | 400 V AC (250 V DC) |
Dimensions
| Diameter | 11 mm |
Material specifications
| Color | red |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 85 °C |
| Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
