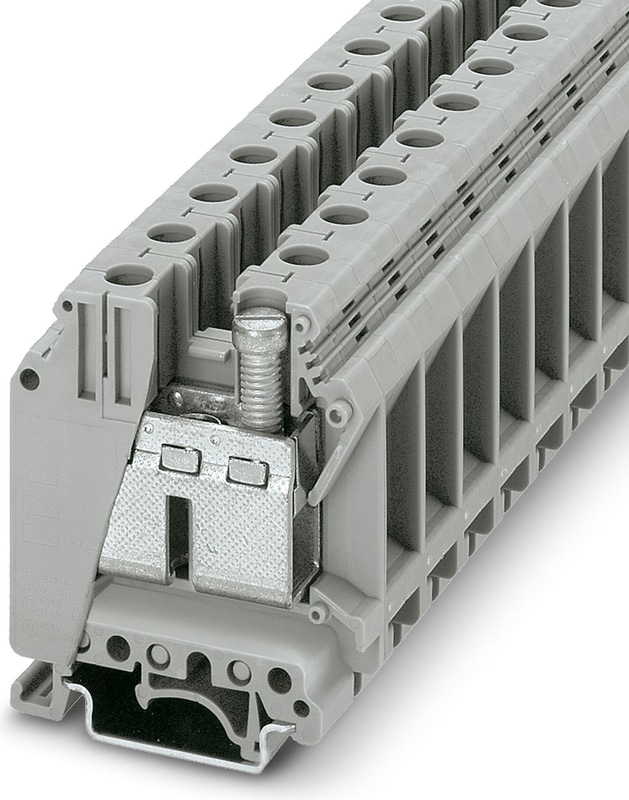

UK 35 - Feed-through terminal block

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 2, connection method: Screw connection, cross section: 0.75 mm2 - 50 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray

  • The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
  • As well as saving space, the compact design enables user-friendly wiring in a small amount of space
  • Optimum screwdriver guidance through closed screw shafts
Technical Specifications

Product properties

Number of Connections2
Number of rows1
Potentials1

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Electrical properties

Rated surge voltage8 kV
Maximum power dissipation for nominal condition4.06 W

Connection data

Number of connections per level2
Nominal cross section35 mm²
Rated cross section AWG2

Level 1 above 1 below 1

Screw threadM6
Tightening torque3.2 ... 3.7 Nm
Stripping length16 mm
Internal cylindrical gageB9
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid0.75 mm² ... 50 mm²
Cross section AWG18 ... 2 (converted acc. to IEC)
Conductor cross section flexible0.75 mm² ... 35 mm²
Conductor cross section, flexible [AWG]18 ... 2 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.75 mm² ... 35 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.75 mm² ... 35 mm²
2 conductors with same cross section, solid0.75 mm² ... 16 mm²
2 conductors with same cross section, flexible0.75 mm² ... 10 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.75 mm² ... 10 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.75 mm² ... 6 mm²
Nominal Current125 A
Maximum Load Current150 A (with 50 mm² conductor cross section)
Nominal Voltage1000 V

Rated data (ATEX/IECEx)

Identification II 2 GD  Ex eb IIC Gb
Operating temperature range-60 °C ... 110 °C
Ex-certified accessories3008096 TP-UK 35
Ex-certified accessories1205079 SZS 1,0X6,5 VDE
Ex-certified accessories1201442 E/UK
List of bridgesFixed bridge / FBI 2-15 / 0201333
List of bridgesFixed bridge / FBI 3-15 / 0201278
Bridge data118.5 A / 35 mm²
List of bridgesInsertion bridge / EB 2-15 K/UK 35 / 0205119
List of bridgesInsertion bridge / EB 10-15 / 0205135
Bridge data105.5 A / 35 mm²
List of bridgesChain bridge / KBI- 15 / 0205203
Bridge data116 A / 35 mm²
Ex temperature increase40 K (130.5 A / 35 mm²)
Rated voltage690 V
at bridging with insertion bridge690 V
for bridging with bridge690 V
Rated Insulation Voltage630 V
Output(Permanent)

Ex level General

Rated current118.5 A
Maximum Load Current147 A
Contact resistance0.08 mΩ

Ex connection data General

Torque range3.2 Nm ... 3.7 Nm
Nominal cross section35 mm²
Rated cross section AWG2
Connection capacity rigid0.75 mm² ... 50 mm²
Connection capacity AWG18 ... 1/0
Connection capacity flexible0.75 mm² ... 35 mm²
Connection capacity AWG18 ... 2
2 conductors with same cross section, solid0.75 mm² ... 16 mm²
2 conductors with the same cross-section AWG rigid18 ... 6
2 conductors with same cross section, stranded0.75 mm² ... 10 mm²
2 conductors with the same cross-section AWG flexible18 ... 8

Dimensions

Width15.1 mm
Height50 mm
Depth on NS 3267 mm
Depth on NS 35/7,562 mm
Depth on NS 35/1569.5 mm

Material specifications

Colorgray
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed

Surge voltage test

Test voltage setpoint9.8 kV
ResultTest passed

Temperature-rise test

Requirement temperature-rise testIncrease in temperature ≤ 45 K
ResultTest passed
Short-time withstand current 35 mm²4.2 kA
Short-time withstand current 50 mm²6 kA
ResultTest passed

Power-frequency withstand voltage

Test voltage setpoint2.2 kV
ResultTest passed

Mechanical data

Open side panelNo

Mechanical strength

ResultTest passed

Attachment on the carrier

DIN rail/fixing supportNS 32/NS 35
Test force setpoint10 N
ResultTest passed

Test for conductor damage and slackening

Rotation speed10 rpm
Revolutions135
Conductor cross section/weight0.75 mm² / 0.4 kg
Conductor cross section/weight35 mm² / 6.8 kg
Conductor cross section/weight50 mm² / 9.5 kg
ResultTest passed

Needle-flame test

Time of exposure30 s
ResultTest passed

Ambient conditions

Ambient Temperature (Operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1

Mounting

Mounting TypeNS 35/7,5
Mounting TypeNS 35/15
Mounting TypeNS 32
Accessories
  • Phoenix Contact1004445
    1004445
    Warning label - WS 5-15
  • Phoenix Contact1004241
    1004241
    Warning label - WS 4-15
  • Phoenix Contact1024263
    1024263
    Single cover, for covering one terminal block, snap fit, cannot be labeled, color: transparent
  • Phoenix Contact0204084
    0204084
    STL 35/10, Step bracket, number of positions: 2, color: silver
  • Phoenix Contact0204107
    0204107
    Step bracket - STL 35/ 5
  • Phoenix Contact0204097
    0204097
    STL 35/16, Step bracket, number of positions: 2, color: silver
  • Phoenix Contact1302215
    1302215
    Separating plate - TS-K
  • Phoenix Contact3008096
    3008096
    Separating plate - TP-UK 35
  • Phoenix Contact0201333
    0201333
    Fixed bridge - FBI 2-15
  • Phoenix Contact0201278
    0201278
    Fixed bridge - FBI 3-15
  • Phoenix Contact0711302
    0711302
    Fixed bridge - FBI 5-15
  • Phoenix Contact0203166
    0203166
    Insertion bridge, pitch: 15.25 mm, number of positions: 2, color: gray
  • Phoenix Contact0205135
    0205135
    EB 10-15 - Insertion bridge, pitch: 15.25 mm, number of positions: 10, color: gray
  • Phoenix Contact0205119
    0205119
    EB 2-15 K/UK 35 - Insertion bridge, pitch: 15 mm, number of positions: 2, color: gray
  • Phoenix Contact0205106
    0205106
    EB 3-15 K/UK 35 - Insertion bridge, pitch: 15 mm, number of positions: 3, color: gray
  • Phoenix Contact0205096
    0205096
    EB 10-15 K/UK 35 - Insertion bridge, pitch: 15 mm, number of positions: 10, color: gray
  • Phoenix Contact0205232
    0205232
    SBH 2-15, Switching jumper, pitch: 15 mm, number of positions: 2, color: silver
  • Phoenix Contact1201002
    1201002
    NS 32 PERF 2000MM-VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
  • Phoenix Contact1201015
    1201015
    NS 32 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
  • Phoenix Contact0801733
    0801733
    NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0801681
    0801681
    NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1204119
    1204119
    NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1204122
    1204122
    NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact0801704
    0801704
    NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206421
    1206421
    DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206434
    1206434
    NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact0801762
    0801762
    NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206560
    1206560
    NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
  • Phoenix Contact1201730
    1201730
    NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1201714
    1201714
    NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0806602
    0806602
    NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
  • Phoenix Contact1204135
    1204135
    NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1201756
    1201756
    NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206599
    1206599
    NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206586
    1206586
    NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1201895
    1201895
    NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206573
    1206573
    NS 35/15 CAP - DIN rail end piece, for DIN rail NS 35/15
  • Phoenix Contact1201798
    1201798
    NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
  • Phoenix Contact0811972
    0811972
    Zack marker strip - ZB 15:UNBEDRUCKT
  • Phoenix Contact0824945
    0824945
    Zack marker strip - ZB 15 CUS
  • Phoenix Contact0811998
    0811998
    0811998 -
  • Phoenix Contact0311647
    0311647
    PS-MT Test plug, consisting of: metal part for 4 mm diameter
  • Phoenix Contact0311566
    0311566
    PS-IH WH - Insulating sleeve, number of positions: 1, color: white
  • Phoenix Contact0311579
    0311579
    Insulating sleeve, number of positions: 1, color: red
  • Phoenix Contact0311582
    0311582
    PS-IH BU - Insulating sleeve, number of positions: 1, color: blue
  • Phoenix Contact0311595
    0311595
    PS-IH YE - Insulating sleeve, number of positions: 1, color: yellow
  • Phoenix Contact0311605
    0311605
    PS-IH GN - Insulating sleeve, number of positions: 1, color: green
  • Phoenix Contact0311621
    0311621
    PS-IH GY - Insulating sleeve, number of positions: 1, color: gray
  • Phoenix Contact0311634
    0311634
    Insulating sleeve, number of positions: 1, color: black
  • Phoenix Contact0311618
    0311618
    PS-IH VT - Insulating sleeve, number of positions: 1, color: violet
  • Phoenix Contact3022218
    3022218
    CLIPFIX 35 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
  • Phoenix Contact3022276
    3022276
    CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
  • Phoenix Contact0800886
    0800886
    E/NS 35 N - End clamp, width: 9.5 mm, color: gray
  • Phoenix Contact1201442
    1201442
    E/UK - End bracket, Mounting on a DIN rail NS 32 or NS 35, material: PA, color: gray
  • Phoenix Contact1201413
    1201413
    E/UK 1 - End clamps, for supporting the ends of double-level and three-level terminal blocks, width: 10 mm, color: gray
  • Phoenix Contact0205290
    0205290
    Female test connector - PSB 6/5/6

Why Proax for Phoenix Contact 3008012?

Proax is an authorized distributor of Phoenix Contact 3008012 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size50
Best Sellersin Screw connection
  • Phoenix Contact3044102
    3044102
    UT 4 - Feed-through terminal block, nom. voltage: 1000 V, nominal current: 32 A, number of connections: 2, connection method: Screw connection, Rated cross section: 4 mm2, cross section: 0.14 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
  • Phoenix Contact3044128
    3044128
    UT 4-PE - Ground terminal, number of connections: 2, connection method: Screw connection, cross section: 0.14 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: green-yellow
  • Phoenix Contact3044814
    3044814
    UTTB 4 - Double-level terminal block, nom. voltage: 800 V, nominal current: 30 A, connection method: Screw connection, 1st and 2nd level, Rated cross section: 4 mm2, cross section: 0.14 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
  • Phoenix Contact3044076
    3044076
    UT 2,5 - Feed-through terminal block, nom. voltage: 1000 V, nominal current: 24 A, number of connections: 2, connection method: Screw connection, Rated cross section: 2.5 mm2, cross section: 0.14 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
  • Phoenix Contact3004362
    3004362
    UK 5 N - Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 2, connection method: Screw connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray
  • Phoenix Contact3046090
    3046090
    UT 4-HESILED 24 (5X20) - Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 24 V, nominal current: 6.3 A, connection method: Screw connection, Rated cross section: 4 mm2, cross section:  0.14 mm2- 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: black
  • Phoenix Contact3004171
    3004171
    UK 6,3-HESI - Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 6,3 x 32, nom. voltage: 500 V, nominal current: 10 A, number of positions: 1, connection method: Screw connection, Rated cross section: 1.5 mm2, cross section:  0.5 mm2- 16 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: black
  • Phoenix Contact3004265
    3004265
    Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 6,3 x 32, nom. voltage: 24 V, nominal current: 10 A, number of positions: 1, connection method: Screw connection, Rated cross section: 1.5 mm2, cross section:  0.5 mm2- 16 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: black
  • Phoenix Contact3044636
    3044636
    Double-level terminal block - UTTB 2,5
  • Phoenix Contact3044157
    3044157
    UT 6-PE - Ground terminal, number of connections: 2, connection method: Screw connection, cross section: 0.2 mm2 - 10 mm2, mounting type: NS 35/7,5, NS 35/15, color: green-yellow
Sold in quantities of 50

Not in stock

Request lead time or order—we'll ensure quick delivery

Phoenix Contact Availability
