Phoenix Contact 3004016
AllConnectorsTerminal blocksScrew connection

3004016

Official Distributor

By Phoenix Contact

SKU
PHX3004016
MPN
UK 5
Weight
0.022 kg
Series UK

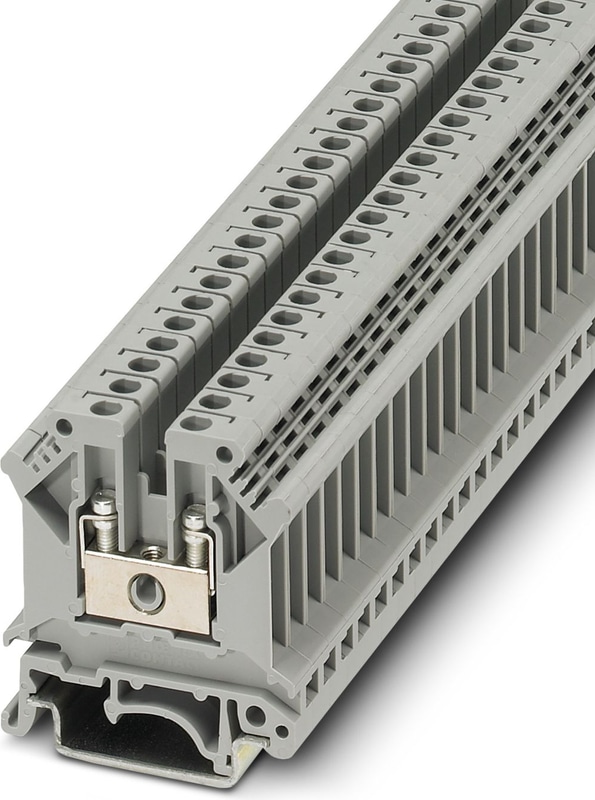

UK 5 - Feed-through terminal block

Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 2, connection method: Screw connection, cross section: 0.2 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray

Technical Specifications

Product properties

Number of Connections2
Number of rows1
Potentials1

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Electrical properties

Rated surge voltage8 kV
Maximum power dissipation for nominal condition1.02 W

Connection data

Number of connections per level2
Nominal cross section5 mm²
Rated cross section AWG10

Level 1 above 1 below 1

Screw threadM3
Tightening torque0.6 ... 0.8 Nm
Stripping length8 mm
Internal cylindrical gageA4
Conductor cross section rigid0.2 mm² ... 4 mm²
Cross section AWG24 ... 12 (converted acc. to IEC)
Conductor cross section flexible0.2 mm² ... 4 mm²
Conductor cross section, flexible [AWG]24 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.25 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.25 mm² ... 2.5 mm²
2 conductors with same cross section, solid0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.25 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 2.5 mm²
Nominal Current32 A
Nominal Voltage800 V

Dimensions

Width6.2 mm
Height42.5 mm
Depth on NS 3252 mm
Depth on NS 35/7,547 mm
Depth on NS 35/1554.5 mm

Material specifications

Colorgray
Flammability rating according to UL 94V2
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-40 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Relative insulation material temperature index (Elec., UL 746 B)125 °C

Surge voltage test

Test voltage setpoint9.8 kV
ResultTest passed

Temperature-rise test

Requirement temperature-rise testIncrease in temperature ≤ 45 K
ResultTest passed
Short-time withstand current 4 mm²0.48 kA
ResultTest passed

Power-frequency withstand voltage

Test voltage setpoint2 kV
ResultTest passed

Mechanical data

Open side panelYes

Mechanical strength

ResultTest passed

Attachment on the carrier

DIN rail/fixing supportNS 32/NS 35
Test force setpoint1 N
ResultTest passed

Test for conductor damage and slackening

Rotation speed10 rpm
Revolutions135
Conductor cross section/weight0.2 mm² / 0.2 kg
Conductor cross section/weight4 mm² / 0.9 kg
ResultTest passed

Needle-flame test

Time of exposure30 s
ResultTest passed

Ambient conditions

Ambient Temperature (Operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %

Mounting

Mounting TypeNS 35/7,5
Mounting TypeNS 35/15
Mounting TypeNS 32
Accessories
  • 3003020
    3003020
    D-UK 4/10 - End cover, depth: 35.9 mm, width: 1.8 mm, height: 42.5 mm, color: gray
  • 1004115
    1004115
    Warning label - WS 3- 6
  • 1004403
    1004403
    Warning label - WS 5- 6
  • 1004209
    1004209
    Warning label - WS 4- 6
  • 2303608
    2303608
    ZSR - Screw
  • 0201595
    0201595
    FB-150 METER - Cross connection rail, for fixed bridging of identical inputs and outputs, made of Cu, nickel-plated, 1 m long
  • 1024085
    1024085
    EA 5-WS - Single covers, for covering one terminal block, with black symbol (lightning flash) snap fit, color: transparent/yellow
  • 1024014
    1024014
    EA 5 - Cover, material: ABS, color: transparent
  • 0301547
    0301547
    Short-circuit connector - KSS 6
  • 0309523
    0309523
    Short-circuit connector - KSS 3- 6
  • 3001239
    3001239
    PS-UK 2,5 B/Z-6, Test plugs, color: red
  • 0201647
    0201647
    Reducing plug - RPS
  • 0204107
    0204107
    Step bracket - STL 35/ 5
  • 0204110
    0204110
    Step bracket - STL 10N/5N
  • 1302215
    1302215
    Separating plate - TS-K
  • 3003224
    3003224
    Partition plate - ATP-UK
  • 1007222
    1007222
    Marker card - SBS 6:UNBEDRUCKT
  • 1302338
    1302338
    IS-K 4 - Bridge bar isolator, color: gray
  • 0301505
    0301505
    Bridge - ISSBI 10- 6
  • 0202280
    0202280
    Bridge - LB 10-6 BU
  • 0202358
    0202358
    Bridge - LB 10-6 GY
  • 0202345
    0202345
    Bridge - LB 100-6 GY
  • 0202303
    0202303
    Bridge - LB 100-6 BU
  • 0202303
    0202303
    Bridge - LB 100-6 BU
  • 0203438
    0203438
    Fixed bridge - FBI 2- 6
  • 0203250
    0203250
    Fixed bridge - FBI 10- 6
  • 0201469
    0201469
    Fixed bridge, pitch: 6.2 mm, number of positions: 3, color: silver
  • 0201456
    0201456
    Fixed bridge - FB 2- 6-EX
  • 0201029
    0201029
    FB 5- 6, Fixed bridge, pitch: 6.2 mm, number of positions: 5, color: silver
  • 0201650
    0201650
    Fixed bridge - FBI 100- 6
  • 0201867
    0201867
    Fixed bridge - FBI 20- 6
  • 0201281
    0201281
    Fixed bridge - FB 10- 6-EX
  • 0201155
    0201155
    EB 2- 6 - Insertion bridge, pitch: 6.2 mm, number of positions: 2, color: gray
  • 0201142
    0201142
    EB 3- 6 - Insertion bridge, pitch: 6.2 mm, number of positions: 3, color: gray
  • 0201139
    0201139
    EB 10- 6 - Insertion bridge, pitch: 6.2 mm, number of positions: 10, color: gray
  • 2305538
    2305538
    Switching jumper - USBRJ 2-7
  • 2303239
    2303239
    Switching jumper - USBR 2-7
  • 0202316
    0202316
    Bridge - LB 100-6 RD
  • 0202293
    0202293
    Bridge - LB 10-6 RD
  • 1201002
    1201002
    NS 32 PERF 2000MM-VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
  • 1201015
    1201015
    NS 32 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
  • 0801733
    0801733
    NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • 0801681
    0801681
    NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • 1204119
    1204119
    NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • 1204122
    1204122
    NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • 0801704
    0801704
    NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • 1206421
    1206421
    DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • 1206434
    1206434
    NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • 0801762
    0801762
    NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • 1206560
    1206560
    NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
  • 1201730
    1201730
    NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • 1201714
    1201714
    NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • 0806602
    0806602
    NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
  • 1204135
    1204135
    NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • 1201756
    1201756
    NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • 1206599
    1206599
    NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • 1206586
    1206586
    NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • 1201895
    1201895
    NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • 1206573
    1206573
    NS 35/15 CAP - DIN rail end piece, for DIN rail NS 35/15
  • 1201798
    1201798
    NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
  • 1051003
    1051003
    Zack marker strip - ZB 6:UNBEDRUCKT
  • 0824992
    0824992
    Zack marker strip - ZB 6 CUS
  • 1051016
    1051016
    1051016 -
  • 1051032
    1051032
    Zack marker strip - ZB 6,LGS:GLEICHE ZAHLEN
  • 1051414
    1051414
    1051414 -
  • 1051430
    1051430
    Marker for terminal blocks - ZB 6,LGS:U-N
  • 0818085
    0818085
    Marker for terminal blocks - UC-TM 6
  • 0824589
    0824589
    Marker for terminal blocks - UC-TM 6 CUS
  • 0828736
    0828736
    Marker for terminal blocks - UCT-TM 6
  • 0201744
    0201744
    Test plugs - MPS-MT
  • 0201663
    0201663
    MPS-IH WH - Insulating sleeve, color: white
  • 0201676
    0201676
    MPS-IH RD - Insulating sleeve, color: red
  • 0201689
    0201689
    MPS-IH BU - Insulating sleeve, color: blue
  • 0201692
    0201692
    MPS-IH YE - Insulating sleeve, color: yellow
  • 0201702
    0201702
    MPS-IH GN - Insulating sleeve, color: green
  • 0201728
    0201728
    MPS-IH GY - Insulating sleeve, color: gray
  • 0201731
    0201731
    MPS-IH BK - Insulating sleeve, color: black
  • 3022218
    3022218
    CLIPFIX 35 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
  • 3022276
    3022276
    CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
  • 0800886
    0800886
    E/NS 35 N - End clamp, width: 9.5 mm, color: gray
  • 1201442
    1201442
    E/UK - End bracket, Mounting on a DIN rail NS 32 or NS 35, material: PA, color: gray
  • 1201413
    1201413
    E/UK 1 - End clamps, for supporting the ends of double-level and three-level terminal blocks, width: 10 mm, color: gray
  • 0201304
    0201304
    Female test connector - PSBJ 3/13/4
  • 0601292
    0601292
    Female test connector - PSB 3/10/4
