Name: 3002568
Brand: Phoenix Contact
SKU: PHX3002568

Official Distributor

By Phoenix Contact

SKU

MPN

UK 3-RETURN BU

Weight

0.009 kg

This product is Not Cancellable/Not Returnable

Series UK

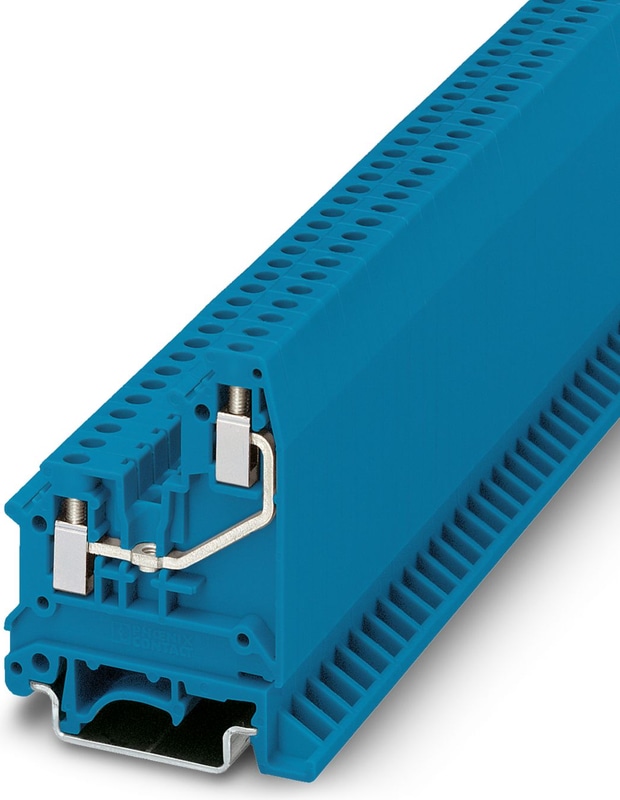

UK 3-RETURN BU - Feed-through terminal block

Universal terminal block with screw connection, cross section: 0.2 - 2.5 mm2, AWG: 24 - 12, width: 5.2 mm, color: Blue

Product properties

Number of Connections	2
Number of rows	2
Potentials	1

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage

6 kV

Connection data

Number of connections per level

Level 1 above 1 below 1

Screw thread	M3
Tightening torque	0.6 ... 0.8 Nm
Stripping length	8 mm
Connection in acc. with standard	IEC / EN
Conductor cross section rigid	0.2 mm² ... 4 mm²
Cross section AWG	24 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]	24 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 1.5 mm²
Cross-section with insertion bridge, rigid	4 mm²
Cross-section with insertion bridge, flexible	2.5 mm²
2 conductors with same cross section, solid	0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible	0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.25 mm² ... 1 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1 mm²
Nominal Current	32 A
Maximum Load Current	32 A (with 4 mm² conductor cross section)
Nominal Voltage	500 V
Connection in acc. with standard	UL
Cross section AWG	30 ... 12 (converted acc. to IEC)
Nominal Current	20 A
Nominal Voltage	300 V
Connection in acc. with standard	CSA
Nominal Current	25 A
Nominal Voltage	300 V

Dimensions

Width

5.2 mm

Material specifications

Color	blue
Flammability rating according to UL 94	V2
Insulating material group	I
Insulating material	PA

Mechanical data

Open side panel

Yes

Standards and Regulations

Connection in acc. with standard	IEC / EN
Connection in acc. with standard	UL
Connection in acc. with standard	CSA

Mounting

Mounting Type	NS 35/7,5
Mounting Type	NS 35/15
Mounting Type	NS 32
