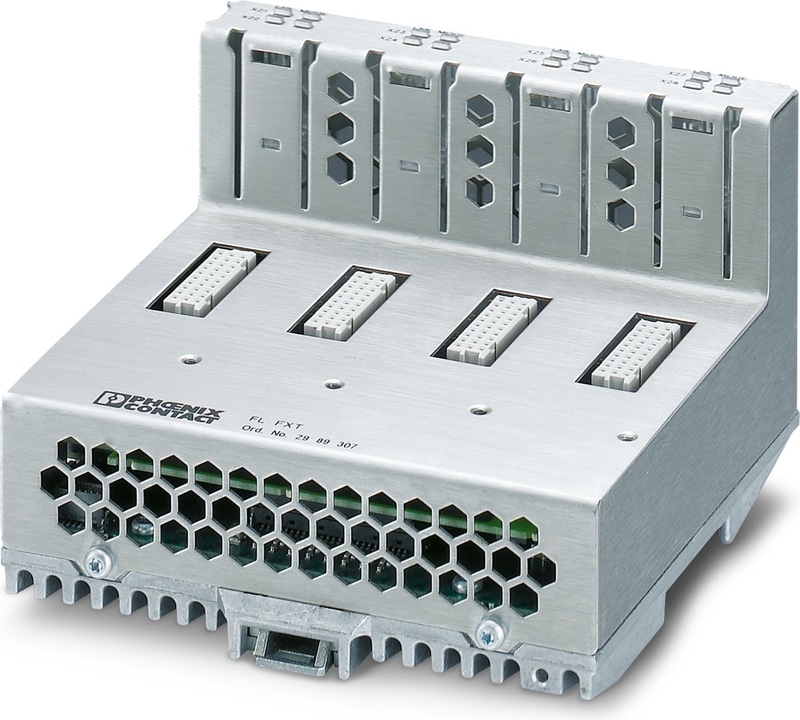

FL FXT - Extension module
Extension module for the FL SWITCH GHS... Gigabit Modular Switch, extension by up to 8 Ethernet ports
- Optional Layer 3 functions (static routing) can be activated
- Connection of Gigabit fiberglass via FL SFP plug-in modules
- Security in the automation network according to IEEE 802.1X
- Connection of connection media that can be assembled in the field, such as POF, HCS, and GI HCS
- Quick and easy local configuration options with the new operator/display interface
Technical Specifications
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product properties
| Type | Stand-Alone |
Functionality
| Basic Functions | Extension module for Modular Managed Switch |
Electrical properties
| Transmission medium | Copper |
| Transmission medium | FO |
Supply
| Typical current consumption | via head station |
Ethernet
| Connection Method | via interface module |
| Note on the connection method | Max. 4 interface modules |
| Transmission Speed | 10/100 Mbps (full duplex) |
| Transmission physics | multi-mode fiberglass |
| Transmission physics | Single-mode fiberglass |
| Transmission physics | POF-SCRJ |
| Transmission physics | GI-HCS fibers |
| Transmission physics | Copper |
| Transmission physics | PoE |
| Signal LEDs | Data receive, link status |
| No. of channels | 2 (Per interface module) |
Signaling
| Status display | LEDs for media modules |
Dimensions
| Width | 127 mm |
| Height | 125 mm |
| Depth | 115 mm |
Material specifications
| Housing Material | PA 6.6 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 55 °C (non-condensing) |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Vibration (Operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
EMC data
| Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B |
| Conformance with EMC directives | IEC 61000-4-3 (immunity to radiated interference) Criterion A |
| Conformance with EMC directives | IEC 61000-4-4 (burst) Criterion A |
| Conformance with EMC directives | IEC 61000-4-5 (surge) Criterion A |
| Conformance with EMC directives | IEC 61000-4-6 (immunity to conducted interference) Criterion A |
| Conformance with EMC directives | EN 55022 (emitted interference) Class A |
| Noise immunity | EN 61000-6-2:2005 |
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
| Noise emission | EN 61000-6-3/-4 |
Standards and Regulations
| Free from substances that could impair the application of coating | In acc. with VW specification |
Mounting
| Mounting Type | DIN rail mounting |
Accessories
FL IF 2TX VS-RJ-F - Interface module for connecting twisted pair cable, RJ45, connection direction forward- FL IF 2TX VS-RJ-D - Interface module for connecting twisted pair cable, RJ45, connection direction downward
FL IF 2FX SC-F - Fiber optic interface module for connecting 100 Base-FX multi-mode glass fibers (1300 nm), SC, connection direction forward- FL IF 2FX SC-D - Fiber optic interface module for connecting 100 Base-FX multi-mode glass fibers (1300 nm), SC, connection direction downward
FL IF 2FX SM SC-D - FO interface module for connecting 100 Base-FX single mode glass fibers (1300 nm), SC, connection direction downward
FL IF 2FX ST-D - Fiber optic interface module for connecting 100 Base-FX multi-mode glass fibers (1300 nm), ST, connection direction downward
FL IF 2POF SCRJ-D - Fiber optic interface module for connecting 100 Base-FX POF/PCF fibers (650 nm), SC-RJ, connection direction downward
FL IF 2PSE-F - Interface module for connecting PoE twisted pair ports, RJ45, connection direction forward
