Series UMK-PVB
UMK- PVB 6 - Potential distributors

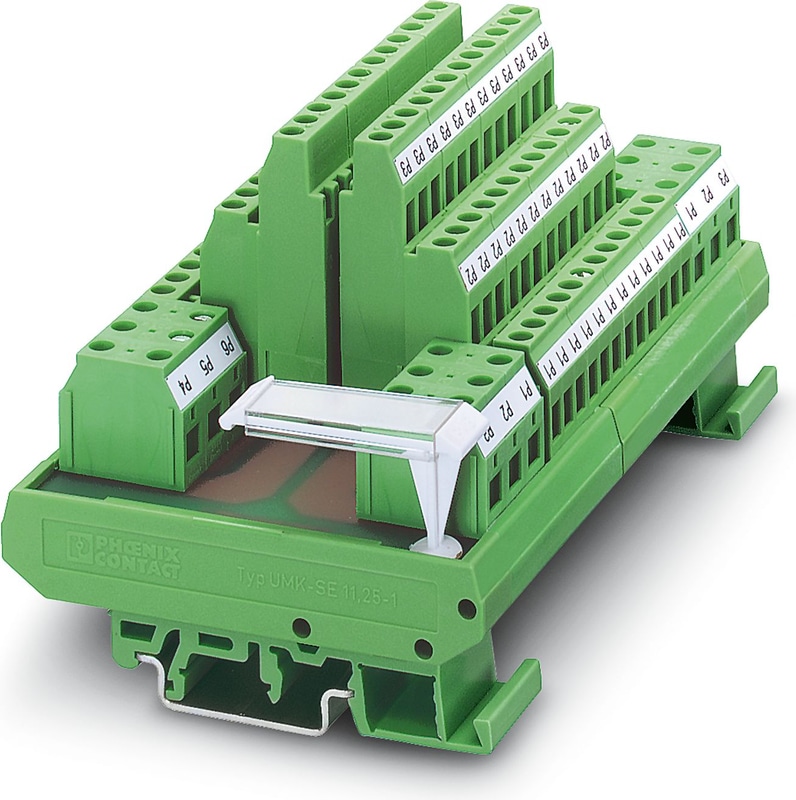

VARIOFACE module, with six equipotential busbars (P1, P2, P3, P4, P5, P6) for potential distribution, for mounting on NS 35/7.5 or NS 32
- Consecutive numbering
- Separate supply
- Two potential levels
Technical Specifications
Notes
| Notes on operation | The necessary requirements for insulation (basic insulation or reinforced insulation) from adjacent modules (in DIN-rail direction) must be realized by applying suitable measures (e. g., partition plates). |
| Notes on operation | Ensure that the supply voltage of the device has a common reference potential. |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Product properties
| Product family | VARIOFACE |
| Potential connections | Per potential (P1...P6) 2 power/12 distributor terminal blocks |
Insulation characteristics
| Insulation | Functional insulation |
| Insulation | Functional insulation |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 250 V AC/DC |
| Max. current carrying capacity per branch | 16 A |
| Max. total current of all branches | 16 A (per potential) |
| Rated Insulation Voltage | 250 V |
| Rated surge voltage | 2.5 kV |
Input data
| Potential connections | Per potential (P1...P6) 2 power/12 distributor terminal blocks |
Service Entrance
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of Connections | 6 |
| Conductor cross section rigid | 0.2 mm² ... 6 mm² |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 10 |
Distribution
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Width | 124 mm |
| Height | 77 mm |
| Depth | 71 mm |
Material specifications
| Color | green (RAL 6021) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | EN 60664-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | any |
Why Proax for Phoenix Contact 2972136?
Proax is an authorized distributor of Phoenix Contact 2972136 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
